I dont think this is supposed to happen?...

Post by Brigsygtt »

Went over a speedbump yesterday and the rear of my xantia felt very firm :?

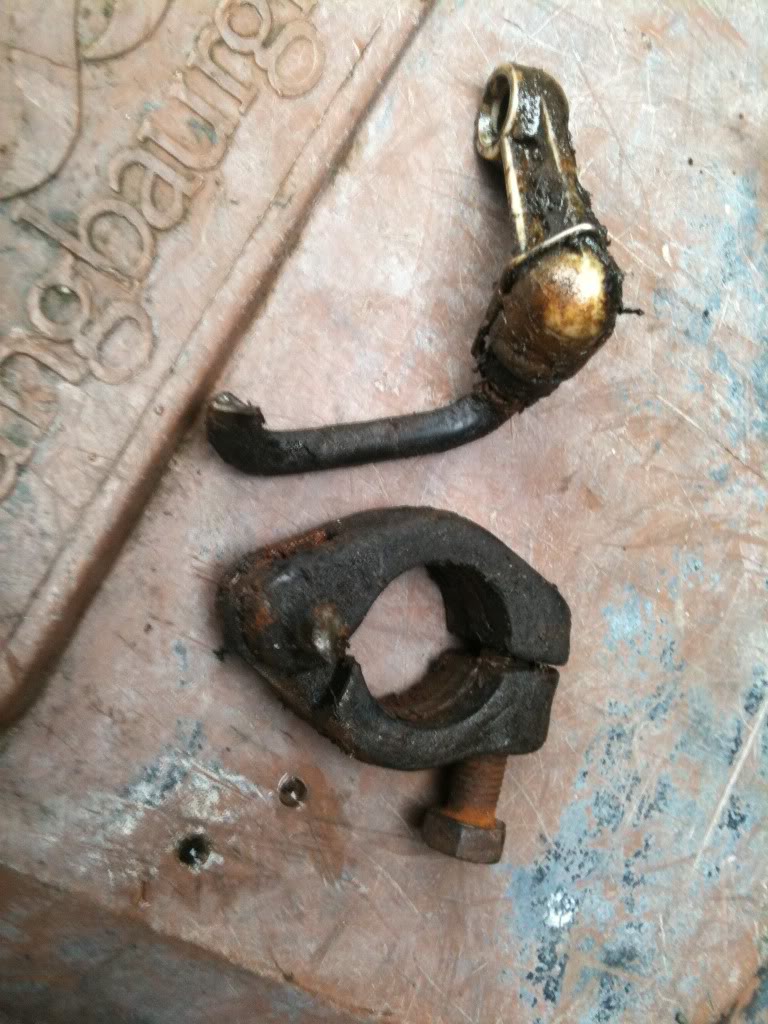

Pulled up a few of hundred yards away and the rear was on the bumpstops, i initially thought the rear dogbone had come off even though the height corrector is working perfectly...jacked it up and found the metal clamp on the arb has failed?!


The thing that bugs me is my rear height corrector is working perfectly, if a little too sloppy, the rear spheres are fine.

All i can think of is when i bought the car, the rear spheres were ruptured and height corrector was solid? possibly has been overstressed in the past?

Anyway have changed it for another off my old xantia, fun & games on your back in the snow :lol:
97 Xantia 1.9 td lx with a/c (Daily, 172K, FOR SALE)
98 Xantia Hdi Lx with a/c (105k)
97 Renault Extra (c1j turbo 230+hp, 12.88@106)
91 Renault 5 Gt turbo (68k minter)
User avatar
Xaccers
Posts: 7654
Joined: 07 Feb 2007, 23:46
Location: Milling around Milton Keynes
My Cars:
x 184

Post by Xaccers »

That there is a metal clip holding the dog bone on would suggest that the rear corrector links have seized at some point in the past causing the dog bone to pop off, so someone's locked it on, resulting in the arm to the ARB clamp snapping.
1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)

DIY sphere tool
Brigsygtt
Posts: 289
Joined: 12 Jan 2009, 18:19
Location: Teesside
My Cars:
x 1

Post by Brigsygtt »

The part off my spares xantia has the metal clip on too, isnt it a standard part? The original must have popped off in the past as the plastic dogbone was very sloppy.
97 Xantia 1.9 td lx with a/c (Daily, 172K, FOR SALE)
98 Xantia Hdi Lx with a/c (105k)
97 Renault Extra (c1j turbo 230+hp, 12.88@106)
91 Renault 5 Gt turbo (68k minter)
User avatar
Xaccers
Posts: 7654
Joined: 07 Feb 2007, 23:46
Location: Milling around Milton Keynes
My Cars:
x 184

Post by Xaccers »

Interesting, I've not noticed it on any of mine, but looking at photos online some have it, some don't.
Did also find:
http://www.eurocarcare.net/hydraulics.html

Which has the replacement part for just over £20
1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)

DIY sphere tool
User avatar
myglaren
Forum Admin Team
Posts: 25361
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Post by myglaren »

Same part failed on mine. Replacement was £12 although it was a few years ago.
andmcit
Posts: 4299
Joined: 03 Mar 2005, 17:59
Location: Swansea - South Wales
My Cars:
x 30

Post by andmcit »

I've seen the same failure on one of mine too. It seems some cars do and
others don't have the securing spring on the dogbone which would suggest
it was fitted new by Citroen.

Andrew
User avatar
VertVega
Posts: 1178
Joined: 01 Nov 2008, 19:39
Location: Province nordique de l'Union européenne
My Cars:
x 13

Post by VertVega »

When I have seen the pic above I remembered that I have seen/read a similar post on this problem.
Here is also a pic sent by slim123 in FCF (year 2006) ---> Citroën Xantia Suspension/Brake issues.

Xac thanks for the link, It's good to know that Saloon and Estate brackets have different diameters.
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
citronut
Posts: 10937
Joined: 29 Apr 2005, 00:46
Location: United Kingdom east sussex
My Cars:
x 92

Post by citronut »

here is trade price and part No. for saloon and estate W/O H/A,

Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
0000529114 CONTROL LEVER 22.92 GBP 26.93 GBP 26.93 GBP

0000529113 CONTROL LEVER 22.92 GBP 26.93 GBP 26.93 GBP



the first one is for estate's and is for 23mm ant roll bar,

the second for saloon and is for 22mm anti roll bar,


and i also have seen these faill in the same way and the last one i fitted was around £12 quid to


regards malcolm
citroenxm
Posts: 8061
Joined: 30 Dec 2004, 23:10
Location: Somewhere in North Wales, Anglesey
My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto

2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising
x 70

Post by citroenxm »

Early and Later S1 Xantias have different Diamamiter anti roll bars.

I think around P reg 1996/7 the ARB was increased on the Hatch's, as Ive had trouble fitting an early clamp to a later hatch.

Estates always had the larger ARB due to pay load capacities.

Fracture of the Clamp Rod IS siezure of the Height corrector LINKAGES. You will need to remove the unit from the car, and free them up perfectly with a lot of WD (Or Equivilent) and working them untill they are free.

You can get the linkage house off and leave the Height Corrector in place.

Paul
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project

A very sad...
1994 XM 2.1 d auto
citronut
Posts: 10937
Joined: 29 Apr 2005, 00:46
Location: United Kingdom east sussex
My Cars:
x 92

Post by citronut »

i have just re/checked n service citroen and MK1 and 2 saloons are all 22mm and estates are all 23mm, the only other one listted which is 28mm is for hydractive,


regards malcolm
richardd1652
Posts: 4
Joined: 15 Oct 2010, 14:25
Location:
My Cars:

Post by richardd1652 »

My last 2.1 Exclusive did just the same on the way back from London to Yorkshire,what a pain.Dead easy fix though.
Richard.
1986 Citroen visa 11RE
1985 Citroen BX Digit
1973 DSafari (scrapper)
2007 Vw Golf
citronut
Posts: 10937
Joined: 29 Apr 2005, 00:46
Location: United Kingdom east sussex
My Cars:
x 92

Post by citronut »

you also have to set the clamp to the corect position, as rotating this clamp is how you set up/adjusts the ground clearance,

regards malcolm
Xantidote
Posts: 1146
Joined: 03 May 2009, 22:07
Location: Merseyside
My Cars:
x 5

Post by Xantidote »

Brigsy:

Could it be that the height control unit has seized up sometime in the past, or previous spheres were very low on gas/ruptured, maybe then initiating a stress crack in the link, and which finally gave up when you went over the speed bump?

Edit:

Does the fracture all look bright metal, or is a bit of it rusty?
Martin

1995 Xantia TDLX (deceased :( )
andmcit
Posts: 4299
Joined: 03 Mar 2005, 17:59
Location: Swansea - South Wales
My Cars:
x 30

Post by andmcit »

From studying the good picture above I'd say the clamp had a crack in the
actuation arm that allowed the corrosion in which has weakened it to the
point it's given up acting onto the HC - there isn't much clean or shiny
looking metal to see anyhow.

Andrew
