Swapping diffs
Not really a Citroen question but applies to the ML5 box used in some Xantias so is applicable to them too.
Is it possible to swap a diff in an ML5T? Obviously, much work is involved but can it be done, once dismantled is the diff simply bolted off and the new bolted on?
The reason I ask is a bit of research has shown the ML6 box used in certain Peugeots and I'm sure a Citroen or two uses the same gear ratios as the Coupé's ML5T but the 6 speed boxes have a lower final drive. If the ML6 could be fitted with the Coupés diff it would give the Coupé an extra, taller, gear.
Just idle thinking at the moment due to a thread posted on the Coupé forum.
Is it possible to swap a diff in an ML5T? Obviously, much work is involved but can it be done, once dismantled is the diff simply bolted off and the new bolted on?
The reason I ask is a bit of research has shown the ML6 box used in certain Peugeots and I'm sure a Citroen or two uses the same gear ratios as the Coupé's ML5T but the 6 speed boxes have a lower final drive. If the ML6 could be fitted with the Coupés diff it would give the Coupé an extra, taller, gear.
Just idle thinking at the moment due to a thread posted on the Coupé forum.
Toby
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
- CGATCX25GTITURBO
- Posts: 284
- Joined: 21 Nov 2010, 10:58
- Location: IN FRONT OF THE LAP TOP Residing in Hull, East Yorks
- My Cars:
- x 9
Don't the answer to your question regarding the gearbox types you list
it's not the diff to swap to get the ratios. It will be the crown and pinion.

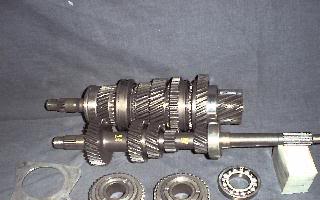

I rebuilt my CX with a hybrid gearbox GTI turbo 1 with a CX T2 diesel 'diff' it is actually the crown wheel and pinion 'ouptut shaft 'that are swapped.
All the gears and syncros in my boxes where swappable on the shafts.
Unless the driveshaft splines are different why wouldn't just try fit the gearbox?
GTI 6 link
these guys report the ML6 as being bigger?
it's not the diff to swap to get the ratios. It will be the crown and pinion.
I rebuilt my CX with a hybrid gearbox GTI turbo 1 with a CX T2 diesel 'diff' it is actually the crown wheel and pinion 'ouptut shaft 'that are swapped.
All the gears and syncros in my boxes where swappable on the shafts.
Unless the driveshaft splines are different why wouldn't just try fit the gearbox?
GTI 6 link
these guys report the ML6 as being bigger?
Neil aka CGAT
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
- CitroJim
- A very naughty boy
- Posts: 49626
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6183
- Contact:
It might be possible but it's a big job to strip the 'box to do the job.
To do the job properly not only would the crownwheel need to be swapped but the output shaft as well as the pinion is part of the shaft and cannot be removed. You'd need the shaft and transfer all your gears and synchro hubs to it and that's not an easy job.
The ML5 is a grown up MA to all intents and purposes and will be a tricky 'box to strip, needing several types of pullers and a press.
I's go for a complete 'box Toby. Get six speeds then!
Yes, it will be longer to accommodate the sixth gear pinion set on the end in the tin cover. It will fit but you may experience clearance problems on full-lock. 205GTi drivers have had this issue when fitting a 306gti6 (a BE derivative rather than an ML_ gearbox.
To do the job properly not only would the crownwheel need to be swapped but the output shaft as well as the pinion is part of the shaft and cannot be removed. You'd need the shaft and transfer all your gears and synchro hubs to it and that's not an easy job.
The ML5 is a grown up MA to all intents and purposes and will be a tricky 'box to strip, needing several types of pullers and a press.
I's go for a complete 'box Toby. Get six speeds then!
Yes, it will be longer to accommodate the sixth gear pinion set on the end in the tin cover. It will fit but you may experience clearance problems on full-lock. 205GTi drivers have had this issue when fitting a 306gti6 (a BE derivative rather than an ML_ gearbox.
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
- spider
- Posts: 3949
- Joined: 05 Jan 2010, 14:28
- Location: Derby.
- My Cars: Soon, I hope...
- x 77
- Contact:
Ah yes, I do remember the six speed unit is longer.
I can also tell you the 306GTi6 has an (to me at least) appalling lock angle to accommodate this box the rack on these is different. Makes tight three point turns and (tight) reverse parallel parking annoying to say the least.
Not sure what its like when retro fitted to something else though. I would guess you could catch it if you are not careful. Food for thought.
I can also tell you the 306GTi6 has an (to me at least) appalling lock angle to accommodate this box the rack on these is different. Makes tight three point turns and (tight) reverse parallel parking annoying to say the least.
Not sure what its like when retro fitted to something else though. I would guess you could catch it if you are not careful. Food for thought.
Andy.
91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
As I say, its all idle thinking at the moment. My drive today confirmed that the Coupé does rev a tad too high for my liking on the motorway.
Jim, thanks for describing what is involved. I'm not contemplating it in the anywhere near future, as said it was just a thread that got me thinking. I knew it would be a tricky job.
As for the steering lock issue, I was aware of the issues with the BE3/6 fitted to the GTi-6 and those retrofitting this box to the 306. I'm not sure if the ML6 would have an effect on the steering lock, all I know is the Coupé's turning circle isn't brilliant as it is.
The ML6 box, whichever vehicle it is fitted to, has a lower final drive than the Coupé meaning that 6th would be pretty much the same as the current 5th in the ML5. It would also mean I'd have a ridiculously (and uselessly) short 1st.CGATCX25GTITURBO wrote:Unless the driveshaft splines are different why wouldn't just try fit the gearbox?
Jim, thanks for describing what is involved. I'm not contemplating it in the anywhere near future, as said it was just a thread that got me thinking. I knew it would be a tricky job.
As for the steering lock issue, I was aware of the issues with the BE3/6 fitted to the GTi-6 and those retrofitting this box to the 306. I'm not sure if the ML6 would have an effect on the steering lock, all I know is the Coupé's turning circle isn't brilliant as it is.
Toby
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
Which gives on lookers more of a chance to view the lovely body (the cars) styling & design while a three point turn is being executed!Tobi HDi wrote:As for the steering lock issue, I was aware of the issues with the BE3/6 fitted to the GTi-6 and those retrofitting this box to the 306. I'm not sure if the ML6 would have an effect on the steering lock, all I know is the Coupé's turning circle isn't brilliant as it is.
ACTIVA
The car that looks like a family car, but has special secret hidden abilities.
The car that looks like a family car, but has special secret hidden abilities.
- CGATCX25GTITURBO
- Posts: 284
- Joined: 21 Nov 2010, 10:58
- Location: IN FRONT OF THE LAP TOP Residing in Hull, East Yorks
- My Cars:
- x 9
are you sure the engine your coupling it up to will have the power to pull the desired ratio change? otherwise it could just become too over geared.Toby_HDi wrote:As I say, its all idle thinking at the moment. My drive today confirmed that the Coupé does rev a tad too high for my liking on the motorway.
The ML6 box, whichever vehicle it is fitted to, has a lower final drive than the Coupé meaning that 6th would be pretty much the same as the current 5th in the ML5. It would also mean I'd have a ridiculously (and uselessly) short 1st.CGATCX25GTITURBO wrote:Unless the driveshaft splines are different why wouldn't just try fit the gearbox?
Jim, thanks for describing what is involved. I'm not contemplating it in the anywhere near future, as said it was just a thread that got me thinking. I knew it would be a tricky job.
As for the steering lock issue, I was aware of the issues with the BE3/6 fitted to the GTi-6 and those retrofitting this box to the 306. I'm not sure if the ML6 would have an effect on the steering lock, all I know is the Coupé's turning circle isn't brilliant as it is.
The reason I put the diesel set up in is beacause it was reving out in top too easy
Neil aka CGAT
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
Yes,
The ML6 fitted to the 407 and 607 petrol V6 (same engine as my Coupé) or the petrol 2.2 have exactly the same ratios as the Coupé's ML5 but a different final drive - hence my question about swapping it, which would mean I keep my current 5 ratios and add a taller 6th.
The ML6 fitted to the 407 and 607 petrol V6 (same engine as my Coupé) or the petrol 2.2 have exactly the same ratios as the Coupé's ML5 but a different final drive - hence my question about swapping it, which would mean I keep my current 5 ratios and add a taller 6th.
Toby
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
- CGATCX25GTITURBO
- Posts: 284
- Joined: 21 Nov 2010, 10:58
- Location: IN FRONT OF THE LAP TOP Residing in Hull, East Yorks
- My Cars:
- x 9
there are those saying don't fit the ML6 the ML5 is stronger
I never listened either
I never listened either
Neil aka CGAT
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
Toby, I think you're getting 'final drive' and 'top gear' confused.
The final drive ratio is the crownwheel and pinion ratio (which is often called the diff ratio, as the crownwheel and diff are built as a unit).
Top gear is the last gear you select i.e fifth on an ML5
The new trend for 6-speed boxes is to introduce a high top gear in order to get better fuel economy at high cruising speeds.
So, 6th gear is always higher than top gear on a 5-speed box, like for like.
Using the diesel ML5 as an example, the gear ratios are generally the same, first through fifth - fifth is 0.61 (31:51) - it's the final drive (diff) ratio that's changed, depending on the model. For example, the Expert van uses a 5.07 (71:14) final drive, the C5 2.0 HDi 110 uses 4.06 (65:16) and the 2.2 HDi uses 3.94 (67:17)
The diesel ML6C has either a 3.94 or 4.18 final drive, but uses a higher 0.53 6th gear.
As CitroJim says, with the pinion being machined into the output shaft, it's a complete gearbox strip and output shaft swap to change the final drive ratio. Better to swap gearboxes really. However, again, the difference is in the bellhousing, not the gearbox case. As far as I can tell, putting an ML5 onto a different model is a matter of swapping the bellhousings and using whichever gearbox has the correctly toothed pinion gear to suit your crownwheel gear.
Incidentally, the petrol gearboxes use lower ratios throughout the gearbox (V6 Coupe fifth gear is 0.733 - 33:45) as petrol engines rev higher than diesels
The final drive ratio is the crownwheel and pinion ratio (which is often called the diff ratio, as the crownwheel and diff are built as a unit).
Top gear is the last gear you select i.e fifth on an ML5
The new trend for 6-speed boxes is to introduce a high top gear in order to get better fuel economy at high cruising speeds.
So, 6th gear is always higher than top gear on a 5-speed box, like for like.
Using the diesel ML5 as an example, the gear ratios are generally the same, first through fifth - fifth is 0.61 (31:51) - it's the final drive (diff) ratio that's changed, depending on the model. For example, the Expert van uses a 5.07 (71:14) final drive, the C5 2.0 HDi 110 uses 4.06 (65:16) and the 2.2 HDi uses 3.94 (67:17)
The diesel ML6C has either a 3.94 or 4.18 final drive, but uses a higher 0.53 6th gear.
As CitroJim says, with the pinion being machined into the output shaft, it's a complete gearbox strip and output shaft swap to change the final drive ratio. Better to swap gearboxes really. However, again, the difference is in the bellhousing, not the gearbox case. As far as I can tell, putting an ML5 onto a different model is a matter of swapping the bellhousings and using whichever gearbox has the correctly toothed pinion gear to suit your crownwheel gear.
Incidentally, the petrol gearboxes use lower ratios throughout the gearbox (V6 Coupe fifth gear is 0.733 - 33:45) as petrol engines rev higher than diesels
Thanks fynnbar.
I hadn't got them confused.
As you rightly point out, the final drive is different. The actual 1st to 5th ratios themselves on certain ML6 boxes and my ML5 box are exactly the same. The whole point of the ML6 box is for that longer 6th
Fitting a complete box would be nice and would be the simpler option but it would be pointless, as with the different final drive of the ML6, it would mean that the 6th gear would be no longer than the 5th of my current ML5.
I hadn't got them confused.
As you rightly point out, the final drive is different. The actual 1st to 5th ratios themselves on certain ML6 boxes and my ML5 box are exactly the same. The whole point of the ML6 box is for that longer 6th
Fitting a complete box would be nice and would be the simpler option but it would be pointless, as with the different final drive of the ML6, it would mean that the 6th gear would be no longer than the 5th of my current ML5.
Toby
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
Previous:
2004 Peugeot 407 HDi 138 SE Luxury Pack
2001 S2 Xantia HDi 110 SX
2001 Peugeot 406 V6 Coupé
1998 S2 Xantia Activa
2000 S2 Xantia HDi 110 SX
1999 Peugeot 406 2.0 16v Estate
- CGATCX25GTITURBO
- Posts: 284
- Joined: 21 Nov 2010, 10:58
- Location: IN FRONT OF THE LAP TOP Residing in Hull, East Yorks
- My Cars:
- x 9
can you just swap the 5th gear for the 6th on the end of the shafts? if it is just an over drive you seek? I'm not familiar with the box so I don't
Neil aka CGAT
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
1986 CX25 GTI TURBO 1 SERIES 2 'CGAT'
1998 XANTIA 19TD ESTATE
1987 BX19 GTI 8V
2012 Citroen DS3
1997 600 Bandit
2000 ZX12R from new
1989 CX GTI Turbo 62k miles in a barn since 2001, project started 2023.
Indeed, I'm quite fond of the current 5th though as at 60mph ish it is right where the VVT kicks in.
It is just when you settle down for a cruise at 70 that it could do with revving slightly lower. It would basically just mean adding the 6th gear on to what I already have.
As I mentioned anyway, it was all idle talk at this stage and I was merely curious as to what would be involved. Its not something I'm considering, at the moment.
It is just when you settle down for a cruise at 70 that it could do with revving slightly lower. It would basically just mean adding the 6th gear on to what I already have.
As I mentioned anyway, it was all idle talk at this stage and I was merely curious as to what would be involved. Its not something I'm considering, at the moment.
