306 aux belt
Moderator: RichardW
306 aux belt
Hello, I am trying to change an alternator on a Sreg pug306 1.9 diesel PAS. It has eccentric belt tensioner...I cant undo the allun hex in the centre/off centre...I have been bashing away with impact driver and am now begining to damage it. Am I missing something...is it left thread? Any help would be really gratefully recieved.. cheers.
hi and welcome
you may not need to release the manul adjuster, as you should also have a spring loaded tensioner which has a 3/8th drive square hole in its mounting arm,
sometime it is necesery to place a jack under the engine and remove the top engine mount to get better access, or at least from the top anyway,
whilst your in there look at the angle this tensioner is sitting, because it is quite common for its mountting arm bearing to be shot, this will cause it to lean over then in turn can allow the aux belt to fail and go up inside the cam belt area, which will also cause that to fail,
regards malcolm
you may not need to release the manul adjuster, as you should also have a spring loaded tensioner which has a 3/8th drive square hole in its mounting arm,
sometime it is necesery to place a jack under the engine and remove the top engine mount to get better access, or at least from the top anyway,
whilst your in there look at the angle this tensioner is sitting, because it is quite common for its mountting arm bearing to be shot, this will cause it to lean over then in turn can allow the aux belt to fail and go up inside the cam belt area, which will also cause that to fail,
regards malcolm
no worrys
the tensioner is down the end of the enngine and along side the chassis rail, and on a XANTIA its the one just below the hydralic pump which from memory this is situated were your power steering pump is, so the tensioner just below that,
you get at the 3/8th square hole down between the engine and chassis rail,
if you have a mirror and a tourch you should be able to fine it,
regards malcolm
the tensioner is down the end of the enngine and along side the chassis rail, and on a XANTIA its the one just below the hydralic pump which from memory this is situated were your power steering pump is, so the tensioner just below that,
you get at the 3/8th square hole down between the engine and chassis rail,
if you have a mirror and a tourch you should be able to fine it,
regards malcolm
306 aux belt
thanks again for that, will have a go and get back to you, cheers mate...
PS can you attach pics to these forum posts, it could really help?
PS can you attach pics to these forum posts, it could really help?
- myglaren
- Forum Admin Team
- Posts: 25370
- Joined: 02 Mar 2008, 13:30
- Location: Washington
- My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX - x 4889
Re: 306 aux belt
Yes!pug-nut wrote:thanks again for that, will have a go and get back to you, cheers mate...
PS can you attach pics to these forum posts, it could really help?
Please limit them to max 700px wide though.
-
- (Donor 2020)
- Posts: 742
- Joined: 17 Apr 2008, 22:39
- Location: Clydebank, Near Glasgow.
- My Cars:
- x 2
Are you sure this one has a spring loaded tensioner? As my 405 didn't, and as I recall the belt I bought also did the 306. The tensioner bolt on mine was also super tight, but came off without too much fuss. Probably a paranoid garage has whacked it on worried that it would come loose Have you tried heating it a bit? Plusgas/WD40? Could you get a set of mole grips in there?
'96 405 1.6 GLX with 306 GTI engine on Cat cams @ 195bhp
'05 RenaultSport Clio 182 Cup, 102k
'97 406 1.9TD, 314k.
'05 RenaultSport Clio 182 Cup, 102k
'97 406 1.9TD, 314k.
to citronut
do appreciate your further time on this, I have attempted to locate sprung tensioner but no luck.... I have uploaded pictures at:
http://s1088.photobucket.com/home/pug-nut/index
do my labels match what you've said or am I missing still something? As yet I cant find any tensioner arm or 3/8" hole between engine and chassis
all the best..
http://s1088.photobucket.com/home/pug-nut/index
do my labels match what you've said or am I missing still something? As yet I cant find any tensioner arm or 3/8" hole between engine and chassis
all the best..
to evilally
thanks, have been soaking overnight, I will return to hitting shortly!! ug
to myglaren
have tried to link photo bucket site to posting on forum but could not follow instruction because the thumbnail/screenshot: "photobucket posting options" is not anything like the screen I get. Check following link:
http://s1088.photobucket.com/home/pug-nut/index
could you identify which section is set to allow links to forums?
Thanks, p-n.
http://s1088.photobucket.com/home/pug-nut/index
could you identify which section is set to allow links to forums?
Thanks, p-n.
- CitroJim
- A very naughty boy
- Posts: 49534
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6163
- Contact:

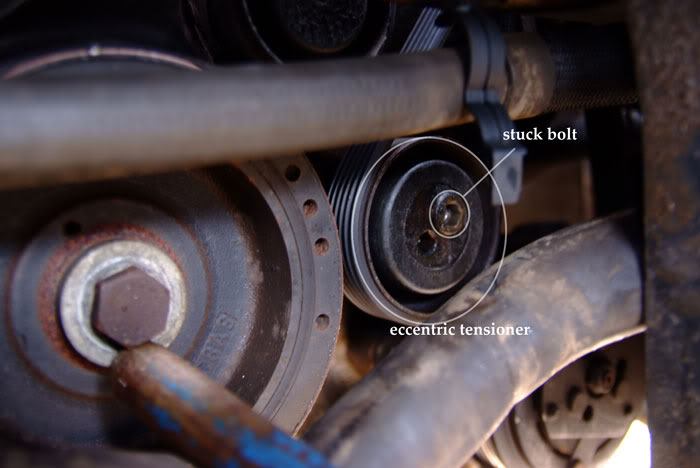

As far as I know, the Allen bolt will need to be loosened so the new belt can be properly tensioned.
Bashing it or impacting is not a good method. What you need is steady high torque.
Get hold of an Allen bit that can be placed into a 1/2" drive socket adapter and then use a breaker-bar on it. Go easy, not putting too much force on it and the bolt will yield without damage.
Torque applied at care on the end of a long bar always wins out over bashing or struggling with a short bar.
Bashing it or impacting is not a good method. What you need is steady high torque.
Get hold of an Allen bit that can be placed into a 1/2" drive socket adapter and then use a breaker-bar on it. Go easy, not putting too much force on it and the bolt will yield without damage.
Torque applied at care on the end of a long bar always wins out over bashing or struggling with a short bar.
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...

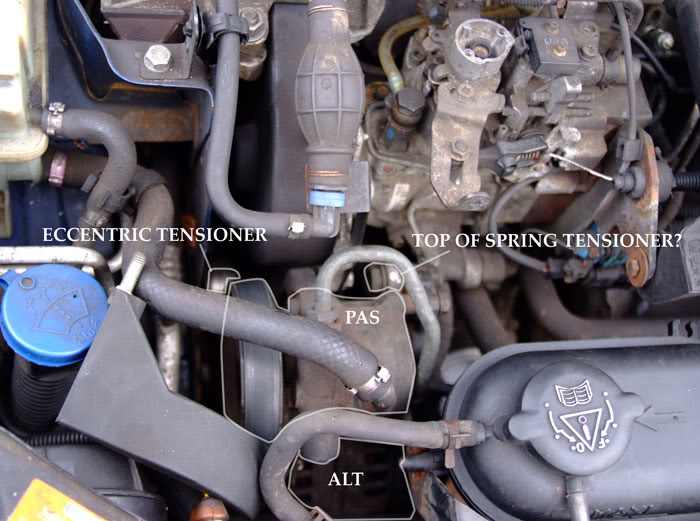

the first picy in your link shows the spring loaded tensioner not the excentric one as you labled it, and that is the spring you rightly indicated,
the 3/8th drive hole is square is on the braket/arm that tensioner is atatchet to, if memory serves it just to the rear of the tensioner pully in your first picy,
adn i agree with Jim on the NO bashing aproach, but it is a torx bit not an allan on an S reg 306,
also yes it does have the sping loaded tensioner the later 306's,
also i would not advise heat as you could destroy the bearing and any plastic or rubber in the area,
regards malcolm
the 3/8th drive hole is square is on the braket/arm that tensioner is atatchet to, if memory serves it just to the rear of the tensioner pully in your first picy,
adn i agree with Jim on the NO bashing aproach, but it is a torx bit not an allan on an S reg 306,
also yes it does have the sping loaded tensioner the later 306's,
also i would not advise heat as you could destroy the bearing and any plastic or rubber in the area,
regards malcolm
to citronut and citrojim
thanks guys again for your time, I have used a mix of advice and have got the eccentric tensioner to loosen.... wonderful, thankyou. I proceeded with caution using a very long bar and 1/2" socket monted torx bit... I did wonder why the allun was wobbly, I'd assumed that I'd begun to damge it... first class honors to you guys...I wasnt even sure if that was the right bolt at first, then I really thought I was bound to destroy it... thanks M. for the correction on the pics I see the mistake but thought it was an idler... will check for the 3/8" hole...have done more aux belts than I care to think about so hopefully I wont run in to any more daft problems...all the best.. P-N.
