Xantia Oil Level Sensor / Switch

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
romie
Posts: 451
Joined: 07 May 2010, 14:02
Location: Oxfordshire, UK
My Cars:
x 2

Xantia Oil Level Sensor / Switch

Post by romie »

1996 Citroen Xantia 1.9 Diesel.
Oil level warning light flashes for around 30 seconds after starting engine.
Changed changed oil filter and replaced oil to correct level.

I can't easily see the oil level sensor.

In the Haynes manual is says:

"Oil level sensor - The sensor is on the front side of the cylinder block, just to the right of the oil filter."

Anyone know how to locate the oil level sensor easily?

Many thanks
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Post by jgra1 »

Romie, go into my xantia blog, and wade your way through older posts, and somewhere you may find a pic of front of engine, and the oil filter and then the level plug showing? I cant see it at work :(

John
romie
Posts: 451
Joined: 07 May 2010, 14:02
Location: Oxfordshire, UK
My Cars:
x 2

Post by romie »

! That was quick.

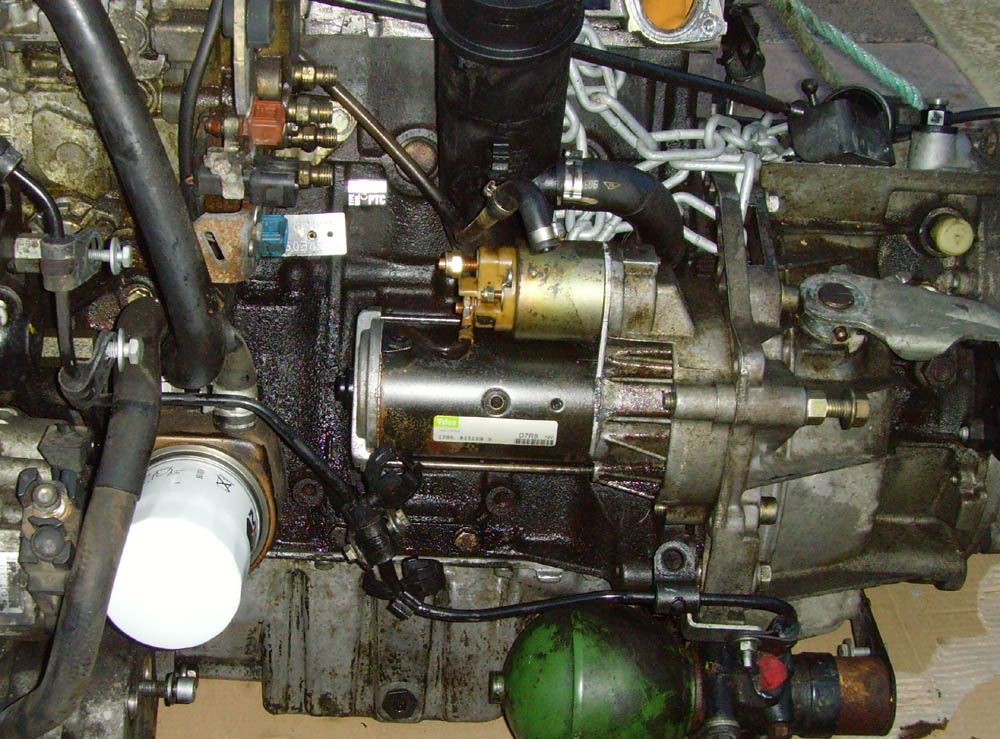

Nice blog, found great picture of yours from it:


There's a lot less thick black oil covering everything :)

Cheers, am just trying to see if I can locate the oil level sensor from it.

Can't see it yet - any pointers, ta.[/img]
romie
Posts: 451
Joined: 07 May 2010, 14:02
Location: Oxfordshire, UK
My Cars:
x 2

Post by romie »

.. damn, your pictures not coming up.
HTML is off. How can I turn that back on? ugh.

Seems you can right click and view image...
User avatar
Xaccers
Posts: 7654
Joined: 07 Feb 2007, 23:46
Location: Milling around Milton Keynes
My Cars:
x 184

Post by Xaccers »

If you're using semi/synthetic oil, it confuses the sensor.
1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)

DIY sphere tool
romie
Posts: 451
Joined: 07 May 2010, 14:02
Location: Oxfordshire, UK
My Cars:
x 2

Post by romie »

Cheers Xac

Nope, mineral.

On a side note, do you have a blog on your 100% veg conversion?
I was thinking about that a while ago.

Ta
romie
Posts: 451
Joined: 07 May 2010, 14:02
Location: Oxfordshire, UK
My Cars:
x 2

Post by romie »

Fantastic. Think a mod has allowed the picture I borrowed from jgra1's blog.

Ok, so can anyone somehow point out the oil level sensor from that picture?

( pixels across/pixels up? :P )

ta
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Post by myglaren »

Your HTML was allowed but it was BBcode for the image.

I am not sure how this is working, on the face of it it is something to do with John's blog but I used the left click to bring up the image (which opened in another browser on a different desktop :shock: :!: then copied the address (left click on the image) and pasted that.

No science involved in that, just low-level bodging.
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Post by jgra1 »

hi Romie, maybe its hidden.. below the end of the starter motor and behind that pipe ?
User avatar
CitroJim
A very naughty boy
Posts: 49531
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

The sensor is on the back of the engine, bang opposite the starter motor... I fancy the wiring comes out on a yellow plug...

The sensor(s) on the front or the engine are for pressure and temperature.

It's rare for them to act up unless as Xac says, you're running synthetic. I sometimes see mine on if the car is hot and/or has been parked on an incline...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
HDI
Posts: 1468
Joined: 22 Sep 2009, 15:46
Location: West Mids
My Cars:
x 7

Post by HDI »

I was getting excited there for a mo !! My understanding was the sensor is located on the back of the block then this thread said the front !!
But as CJ sez , it's at the back and the manifold needs to come off to replace it :( Mines failed and I can't find the motivation to spend all day replacing it !!
Now using '00 Xantia LX HDI, pov spec :(
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident :(
'99 Xantia HDI 110 Exclusive, RIP :(
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped :( )
& a couple of Peugeots !
jgra1
(Donor 2021)
Posts: 4625
Joined: 27 Nov 2005, 19:07
Location: Kent / Susssex
My Cars: 2010 C5 X7 2.0 hdi 160 exc auto
MG TF 135
Boxer II 2.2 camper conversion
BMW R1200RT
BMW K1300 R
Honda V F R 800 5thG / MT500 Armstrong
x 39

Post by jgra1 »

i think we should blame the haynes book of lies and not romie :D
romie
Posts: 451
Joined: 07 May 2010, 14:02
Location: Oxfordshire, UK
My Cars:
x 2

Post by romie »

Cheers guys.

This was a cut and past from a pdf. It shows a little picture but it's too close up to make out any distinguishing marks. ( I'll try putting it in this post).

jgra1 - I'll be sure to check out that area..
CitroJim - .. and behind the engine, ( if viewable from underneath without having to remove the whole lump :s )

Haynes definitely says:
"Oil level sensor - The sensor is on the front side of the cylinder block, just to the right of the oil filter."


OK, more investigation is needed.

If anyone else has specifically changed theres then let me know otherwise if it's not behind the starter motor or if it DOES require the manifold to be removed then I'll be adopting the Homer solution and either taking out the bulb or putting sticky tape over it >:)

cheers - romie
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Post by myglaren »

Judjing by the image from the Haynes manual, they have the engine the wrong way round (you can see one of the inlet manifold ports above and to the right of the sensor).

As usual they don't know their collective a*^~< from their elbows.
User avatar
CitroJim
A very naughty boy
Posts: 49531
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6160
Contact:

Post by CitroJim »

Hi Romie,

The picture in the PDF is correct and this is looking at the back of the block. It's just to the right of the flywheel as you look at it and in the picture you can just see the exhaust manifold to turbo flange.

Never believe as gospel all you read in the Haynes manual. We on here don't call it the BoL (Book of Lies) for nothing you know :lol:

Lie on your back under the car and you should spot it quite clearly but as HDI says, getting it out may be another matter entirely!!!

I'd just disconnect it....
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
