Hydractive switch on deisel pump

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Post Reply
mark21td
Posts: 268
Joined: 07 Apr 2009, 13:27
Location: Heathrow
My Cars:
x 1

Hydractive switch on deisel pump

Post by mark21td »

I've just found that my hydractive switch on top of my diesel pump is missing the actuating arm,

so my first question is are these expencive and where is the best place to get one from ?

The second is are there different types or are they all the same ?

The thurd is will this meen it's stuck in hard mode ?
99 406 LX HDI 90 estate
99 C250TD sport estate
01 306 HDI 90 meridian estate
Brew my own biodiesel

http://www.shorewasteoil.xtreemhost.com/" onclick="window.open(this.href);return false;
User avatar
CitroJim
A very naughty boy
Posts: 49518
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6156
Contact:

Post by CitroJim »

I never knew one such existed on a diesel Mark. On a petrol, the signal the Hydractive ECU uses to invoke hard mode on ard accelleration is derived from a small pot on the throttle pedal.

The only switch I can recall on a pump is the Post-Heat cutout microswitch and these were only present on non-electronic Bosches and later Lucas DPCs...

I'll have a look at my wiring diagrams later...

You can see if you are in permanant hard mode by listening to the electrovales and hearing their characteristic soft-mode purring. You can bounce each corner to doubly confirm; in soft mode the corners should be very soft and squishy.
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
mark21td
Posts: 268
Joined: 07 Apr 2009, 13:27
Location: Heathrow
My Cars:
x 1

Post by mark21td »

I always thought it was for the hydractive system :oops:

this is it
<a href="http://s250.photobucket.com/albums/gg26 ... tch001.jpg" target="_blank"><img src="http://i250.photobucket.com/albums/gg26 ... tch001.jpg" border="0" alt="Photobucket"></a>

<a href="http://s250.photobucket.com/albums/gg26 ... tch002.jpg" target="_blank"><img src="http://i250.photobucket.com/albums/gg26 ... tch002.jpg" border="0" alt="Photobucket"></a>


Yes I have one of the last non EGR 1.9td's but I've only seen this switch on a hydrolic Citroen, and when DickyG checked my car out he said the hyrdo switch on the throttle was working.

OH my links arnt working properly.
99 406 LX HDI 90 estate
99 C250TD sport estate
01 306 HDI 90 meridian estate
Brew my own biodiesel

http://www.shorewasteoil.xtreemhost.com/" onclick="window.open(this.href);return false;
User avatar
CitroJim
A very naughty boy
Posts: 49518
Joined: 30 Apr 2005, 23:33
Location: Paggers
My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
x 6156
Contact:

Post by CitroJim »

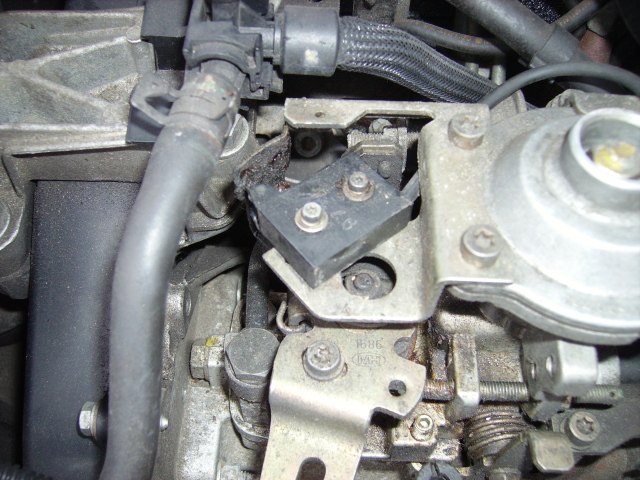

I retrieved and re-hosted this picture of yours Mark...


That, unless I'm very much mistaken, is the post-heat defeat switch.

What's your exact model and year? I'll then have a look at the diagrams...
Jim

Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
jonathan_dyane
Posts: 229
Joined: 10 May 2004, 23:32
Location:
My Cars:

Post by jonathan_dyane »

/\ what Jim sez! That is definitely part of the glowplug system and nothing related to the suspension. Furthermore, there does not appear to be a missing part...

To the best of my knowledge, hydractive cars with the XUD engine did without a means to determine throttle position.
Jonathan
1986 Mercedes Benz 190D 2.5
1979 GS 1220 Club Estate awaiting more welding
1952 David Brown 30D awaiting new liners
User avatar
DickieG
Monaco's youngest playboy
Posts: 4877
Joined: 25 Nov 2006, 09:15
Location: Buckinghamshire
My Cars:
x 38

Post by DickieG »

jonathan_dyane wrote:To the best of my knowledge, hydractive cars with the XUD engine did without a means to determine throttle position.
Not according to my VSX which has a throttle position sensor on the accelerator pedal.
13 Ram 1500 Hemi
14 BMW 535D Tourer
19 BMW i3s
06 C3 Desire 1.4
72 DS 21 EFi Pallas BVH
mark21td
Posts: 268
Joined: 07 Apr 2009, 13:27
Location: Heathrow
My Cars:
x 1

Post by mark21td »

jonathan_dyane wrote:/\ what Jim sez! That is definitely part of the glowplug system and nothing related to the suspension. Furthermore, there does not appear to be a missing part...

To the best of my knowledge, hydractive cars with the XUD engine did without a means to determine throttle position.

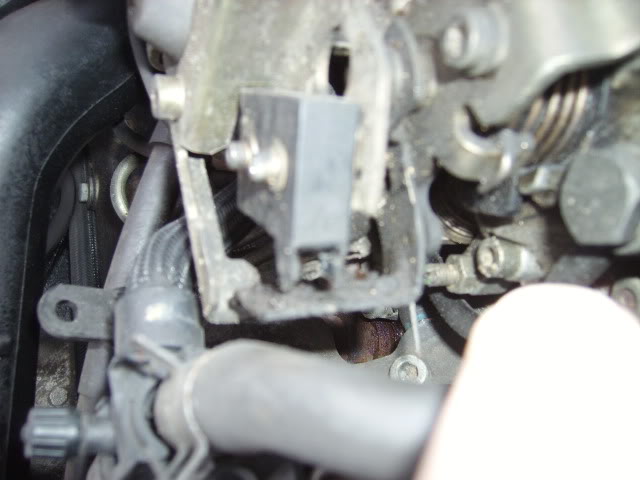

On this pictur you can't see the bit thats missing, the other one shows the missing part (or where it should be), wish I could get the link working so you could see.
