ZX Vocane TD Fuel Filter Housing

Post by charlow »

I have a 1994 ZX Volcane TD.
Can anyone tell me what the rotary leaver does that's on the lower part of the plastic fuel filter and what is its normal position?
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

What type of filter housing is it ? , from memory you should have the perflux (sometimes nicknamed 'tophat') type arrangement.

The only 'control' on this is the drain screw (originally had a plastic pipe on it but these tend to fall off or get thrown out) , and the 'water in fuel' sensor screwed into the back.

A picture would help greatly if possible to determine what you mean :)
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
charlow
Posts: 12
Joined: 28 Mar 2010, 17:00
Location: creech st michael, taunton
My Cars:

ZX Volcane Filter Housing

Post by charlow »

Hi Andy,
The rotary lever is the white one in the picture (from Haynes manual)

Sorry but I can't paste the image, but its on page 3.8, picture 8.8b and its the white knob at quarter too!
User avatar
spider
Posts: 3949
Joined: 05 Jan 2010, 14:28
Location: Derby.
My Cars: Soon, I hope...
x 77
Contact:

Post by spider »

I don't have a manual :(

Hopefully someone else will have a picture (or possibly a picture of the fuel filter housing)
Andy.

91 205D-Turbo, gone but still missed
02 106D, TUD5B, gone but not really missed apart from the MPG
Online
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Post by myglaren »

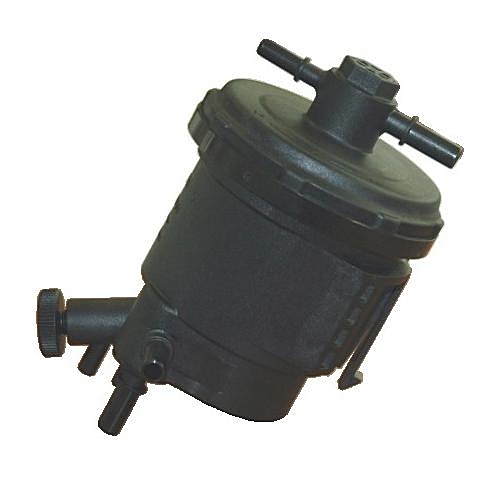

Is it like this one?
charlow
Posts: 12
Joined: 28 Mar 2010, 17:00
Location: creech st michael, taunton
My Cars:

Post by charlow »

No its not like your picture Steve.
I've got a picture on my desktop but can't work out how to display it here.
Can you tell me how to post a picture.
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
Location: poole dorset uk
Lexia Available: Yes
My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff]
x 378

Post by admiral51 »

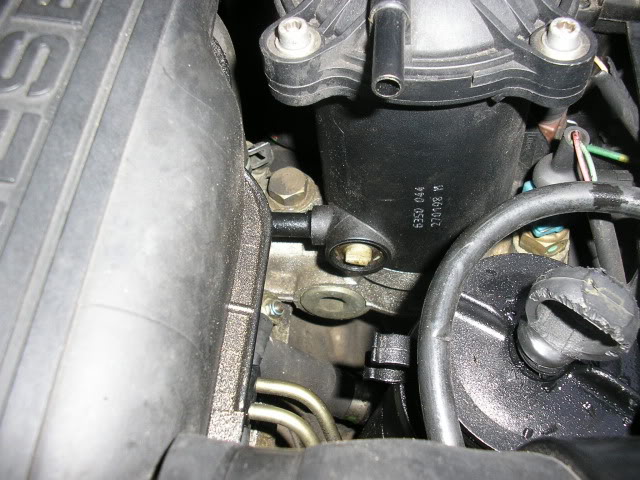

Give me 2 mins to upload one that is off my 2.1td

Edit***



Have a look at This Topic for info on photos


Colin
Online
User avatar
myglaren
Forum Admin Team
Posts: 25366
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Post by myglaren »

There is a guide on posting images here but you can email them to me to include if you want. Push the email button at the foot of the post :)
charlow
Posts: 12
Joined: 28 Mar 2010, 17:00
Location: creech st michael, taunton
My Cars:

Post by charlow »

Its the white rotary lever in the picture close to the black pipe going away at the rear
admiral51
Donor 2023
Posts: 2625
Joined: 24 May 2007, 10:11
Location: poole dorset uk
Lexia Available: Yes
My Cars: C5 X7 2009 2.0 HDI VF7**************[VIN obfuscated, can be read by forum staff]
C4 2010 2.0 HDi Exclusive VF7**************[VIN obfuscated, can be read by forum staff]
x 378

Post by admiral51 »

The only info i can find is that its a thermostat but how it operates and in which position it should be is anyones guess :oops:
