Leaky HP pump
Hi folks
Sorry for starting yet another new topic but a search didn't come up with all that much.
Basically I've got a leak thats visible down the left hand side of the engine, ie everything under the HP pump. I've read that this can kill the alternator so I'd like to sort it. So... How many seals are there on the HP pump, which seal's 'go', where do I get them from, and how do I fit them?
Thanks
Sorry for starting yet another new topic but a search didn't come up with all that much.
Basically I've got a leak thats visible down the left hand side of the engine, ie everything under the HP pump. I've read that this can kill the alternator so I'd like to sort it. So... How many seals are there on the HP pump, which seal's 'go', where do I get them from, and how do I fit them?
Thanks
-
- Posts: 8061
- Joined: 30 Dec 2004, 23:10
- Location: Somewhere in North Wales, Anglesey
- My Cars: M reg Xm S2 2.1td Auto Exclusive. 269k and rising
L reg XM S1 V6 12v Manual SEi
L 94 XM 2.1 TD auto total resto
2008 Peugeot 207 Sw 1.6 16v hdi. 217k and rising
2010 Peugeot 207 SW 1.6 8v HDi 161k and rising - x 71
its useually the O ring seal on the pipe NEAREST The pump pully, remove the pipe with 12mm, then remove the union the pipe screws into with 17mm spanner, THEN WATCH FOR THE SPRING and PLATE under it!! WITHDRAW IT CAREFULLY!!
Theres on O Ring on the union part - available from Citroen too.
Paul
Theres on O Ring on the union part - available from Citroen too.
Paul
Sharing a pug 207 1.6 hdi Sw 16v.
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
M reg Xm 2.1 td auto exclusive S2 269k and rising
L reg XM V6 12v SEi auto .. Light project
A very sad...
1994 XM 2.1 d auto
- Xaccers
- Posts: 7654
- Joined: 07 Feb 2007, 23:46
- Location: Milling around Milton Keynes
- My Cars:
- x 184
There's also a blanking plate on the back of the pump, basically like the union that the metal pipe comes out of but without any holes in it.
The o-rings are about £1.18 from the dealers.
The o-rings are about £1.18 from the dealers.
1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
the pipe union seal is a diferent diamiter to the blancking plug seals,
the larger one below are the pipe union seals,
i belive the larger one also is the same on the non +2 pumps
4026 87
HYD OIL O-RING
DIAM 16-TO 1,9
- PRESS PUMP 6+2 + NON-SINKING
4026 88
HYD OIL O-RING
DIAM 19-TO 2,4
- PRESS PUMP 6+2 + NON-SINKING
below is part No.'s and price's trade inc VAT
Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
0000402687 HYD OIL O-RING 1.46 GBP 1.72 GBP 1.72 GBP
0000402688 HYD OIL O-RING 1.16 GBP 1.36 GBP 1.36 GBP
regards malcolm
the larger one below are the pipe union seals,
i belive the larger one also is the same on the non +2 pumps
4026 87
HYD OIL O-RING
DIAM 16-TO 1,9
- PRESS PUMP 6+2 + NON-SINKING
4026 88
HYD OIL O-RING
DIAM 19-TO 2,4
- PRESS PUMP 6+2 + NON-SINKING
below is part No.'s and price's trade inc VAT
Part Number Description Quantity Price excl. VAT Price incl. VAT Total incl. VAT Selection
0000402687 HYD OIL O-RING 1.46 GBP 1.72 GBP 1.72 GBP
0000402688 HYD OIL O-RING 1.16 GBP 1.36 GBP 1.36 GBP
regards malcolm
-
- Posts: 590
- Joined: 21 Apr 2009, 15:35
- Location: Hemel Hempstead (unfortunately)
- My Cars:
- x 2
Are the O rings sold separately? Last time I had to buy some (summer 09) I had to buy in packs of 10! from the main stealers of course.
Gone to the dark side.
Past Citroens
'99 Xantia HDi Exclusive
'99 Xantia 3.0 V6 Exclusive (Green Goblin)
'02 C5 Hdi 110 LX Estate
'98 Xantia 1.8 sx auto with LPG
'00 Xantia Hdi (110) forte
'97 Xantia 1.9D sx
'93 Xantia 1.9D lx (my first) R.I.P
Past Citroens
'99 Xantia HDi Exclusive
'99 Xantia 3.0 V6 Exclusive (Green Goblin)
'02 C5 Hdi 110 LX Estate
'98 Xantia 1.8 sx auto with LPG
'00 Xantia Hdi (110) forte
'97 Xantia 1.9D sx
'93 Xantia 1.9D lx (my first) R.I.P
- Xaccers
- Posts: 7654
- Joined: 07 Feb 2007, 23:46
- Location: Milling around Milton Keynes
- My Cars:
- x 184
Back leaks more on the block.Dommo wrote:Sorry xac I missed your reply when I replied. It's likely that the seal around the back is leaking because there's quite a bit down the block. Does that rear seal leak more onto the alternator or block?
Cheers.
Front drips onto the alternator slowly killing it.
From my experience anyway.
Use plenty of rag as a fair amount of LHM comes out when you remove the plugs.
1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
- Dommo
- Posts: 1191
- Joined: 11 Apr 2009, 09:43
- Location: Stoke-on-Trent
- My Cars: Current
07 C5 VTX+ 2.2 HDi 173hp
97 S1 Activa
06 Boxster S
93 XM 2.1 Turbo SD
Previous cars
91 Toyota Soarer UZZ32 Active Suspension
97 S1 VSX 1.9 Turbo D
99 Xantia Activa
98 2.1TD Xantia
99 306 - x 19
Very slow reply here, but I've just taken some photos and I'm going to get some seals tomorrow all being well..

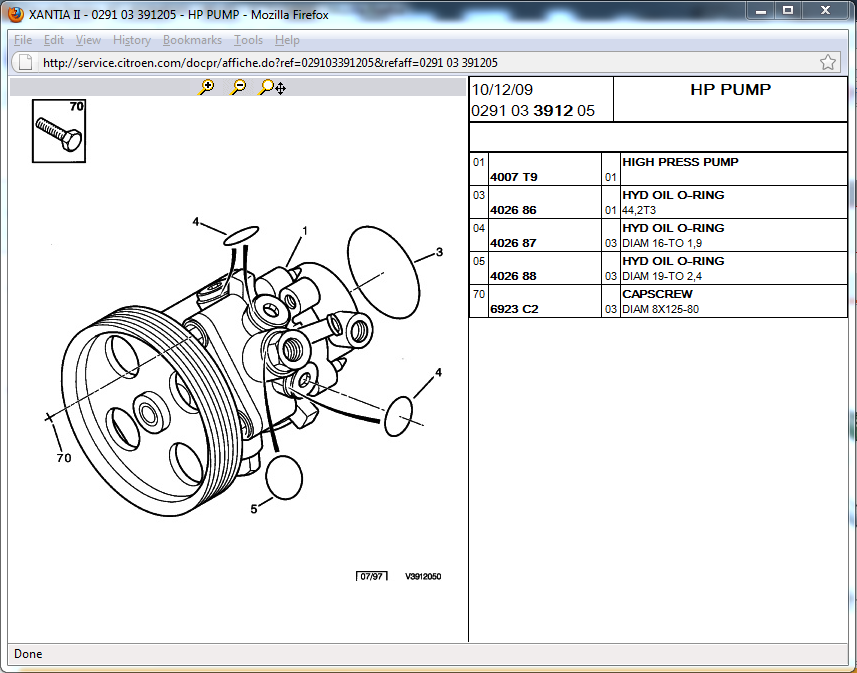

Here's what the servicebox shows my pump as:
Looks like the one with the pipe coming out of it on the left needs replacing, part 5 on servicebox

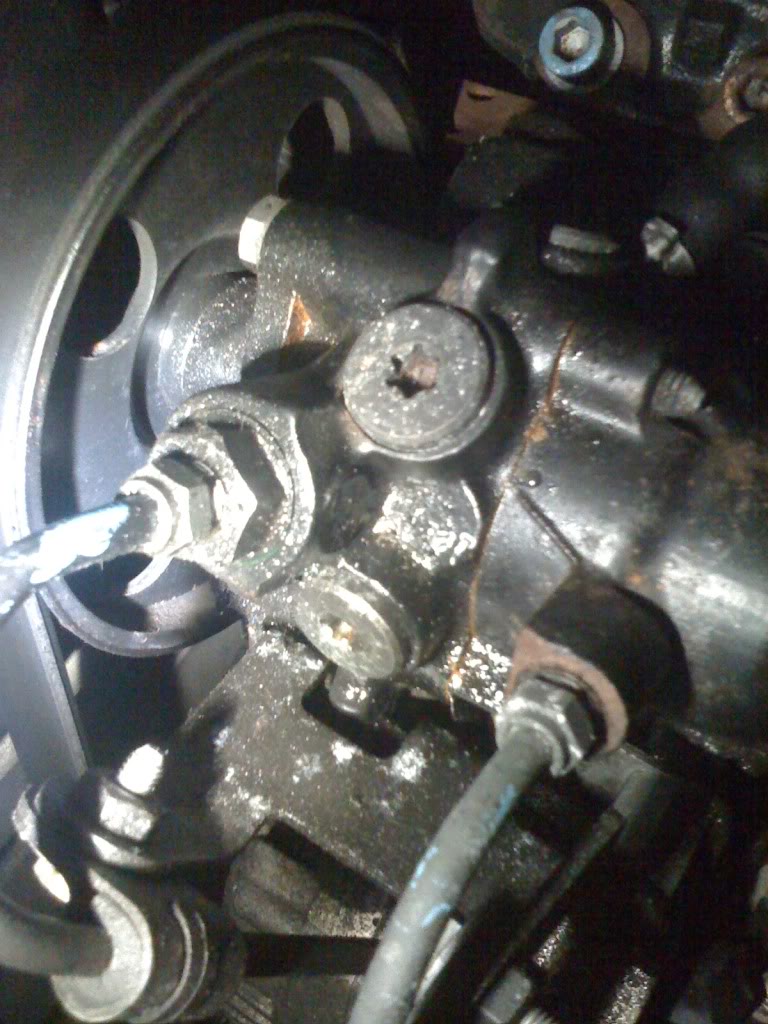

Judging by this next picture I definately need the seal closest to the pulley as Paul mentioned, however it's not marked on the servicebox picture so I cant get a part number for it, any ideas??

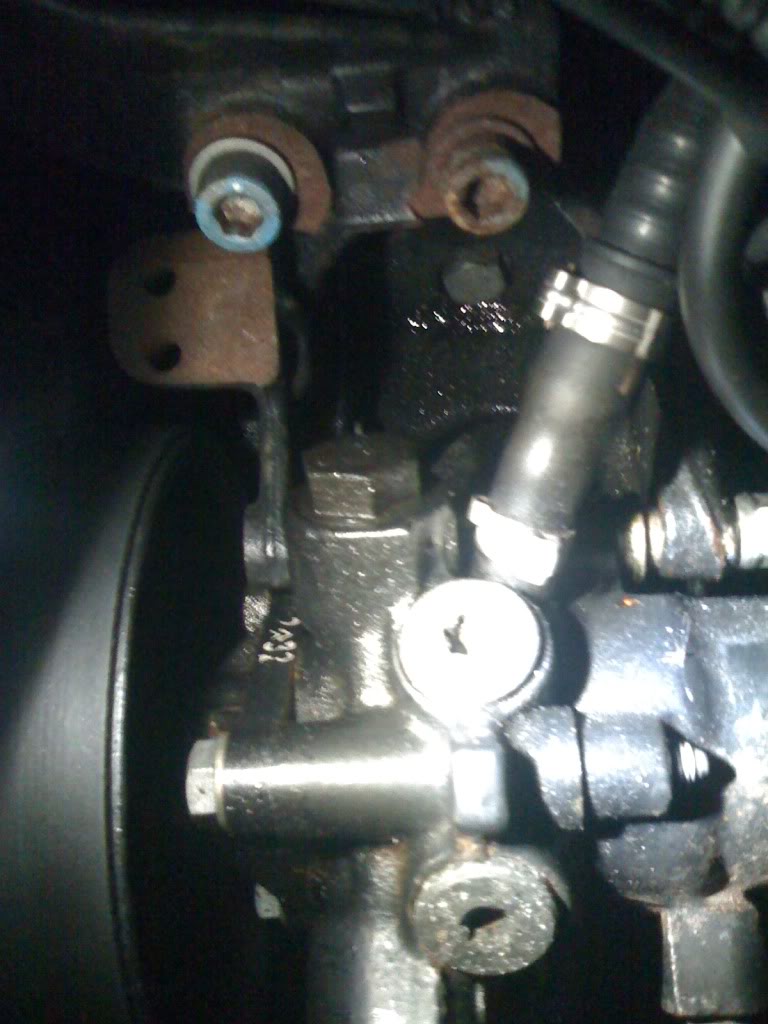

It also looks like that judging by my pictures the three 'part number 4' seals with the torx hole on don't need doing, but I might do them anyway.
