bosch body armour removal
Hi Gang,
Message in particular for CitroJim and MikeT,
The long security bolt on the body armour, exactly how did you remove it
This is my idea partially drill the bolt and then mark a slot across it. take one hammer drill and masonary bolt in fit into slot and rewind the bolt out
Any thoughts. 8)
Kenny
Message in particular for CitroJim and MikeT,
The long security bolt on the body armour, exactly how did you remove it
This is my idea partially drill the bolt and then mark a slot across it. take one hammer drill and masonary bolt in fit into slot and rewind the bolt out
Any thoughts. 8)
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- CitroJim
- A very naughty boy
- Posts: 49621
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6183
- Contact:
Re: bosch body armour removal
With great difficulty Kenny That bolt in particular is as hard as nails and it was my father who found a method very similar to the one you propose Good thinking!KennyW wrote: The long security bolt on the body armour, exactly how did you remove it
Drill the head (possibly wearing out a couple of drill bits doing it) and then use a masonry drill in a big hammer drill running backwards. It works like a rattle gun!
Make sure all the delivery ports and other openings are well covered as lots of swarf will fly!
Good luck
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Jim and Mike your blogs re the Bosch pump are very accurate and detailed and if anyone is think of doing the same as myself I highly recommend them reading these first
The actual job is not hard but requires patience.
I will let you know the outcome.
Kenny
The actual job is not hard but requires patience.
I will let you know the outcome.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
When I removed mine (it was a 406 pump so my have been differant) I managed to get it out with mole grips after grinding the head of and removeing the amour.
But as jim said you do need to cover ALL the pumps inlets/outlets as grunding dust will get in where swarf wont.
Once you have removed the armour you will find that it's a normal stop solenoied and nothing special.
But as jim said you do need to cover ALL the pumps inlets/outlets as grunding dust will get in where swarf wont.
Once you have removed the armour you will find that it's a normal stop solenoied and nothing special.
99 406 LX HDI 90 estate
99 C250TD sport estate
01 306 HDI 90 meridian estate
Brew my own biodiesel
http://www.shorewasteoil.xtreemhost.com/" onclick="window.open(this.href);return false;
99 C250TD sport estate
01 306 HDI 90 meridian estate
Brew my own biodiesel
http://www.shorewasteoil.xtreemhost.com/" onclick="window.open(this.href);return false;
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Hi there,
Here's the latest, the second security bolt came off relatively easily and part of the armour was off then came the next problem .
Over the stop solenoid there is also armourwhich is secured by a hex screw (removed) and on the other side is a small hole with a cylinderical hollow pin this is refusing to budge.
I thought this would simply split apart as it is split dwon the middle. I have a replacement with my stop solenoid purchased earlier hence i know what it looks like
Any suggestions on removing it
My method was to use the split to separate and reduce the diameter and extract from hole as all my drills for the size of hole have been blunted with use.
This my be the only way for it to be removed: Drill it out.
Kenny
Here's the latest, the second security bolt came off relatively easily and part of the armour was off then came the next problem .
Over the stop solenoid there is also armourwhich is secured by a hex screw (removed) and on the other side is a small hole with a cylinderical hollow pin this is refusing to budge.
I thought this would simply split apart as it is split dwon the middle. I have a replacement with my stop solenoid purchased earlier hence i know what it looks like
Any suggestions on removing it
My method was to use the split to separate and reduce the diameter and extract from hole as all my drills for the size of hole have been blunted with use.
This my be the only way for it to be removed: Drill it out.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- CitroJim
- A very naughty boy
- Posts: 49621
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6183
- Contact:
Ahh, you have the later, more tricky one Kenny. I've no personal experience of this one but if you have a natter with Lawrence1973 down in the Peugeot part of the forum, he has...
I think a Dremel may be needed here.
I think a Dremel may be needed here.
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- Posts: 4809
- Joined: 11 Jun 2007, 16:17
- Location: Christchurch, Dorset. UK
- My Cars: 2005 C5restyle 1.6HDI 16v 110hp VTR Estate
2008 C5 X7 1.6HDI VTR+ Saloon - x 231
Can you please elaborate more on the strategies you employed as I'm starting on mine now.
The first two seem easy enough - cut a slot and screwdriver them out - but the other three are recessed/shrouded.
Is it a case of drilling them out to create a bowl seat for the masonry drill to fit into? Any other tips for ensuring this method will work?
The first two seem easy enough - cut a slot and screwdriver them out - but the other three are recessed/shrouded.
Is it a case of drilling them out to create a bowl seat for the masonry drill to fit into? Any other tips for ensuring this method will work?
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Good Evening Mike,
Where exactly are you on the removal of the armour?
All the bolts I removed apart for the 2 security were no problem.
The 1st security bolt came loose with several strikes with cold chisel and hammer.
The 2nd bolt took a little longer but the same method.
I thought of the idea cut a slot in the head and using the reverse setting on a drill take a masonary drill with their type of head and unscrew the bolt out that way.
But on my pump I did not need to do that.
The small hollow pin , if you have it, screw in a strong self tapping screw, place mulgrips onto screw tap out. this was suggested by lawrence1973 on the peugeot forum and confirmed by a mechanic in Lawson diesel.
I shall be removing my pump tomorrowas the weather is suppose to better in this neck of the woods.
Kenny
Where exactly are you on the removal of the armour?
All the bolts I removed apart for the 2 security were no problem.
The 1st security bolt came loose with several strikes with cold chisel and hammer.
The 2nd bolt took a little longer but the same method.
I thought of the idea cut a slot in the head and using the reverse setting on a drill take a masonary drill with their type of head and unscrew the bolt out that way.
But on my pump I did not need to do that.
The small hollow pin , if you have it, screw in a strong self tapping screw, place mulgrips onto screw tap out. this was suggested by lawrence1973 on the peugeot forum and confirmed by a mechanic in Lawson diesel.
I shall be removing my pump tomorrowas the weather is suppose to better in this neck of the woods.
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132
Hi Mike,
This is different from my pump as I only have 2 security bolts and the armour covering the stop solenoid is different.
I have some photos taken today and I am going to try and attach them
Kenny
This is different from my pump as I only have 2 security bolts and the armour covering the stop solenoid is different.
I have some photos taken today and I am going to try and attach them
Kenny
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.
- KennyW
- Donor 2024
- Posts: 2506
- Joined: 17 Jan 2006, 21:22
- Location: Letham, Fife
- My Cars: Current Citroen's
C5 x7 2010
SWMBO C3 2012
Previous Citroen's
Xantia 2.0 90hp estate
Xantia 1.9 TD estate - x 132

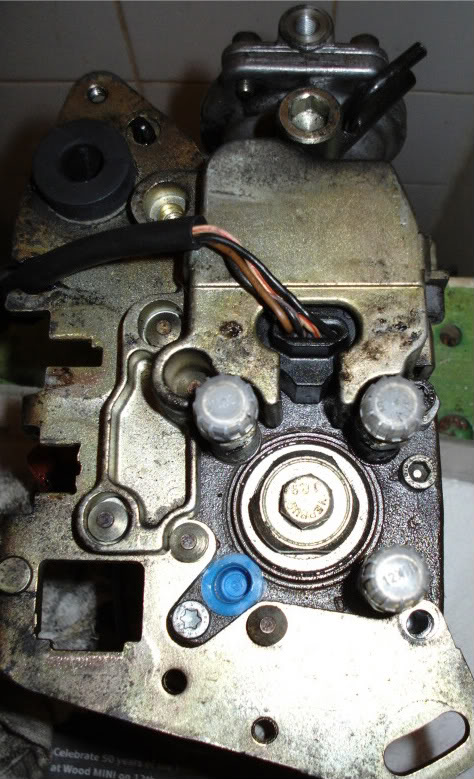

Sorry there's no text but I don't know if i did it right
