Windscreen / headlamp washer bottle & pumps ?
Anyone had this lot out ? The paynes manual says the front bumper needs to come off , I had a quick look today and was hoping it would come out with just the front offside wheel off ? My headlamp washers don't work and I want them to !! I'm thinking it's the pump.
Now using '00 Xantia LX HDI, pov spec
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
- Xaccers
- Posts: 7654
- Joined: 07 Feb 2007, 23:46
- Location: Milling around Milton Keynes
- My Cars:
- x 184
If you can wait til tomorrow evening, I'll have a look at the exposed one on the LX (it's sans bumper) and see how it's fixed, I'm pretty sure you'll have to remove the bumper.
Removing the bumper from a MK1 can be a pain, as the bolts rust solid in the captive nuts in the plastic bracket of the bumper, so when you try to remove the bolts, they just spin.
The bracket that holds the nuts is held onto the bumper by rubber gromets, I believe it's designed to pop the bumper off in a prang rather than the bolts bending their mounts behind the wing. That's the theory and when the car was only a few years old, I'm sure it would have worked, but after 10 years, the rubber has gone solid so rather than pop off, the bracket stays with the bumper in a prang, and pulls it's mount with it.
What I had to do when I replaced Cassy's bumper was pry the bumper off the captive nuts, then clamp the nuts with grips so you can extract the bolts.
Then superglue some washers to new bolts, feed them through the holes where the captive nuts used to be, from inside the bumper.
Use something like epoxy so you can coat the face of the washer to glue it to the inside of the bracket.
I'll take a load of photos tomorrow evening.
Removing the bumper from a MK1 can be a pain, as the bolts rust solid in the captive nuts in the plastic bracket of the bumper, so when you try to remove the bolts, they just spin.
The bracket that holds the nuts is held onto the bumper by rubber gromets, I believe it's designed to pop the bumper off in a prang rather than the bolts bending their mounts behind the wing. That's the theory and when the car was only a few years old, I'm sure it would have worked, but after 10 years, the rubber has gone solid so rather than pop off, the bracket stays with the bumper in a prang, and pulls it's mount with it.
What I had to do when I replaced Cassy's bumper was pry the bumper off the captive nuts, then clamp the nuts with grips so you can extract the bolts.
Then superglue some washers to new bolts, feed them through the holes where the captive nuts used to be, from inside the bumper.
Use something like epoxy so you can coat the face of the washer to glue it to the inside of the bracket.
I'll take a load of photos tomorrow evening.
1.9TD+ SX Xantia Estate (Cassy) running on 100% veg
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
1.9TD SX Xantia Hatchback (Jenny) running on 100% veg for sale
Laguna II 2.0dCi Privilege (Monty)
DIY sphere tool
- DickieG
- Monaco's youngest playboy
- Posts: 4877
- Joined: 25 Nov 2006, 09:15
- Location: Buckinghamshire
- My Cars:
- x 38
First of all check the relay before pulling the car apart, its the large pink one located within the relay box behind the battery on a S2 (on a S1 its behind the O/S/F wheel within a large box in the wheelarch itself) they are the usual cause of non working headlight washers.
BTW you can access the washer bottle via the O/S/F wheel arch, but if you want to completely remove the bottle IIRC you will need to release the O/S of the bumper, the bottle is retained by two bolts onto the inner wing.
BTW you can access the washer bottle via the O/S/F wheel arch, but if you want to completely remove the bottle IIRC you will need to release the O/S of the bumper, the bottle is retained by two bolts onto the inner wing.
13 Ram 1500 Hemi
14 BMW 535D Tourer
19 BMW i3s
06 C3 Desire 1.4
72 DS 21 EFi Pallas BVH
14 BMW 535D Tourer
19 BMW i3s
06 C3 Desire 1.4
72 DS 21 EFi Pallas BVH
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
Re: Windscreen / headlamp washer bottle & pumps ?
3 timesHDI wrote:Anyone had this lot out ?
No, NOT necessarily. (There must be a warning in the first page of Haynes: "Don't do everything in the same way as told in this book . There are better ways! ".)HDI wrote:The Haynes manual says the front bumper needs to come off ,
Ask first in FCF .
From wheel side the bottle can be completely taken off. Also right side headlight off which will help you fit back the filler hose and the breather hose. Washer bottle retaining screws (2 times 10mm) will be exposed behind inner wheel arch. They were very rusted and I had to replace them after first removal. 3 electric connectors, from lowest to highest -> windscreen motor, level sensor and headlamps washer motor.HDI wrote:I had a quick look today and was hoping it would come out with just the front offside wheel off ?
It might be also corrosion, relay or fuse (relay is both for fog lights & headlamps washer pump). Fuse is easiest to check. Relay is PINK colored (Cartier text on it) and in engine room fuse box.HDI wrote:My headlamp washers don't work and I want them to !! I'm thinking it's the pump.
Edit:
- Fuse location is in the engine room fuse box. Check fuse number from layout in owner's manual.
- Relay location is USUALLY in the engine room fuse box BUT mine was in a L-shaped box behind the left wheel arch fantastic!
Good luck,
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
Re: Windscreen / headlamp washer bottle & pumps ?
Enjoy the outstanding design of the washer bottle
PS: Pls correct above text: (relay is both for fog lights & headlamps washer pump)
as --> (fuse is both for fog lights & headlamps washer pump)
PS: Pls correct above text: (relay is both for fog lights & headlamps washer pump)
as --> (fuse is both for fog lights & headlamps washer pump)
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
Thanks for the replies guys
Have checked the fuse and relay , my mantra is simplest things first !
Have been through the bumper removal pain on a Xantia 1 which is why I'm less than keen to remove it to do this job ! The only thing worse than that is a clutch cable or clutch pedal clip on a Xantia 1 , that is a real witches sister to do !!
One thing I did notice during my initial reccy was how the offside rad hose was routed through the washer bottle to presumably prevent icing in winter !
Have checked the fuse and relay , my mantra is simplest things first !
Have been through the bumper removal pain on a Xantia 1 which is why I'm less than keen to remove it to do this job ! The only thing worse than that is a clutch cable or clutch pedal clip on a Xantia 1 , that is a real witches sister to do !!
One thing I did notice during my initial reccy was how the offside rad hose was routed through the washer bottle to presumably prevent icing in winter !
Now using '00 Xantia LX HDI, pov spec
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
I can confirm this for you as I have recently replaced the motor myself... on the S2 Exclusive I found only one motor which runs the windshield washers, headlight washers and rear screen washer... It is perfectly possible to replace this unit by just removing the underwing splash guard (and wheel if more access is required), in fact I believe it would be possible to do the job from underneath without removing anything at all..
Last edited by f00lzz on 10 Oct 2009, 11:23, edited 1 time in total.
Ian
Account Ref: 6419
Current Cars
Nissan X-Trail SVE
Saab 2.2TiD
Merc E270 Estate
Past Citroens
2001 Xantia 3.0 Exclusive
1999 Xantia 1.9TD
1997 Xantia 3.0 Exclusive
1995 XM 3.0 Exclusive Estate
Account Ref: 6419
Current Cars
Nissan X-Trail SVE
Saab 2.2TiD
Merc E270 Estate
Past Citroens
2001 Xantia 3.0 Exclusive
1999 Xantia 1.9TD
1997 Xantia 3.0 Exclusive
1995 XM 3.0 Exclusive Estate
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13
I haven't heard/knew this before. Any pictures? would be nice to learn new things Are there 3 different pipes?f00lzz wrote:... on the S2 Exclusive I found only one motor which runs the winshield washers, headlight washers and rear screen washer...
This is a 2 directional washer motor for windscreen and tailgate in my Xantia.
It can easily be reached from below, even without removing anything.
Again in mine (MK2) there is a much bigger (2-3 times in size) motor for headlight washers. That gives a "jet powered" stream of water to the headlights. It has only 1 pipe. I'll come back with a piccy
Last edited by VertVega on 10 Oct 2009, 11:18, edited 3 times in total.
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
You reckon there is only 1 motor for everything ??!! The windscreen washers work ok , why would the headlamp washers not work in that case ?
I have a 2 post lift so I can work from the underside too.
I have a 2 post lift so I can work from the underside too.
Now using '00 Xantia LX HDI, pov spec
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
I know that the motor works 'in reverse' for the rear screen washer and their must be some sort of one way valve involved... I was 'lucky' in that the motor eventually stopped altogether so a direct replacement is all I needed. I also found that some of the small bore piping was blocked/damaged and managed to snip the bad ends off and everything worked!
Ian
Account Ref: 6419
Current Cars
Nissan X-Trail SVE
Saab 2.2TiD
Merc E270 Estate
Past Citroens
2001 Xantia 3.0 Exclusive
1999 Xantia 1.9TD
1997 Xantia 3.0 Exclusive
1995 XM 3.0 Exclusive Estate
Account Ref: 6419
Current Cars
Nissan X-Trail SVE
Saab 2.2TiD
Merc E270 Estate
Past Citroens
2001 Xantia 3.0 Exclusive
1999 Xantia 1.9TD
1997 Xantia 3.0 Exclusive
1995 XM 3.0 Exclusive Estate
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13

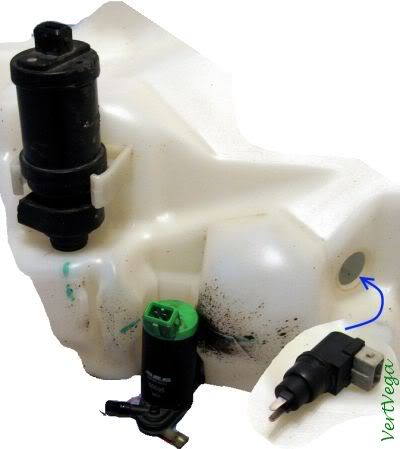

Here is a picture where 2 separate motors and level sensor are seen.VertVega wrote:Any pictures? would be nice to learn new things Are there 3 different pipes?f00lzz wrote:... on the S2 Exclusive I found only one motor which runs the winshield washers, headlight washers and rear screen washer...
Guess which one is the for headlight "jets"
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual
I think VV is right , I could see a much larger pump with a large bore hose connected to it. That is on top of the tank so it will have to come out.
Now using '00 Xantia LX HDI, pov spec
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
You beat me to it ! The tank on mine is not quite as clean as yours though ! It's had several soakings of LHM so it just looks black !
Now using '00 Xantia LX HDI, pov spec
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
My past Citroens :-
'00 Xantia SX HDI, now dead due to accident
'99 Xantia HDI 110 Exclusive, RIP
'97 Xantia TD SX
'96 Xantia TD LX
'96 ZX TD
'89 BX TD
'88 AX GT
'79 CX2400 Pallas (scrapped )
& a couple of Peugeots !
- VertVega
- Posts: 1178
- Joined: 01 Nov 2008, 19:39
- Location: Province nordique de l'Union européenne
- My Cars:
- x 13

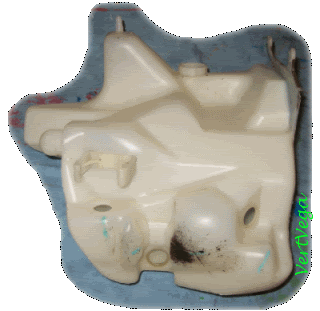

Well, well you wouldn't have recognized it if I've added the piccy taken right after it was taken off . It was covered with mud, dirt and ... (you name it) all over!HDI wrote:The tank on mine is not quite as clean as yours though !
