are there pics of an activa system online?

citrov6 · Unread post by **citrov6** » 24 Jul 2009, 20:49

I've not had the privelege of owning one so not seen it, been trying to find some pics online, few magazine articles describing it but thats all.

Unread post by **myglaren** » 24 Jul 2009, 21:13

This might go some of the way to explaining it:

YouTube

Shame that not all of the innovations made it onto the road.

Here's another

Sl4yer · Unread post by **Sl4yer** » 24 Jul 2009, 21:26

This doesn't describe it as such, but it shows the results

:

Youtube

Can't think of many other FWD cars that wouldn't have ploughed straight on.

James

citrov6 · Unread post by **citrov6** » 24 Jul 2009, 22:10

thanks that does help i see how the rams work

wow i know my v6 would of ploughed straight through there

Unread post by **CitroJim** » 25 Jul 2009, 10:16

There is a very good explanation of the Activa system in the Citroen Technical Guide

In fact this is an excellent reference for Citroen hydraulics in general.

Unread post by **myglaren** » 25 Jul 2009, 10:45

Excellent link Jim.

citrov6 · Unread post by **citrov6** » 25 Jul 2009, 10:48

ace thanks

red_dwarfers · Unread post by **red_dwarfers** » 26 Jul 2009, 21:31

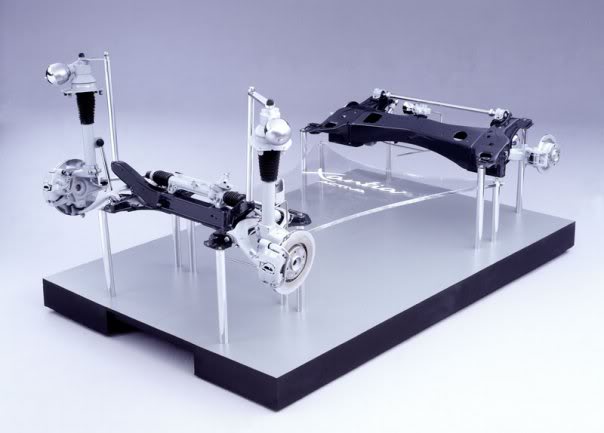

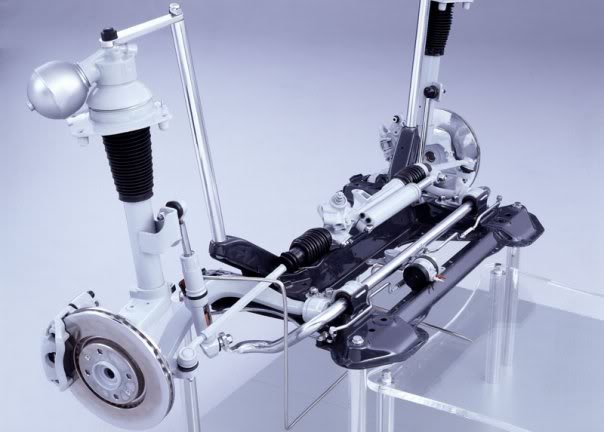

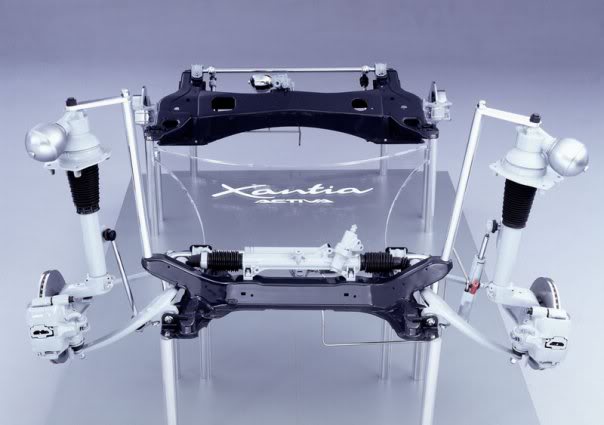

Found these images on the Activa facebook fan group page. They're quite interesting pictures!
