Xantia bonnet release is broken; how do I spring it?

Post by jonathan_dyane »

My bonnet release seems to have failed which is rather irritating and I can no longer open my bonnet. The cable within the car feels slack, so I suspect the fault lies under the bonnet.

Has anyone been here before, because I'd love some guidance before I start ripping things off to try and get the thing open. The car has the first grille with chevrons on the bonnet if that makes a difference.
Jonathan
1986 Mercedes Benz 190D 2.5
1979 GS 1220 Club Estate awaiting more welding
1952 David Brown 30D awaiting new liners
andmcit
Posts: 4299
Joined: 03 Mar 2005, 17:59
Location: Swansea - South Wales
My Cars:
x 30

Post by andmcit »

Hi Jonathan,

the cable does sound stretched but I'd still persevere trying to lever the
current bonnet release as they sometimes need a good tug and even to
the point where it feels about to snap. The catch is well protected from
leverage and devious means and there's no real quick fix even should
you remove the wheel and try tackling the engine bay from the wheelarch
with the liner removed.

I recall other past Citroen models having a long rod strategically fed into
the bowels of the grille/engine bay and a hot spot is tipped to pop the
bonnet but I believe the Xantia is from an era of paranoid protection.

I'll have a quick looksee into the engine bay of one of mine to see if I can
determine potential avenues of attack as it's something that you obviously
aren't able to do yourself and we'll see if there's any good news!

ttfn,
Andrew
andmcit
Posts: 4299
Joined: 03 Mar 2005, 17:59
Location: Swansea - South Wales
My Cars:
x 30

Post by andmcit »

The design is similar to a GS although a joint on the cable sits above the
passenger headlight whereas the G has one on the inner wing.

This release cable runs around from the nearside inner wing round above
the passenger side headlamp and is braced onto a shoulder moulded into
the back of the light where the inner release cable is then fed onto one of
two catches siameased together by a solid rod.

Access to any part of this from the outside past a closed bonnet DOES look
very challenging. The only point I can see is the marginal gap between the
passenger light and the grill but there isn't a direct route to the cable. I'm
not sure if in desperation a chunk of the grill would need breaking away
which sounds totally drastic and faintly ridiculous...

what colour is your Xantia as a green one is currently on ebay!!? Unless the
car is a non runner and/or needs a battery at least you could admit defeat
and drive it to a specialist who may have seen this before and even have
the hint book written by Citroen and kept secret!!

Unless your inner cable has snapped which I would be surprised to see,
the best course of action is to try and jostle the cable whilst an assistant
tries springing the nose of the bonnet to release the pressure on the catch
whilst the cable is being pulled - I've seen this work on a GS.

Andrew
vince
Posts: 1409
Joined: 22 May 2008, 22:29
Location: oldham
My Cars:
x 13

Post by vince »

From what ive been told you have to get in through smashing the grill or removing the bumper if thats possible.

Good luck
1993 Citroen xm 2.1td, silver/grey, bowling ball wheel trims, 210k and climbing...
andmcit
Posts: 4299
Joined: 03 Mar 2005, 17:59
Location: Swansea - South Wales
My Cars:
x 30

Post by andmcit »

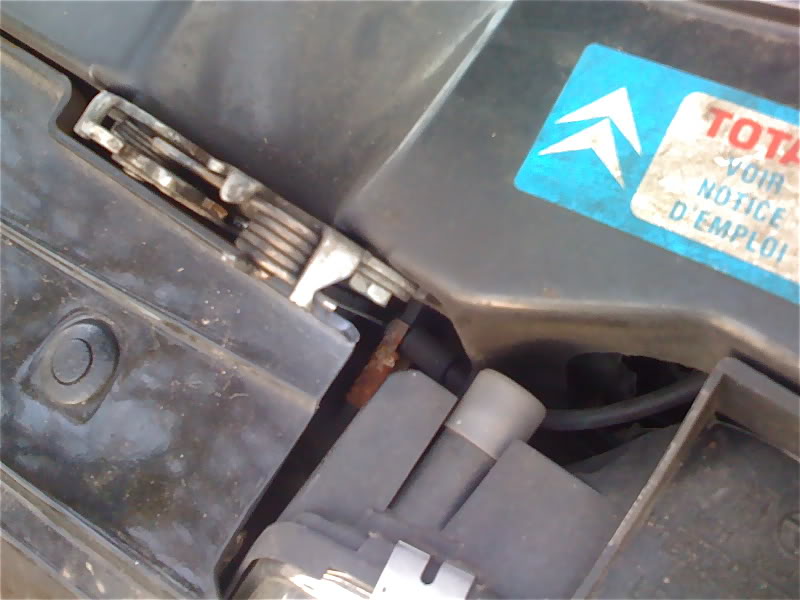

This appears to be the point of attack as everything beyond is it substantial
