C5 2.2 HDI Aux Belt

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
fred1
Posts: 167
Joined: 28 Oct 2005, 16:59

C5 2.2 HDI Aux Belt

Unread post by fred1 »

Hi,

Anyone have a diagram showing the route for the Aux Belt for on 2.2 HDi with aircon.

Belt "fell off when changing alternator before I could memorise the layout !!!

John
Top
nick
Posts: 1079
Joined: 14 Mar 2001, 01:49

Unread post by nick »

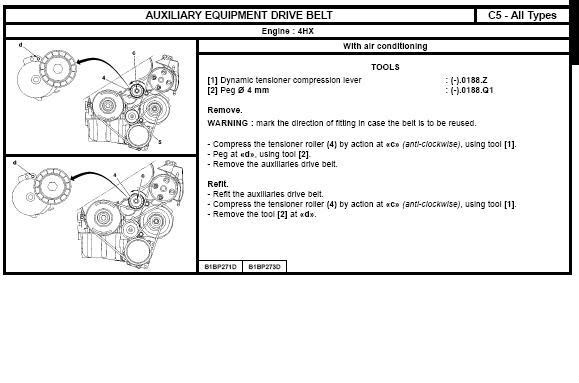

Hi, hope this helps!

Top
fred1
Posts: 167
Joined: 28 Oct 2005, 16:59

Unread post by fred1 »

Hi Nick,

Many thanks just the thing!

John
