Im looking into replacing the LEDs in my 3030 stereo as a few of them appear to be dead and what with them being placed in series, once one has gone, all of them have.
While I was checking them I presumed, being Light Emitting DIODES, that they would only accept current in one direction...a couple of them would some a little resisance both ways and all of the others had an infinate amount of resisance both ways.
I've had a look at the online Maplin Catologue at 3mm 12v LEDs and they look a bit of a different shape. The ones in the radio look more like mini versions of the bulbs in the interior lamps - the fact that that they accept current in both ways also makes me think this.
Can anyone with a bit more electronics knowledge confirm or not?

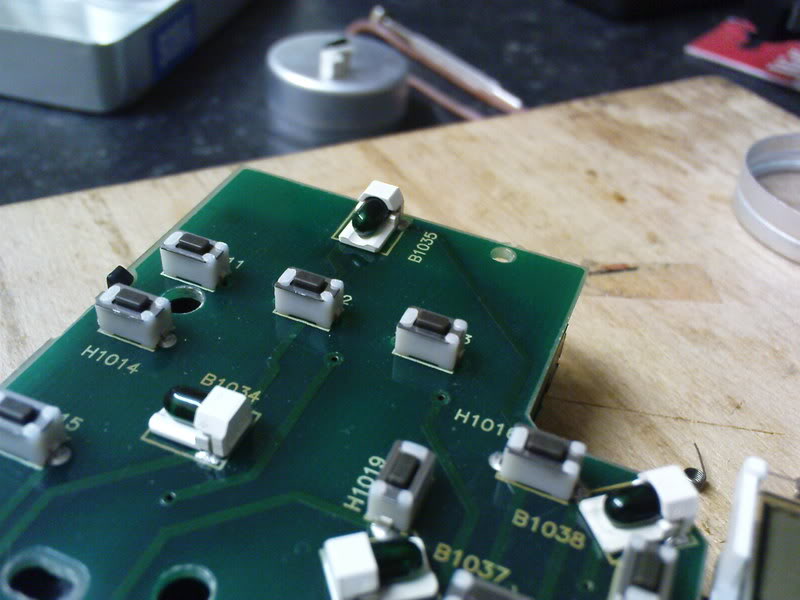

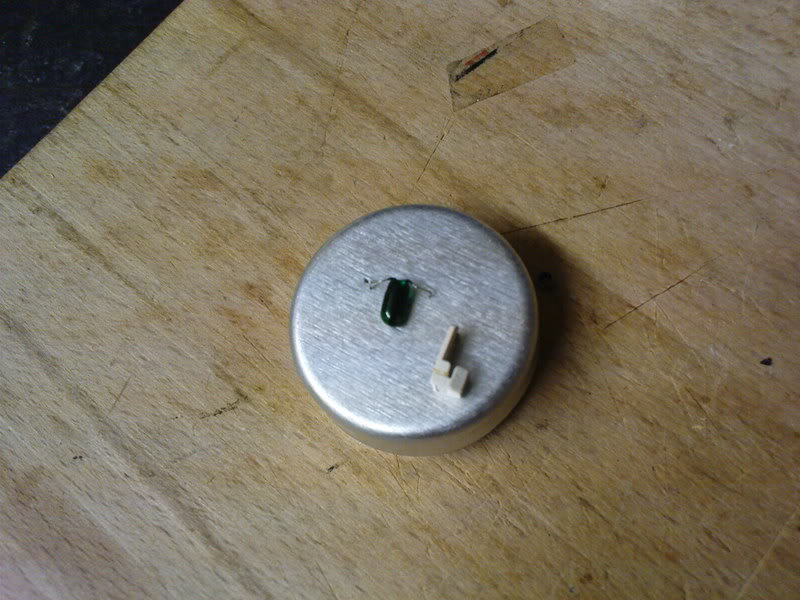

Heres a couple of photos:
Blaupunkt Xantia radio illumination LEDs
Moderator: RichardW
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
Blaupunkt Xantia radio illumination LEDs
Kev
'19 C4 Cactus 130 Flair
'19 C4 Cactus 130 Flair
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
I have the same problem with mine but am wary about removing the circuit board. Does it just lift out after removing the screws ? How are the bulb units fitted. Are they soldered or push in ?
Thanks
Thanks
98 Xantia Mk2 2.0 16v Auto Exclusive 160k + Now gone to Citroen Heaven
2004 C5 Mk 1 2.0 8V VTR Estate - current. Now with leather.
2004 C5 Mk 1 2.0 8V VTR Estate - current. Now with leather.
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
Hihirsty wrote:I have the same problem with mine but am wary about removing the circuit board. Does it just lift out after removing the screws ? How are the bulb units fitted. Are they soldered or push in ?
Thanks
Do you have the Blaupunkt or Clarion unit?
Looks like there will be another writeup once I've finished taking some more pictures for the ABS one
Regarding the BP unit, everything is torx'd together using tiny bits and clips, Clarion have gone for phillips 'drivers.
All the illumination bulbs regardless of Clarion or Blaupunkt are soldered direct to the board. Now I've got my proper electronics soldering iron for Christmas, de/soldering PCBs has been a lot easier, been doing a lot of practicing
If you don't fancy doing the job yourself, I'd be more than happy to do the job for you
Kev
'19 C4 Cactus 130 Flair
'19 C4 Cactus 130 Flair
- CitroJim
- A very naughty boy
- Posts: 49662
- Joined: 30 Apr 2005, 23:33
- Location: Paggers
- My Cars: Bluebell the AX, Polly the C3 Picasso, Pix the Nissan Pixo, Propel the duathlon bike, TCR Pro the road bike and Fuji the TT bike...
- x 6208
- Contact:
Got another customer here for you Kev I have two rapidly going over to the "Dark Side" myselfred_dwarfers wrote: If you don't fancy doing the job yourself, I'd be more than happy to do the job for you
Jim
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
Runner, cyclist, time triallist, duathlete, Citroen AX fan and the CCC Citroenian 'From A to Z' Columnist...
-
- (Donor 2020)
- Posts: 2504
- Joined: 29 May 2008, 15:59
- Location: Zomerzet UK
- My Cars:
- x 54
Whoops, just read your replycitrojim wrote: Got another customer here for you Kev I have two rapidly going over to the "Dark Side" myself
Of course Jim Let me know when you want them done
The new bulbs arrived a few days ago but i've been ill. I've been feeling good enough to do them this morning so cracked on with it. Before I did anything, I tested all 12 bulbs and found that one was DOA. Half of the family have popped into Exeter today so have kindly swapped that one with the single one Maplin had in stock

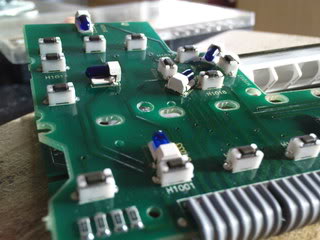

I've nearly finished soldering the new bulbs on my 3030 and as you can see, I've been a bit experimental with the colour of the bulb
If all goes well, it should be all back together by the end of the day and I can test it out and see whether the choice of colour was a wise one
I did write all that earlier on in the day but had a bit of trouble getting into the forum.
