Quickie

rossnunn · Unread post by **rossnunn** » 27 Jul 2007, 20:15

Does anyone have a technical drawing / exploded diagram of the ZX pedal box.
No PR.net & I forgot to 'borrow' one before it went poop

Unread post by **CitroJim** » 27 Jul 2007, 21:45

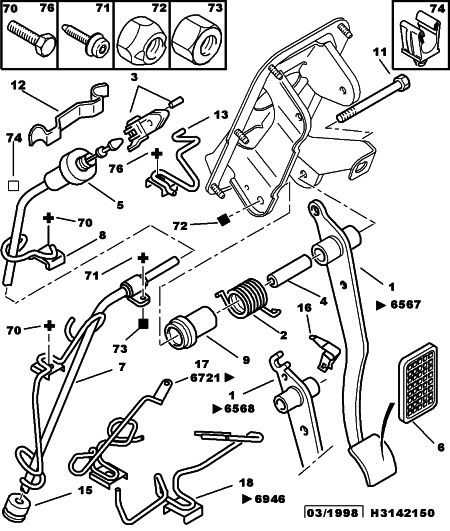

How will this do Ross?

I can also do you one of the brake pedal if you so need

rossnunn · Unread post by **rossnunn** » 27 Jul 2007, 21:46

thats brill, do you have the auto brake pedal??

Unread post by **CitroJim** » 27 Jul 2007, 21:47

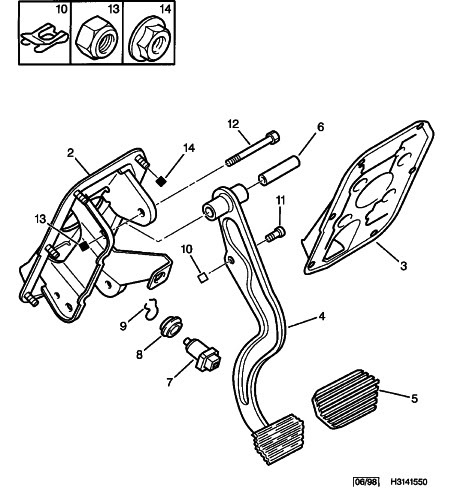

In fact here is the brake pedal Ross...

rossnunn · Unread post by **rossnunn** » 27 Jul 2007, 21:49

thats great, thanks a million.

Do you know if both pedals are mounted on the same backplate or a seperate plate each?

Unread post by **CitroJim** » 27 Jul 2007, 21:50

rossnunn wrote:thats brill, do you have the auto brake pedal??

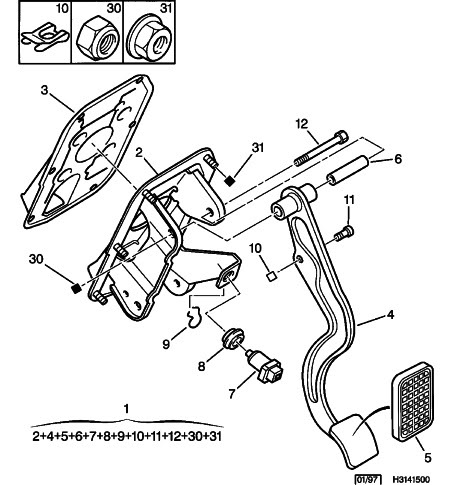

Yep...

rossnunn · Unread post by **rossnunn** » 27 Jul 2007, 21:53

what a star, cheers dude

Unread post by **CitroJim** » 27 Jul 2007, 21:54

rossnunn wrote:thats great, thanks a million.

Do you know if both pedals are mounted on the same backplate or a seperate plate each?

Looks to me the same one, I know nothing of the ZX but it looks like the pedals are mounted one above the other

Looking further at pr.net they only show a part number once for the brake pedal backplate but the clutch pedal seems to be mounted on the same plate as the part no. is not repeated on the clutch diagram which suggests it is the same.

rossnunn · Unread post by **rossnunn** » 27 Jul 2007, 21:57

oks cheers dude
