2016 C4 Picasso Abs, esp, parking brake and tyre inflation monitor faults showing

[GiveMeABreak]

Have a look in the wiki - most of the codes are in ascending order in sections:

https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

[garddian]

Thanks.
We are just struggling with no communication to the abs unit and struggling like made to find any wiring diagrams. So any help is gratefully received.

[Dustysweeper]

Thanks.
We are just struggling with no communication to the abs unit and struggling like made to find any wiring diagrams. So any help is gratefully received.

Did you get the problem sorted? Curious as I have this problem after changing a radiator hose.

[GiveMeABreak]

Thanks.
We are just struggling with no communication to the abs unit and struggling like made to find any wiring diagrams. So any help is gratefully received.

I still think this is going to be fruitless without first double checking your diagnostic interface is working correctly. I've never had this issue before where the diagnostic tool will not connect - unless the interface, wiring or software is the issue. You really need a fault code to start narrowing things down.

[stefanorangeart]

@GiveMeABreak

The info you posted a few posts up is very handy. I wonder if you have a similar photo to that showing where the wiring goes to the loom connector that also shows the wiring to the ABS control ECU?

Thanks
Stefan

[GiveMeABreak]

@Stefan. I'll have to have a check, but will need your VIN as diagrams are vehicle-specific (please post your VIN in full without spaces - it will be automatically masked from public view after submitting your post & will only be visible to staff). I'll then be able to have a check.

[stefanorangeart]

Thanks VIN is

VF7**************[VIN obfuscated, can be read by forum staff]

Many thanks, be great to get this sorted out without ripping the car apart to find the wiring

[GiveMeABreak]

Not sure if this is what you mean but this is the only illustration showing where the loom routes to the ESP ECU.

[stefanorangeart]

That's great, thanks, it doesn't seem to show any further connectors getting the signal from the loom and into the ESP control then. Thanks for your help, I'm sure this is enough info now for me to get started.

I'll report back if I fix it. I changed the sensor already which made no difference, started to trace the wiring but when itt seemed to go up under the tank, I decided to have a look what the internet said rather than struggle and this post popped up. Very informative. Thanks.

[GiveMeABreak]

There are of course interconnections for the looms where they join, but just focus on the wiring code not the colours.

[tlove4]

Hi,
I am looking at a very similar issue. The pic showing where ICK5Di is isnt displaying, could anyone repost?

Trev

[GiveMeABreak]

What is it you are looking for specifically, as diagrams are vehicle, equipment and option specific. There is no ICK5D "i"

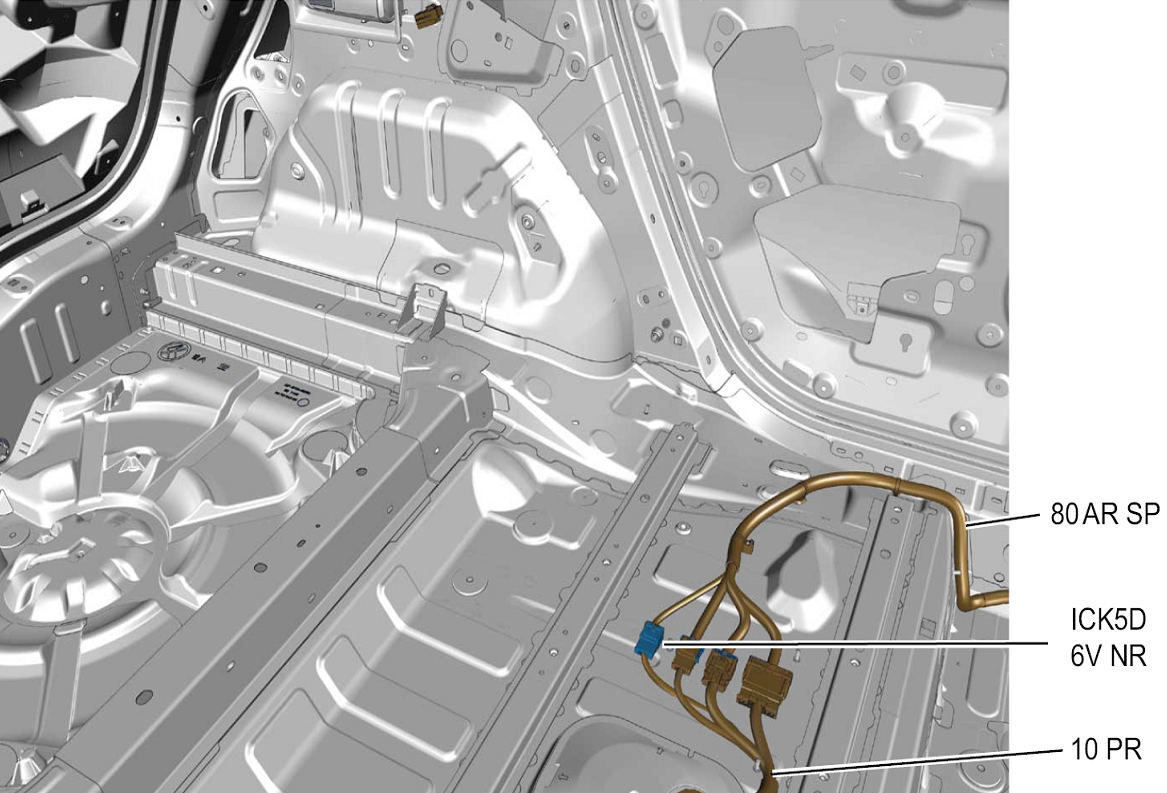

But this is the location of ICK5D which connects the Rear Left and Right Wheel Speed Sensors to the main harness.

[tlove4]

Hi
That's exactly what is was looking for, thks!

"i" was a fat thumbs typo.

[GiveMeABreak]

No worries. Not sure what happened to the other image, but I've corrected it now (not that it showed what you needed)!

[Byngo9]

I'm preparing to fault find the same issues and wanted to check the ABS ECU connector for water ingress at least, so is it on the front drivers side please?
