54 C3 1.4HDI non-start FIXED
-
- Posts: 4808
- Joined: 11 Jun 2007, 16:17
- x 233
Re: 54 C3 1.4HDI non-start
Oooh, this is fun.

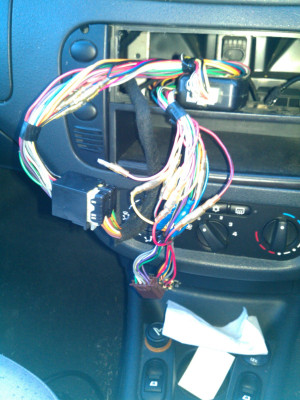

Pulled the radio out and found a nest of wires with a lot of bullet connections (a couple not terminated) and two black boxes.
I think I found the insurance tracker and removed it.
Alas, it seems to have made no difference. Tried another BSI reset, substituting the hazards for the sidelights, but still the same.
Lexia reports there's still a BSI permanent fault of "Communication fault with the switch module at the steering wheel ECU"
I cleared the Instrument Panel (DATAB) fault last session so it's showing as NO faults (for now!).
While in there, I trawled through many BSI parameters and settings and all seems normal (except it reported the front left door status as "???").
I could even actuate all the lights (except the sides) and wipers etc. So the COM 2000 certainly is being a naughty boy and will be checking power connections next.
Needless to say, I could get no dialogue with the "COM 2002" Switch Module ECU.
Pulled the radio out and found a nest of wires with a lot of bullet connections (a couple not terminated) and two black boxes.
I think I found the insurance tracker and removed it.
Alas, it seems to have made no difference. Tried another BSI reset, substituting the hazards for the sidelights, but still the same.
Lexia reports there's still a BSI permanent fault of "Communication fault with the switch module at the steering wheel ECU"
I cleared the Instrument Panel (DATAB) fault last session so it's showing as NO faults (for now!).
While in there, I trawled through many BSI parameters and settings and all seems normal (except it reported the front left door status as "???").
I could even actuate all the lights (except the sides) and wipers etc. So the COM 2000 certainly is being a naughty boy and will be checking power connections next.
Needless to say, I could get no dialogue with the "COM 2002" Switch Module ECU.
-
- (Donor 2020)
- Posts: 1218
- Joined: 01 Jul 2017, 21:48
- x 127
Re: 54 C3 1.4HDI non-start
What a nightmare. Any evidence the insurance tracker has been installed incorrectly?
Do these 'black boxes' access the ECU's directly (through the VAN network perhaps) to snoop on speed etc or is it all done via GPS ?
Do these 'black boxes' access the ECU's directly (through the VAN network perhaps) to snoop on speed etc or is it all done via GPS ?
-
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6919
Re: 54 C3 1.4HDI non-start
It is supposed to be done via GPS Elis, depending on the type - but I don't trust them and would never have anyone touch the wiring from a third party source - I have no faith in these installer's abilities to understand the car's systems and do the job properly - and guaranteed there will be no comeback trying to shift the blame to the Insurance company I'll bet!
@Mike:- that looks a right spaghetti boloknese in there - what a mess! What are those connectors going into what looks like the radio Quadlock connector? That doesn't look right at all.
I could let you have a few pics of our C3's RD4 connections tomorrow - it is a later CAN version of the C3, but has the RD4 radio system. You have the RD3, but it might at least give you some pointers.
@Mike:- that looks a right spaghetti boloknese in there - what a mess! What are those connectors going into what looks like the radio Quadlock connector? That doesn't look right at all.
I could let you have a few pics of our C3's RD4 connections tomorrow - it is a later CAN version of the C3, but has the RD4 radio system. You have the RD3, but it might at least give you some pointers.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2020)
- Posts: 1218
- Joined: 01 Jul 2017, 21:48
- x 127
Re: 54 C3 1.4HDI non-start
Fully agree Marc. I only trust myself with my car's wiring. I think you have to be pretty electronically sympathetic with these cars as they're more mobile computer networks above everything else.
Apparently some cars on finance have these black boxes too; they can disable the car remotely should the terms of the finance be broken. Scary!
Apparently some cars on finance have these black boxes too; they can disable the car remotely should the terms of the finance be broken. Scary!
-
- Posts: 7586
- Joined: 21 Sep 2002, 19:07
- x 949
Re: 54 C3 1.4HDI non-start
Thats not an insurance black box, thats a handsfree kit (nokia if im not mistaken). The smaller box is a telemute loom to route the telephone calls through the cars own speakers.
-
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6919
Re: 54 C3 1.4HDI non-start
That’s interesting, but we do know that there was a black box insurance device fitted too according to th OP in the original thread, so where is that if not this then I wonder?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 7586
- Joined: 21 Sep 2002, 19:07
- x 949
Re: 54 C3 1.4HDI non-start
The older VAN/CAN C3 uses an ISO connector rather than quadlock type for the radio. It may just look worse than it is in there & quite normal to have unconnected terminals to fit different configurations. They are definitely compatible (if fitted correctly) as i have fitted hundreds of them.
There is a chance it may have gone faulty so best to remove it completely for the time being at least.
All you should be left with is the wiring i have highlighted in yellow.
There is a chance it may have gone faulty so best to remove it completely for the time being at least.
All you should be left with is the wiring i have highlighted in yellow.
- Attachments
-
-
- Posts: 7586
- Joined: 21 Sep 2002, 19:07
- x 949
Re: 54 C3 1.4HDI non-start
GiveMeABreak wrote: 11 Aug 2018, 09:04 That’s interesting, but we do know that there was a black box insurance device fitted too according to th OP in the original thread, so where is that if not this then I wonder?
Every insurance Black box i have ever seen is either plugged straight into the OBD socket or a 2 wire connection direct to the battery then just cable tied or double sided tape straight onto the battery or battery box. The straight onto battery one seems more common.
-
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6919
Re: 54 C3 1.4HDI non-start
Here are the Audio Connections:
Code | Colour | Description |
CV00 | N/A | COMMS Unit |
BECEZ | Blue | Battery + BSI |
XC1B | White | Body VAN 1 |
9013Z | Mauve | body 1 Van data bus 1 |
9012Z | White | body 1 Van data bus 1 |
MCV0B | Green / Yellow | MC30 earth |
6V GR | Grey | 6 Pin Connector |
Code | Colour | Description |
8V NR | Black | 8 Pin Connector |
8410 | N/A | Audio Unit |
9004E | Red | Comfort Van data bus / |
9005E | Green | Comfort Van data bus B |
XE15D | Brown | Comfort VAN |
8454A | Orange | Ampli + switch command |
BECE2 | Green | BSI + after ignition output |
M8410 | Green / Yellow | MC34 Earth |
The BSI where the above connections go |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 7586
- Joined: 21 Sep 2002, 19:07
- x 949
Re: 54 C3 1.4HDI non-start
So pin 5 on the grey connetor of the com2000 should be permanent live, pin 4 should be earth & pin 6 should be 12v when the network is awake. Pins 1&2 are the data & data/ wires, you wont get much out them without a scope.
A wiring diagram for the headlamps should give us the rest of the wiring info we need for the time being.
A wiring diagram for the headlamps should give us the rest of the wiring info we need for the time being.
-
- Posts: 4808
- Joined: 11 Jun 2007, 16:17
- x 233
Re: 54 C3 1.4HDI non-start
Sorry I was a bit vague yesterday, let me clarify.
As wheeler says, the fitted Clarion RD3 takes what I understand are two ISO connectors (plus antenna), not quadlocks.
The harness looks like a typical ISO adapter harness.
The larger black box, as wheeler has correctly identified, is labelled as a Nokia HFU-5 (hands-free kit).
The speaker and antenna wires were cut and unconnected.
Also connected within the harness is a smaller black box, label illegible so I cracked it open to see what's inside.
Again, I think wheeler has correctly identified it as the "mute" device.
As wheeler says, the fitted Clarion RD3 takes what I understand are two ISO connectors (plus antenna), not quadlocks.
The harness looks like a typical ISO adapter harness.
The larger black box, as wheeler has correctly identified, is labelled as a Nokia HFU-5 (hands-free kit).
The speaker and antenna wires were cut and unconnected.
Also connected within the harness is a smaller black box, label illegible so I cracked it open to see what's inside.
Again, I think wheeler has correctly identified it as the "mute" device.
-
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6919
Re: 54 C3 1.4HDI non-start
Pins 1 & 3 are the data & data/ wires.wheeler wrote: 11 Aug 2018, 13:43 So pin 5 on the grey connetor of the com2000 should be permanent live, pin 4 should be earth & pin 6 should be 12v when the network is awake. Pins 1&2 are the data & data/ wires, you wont get much out them without a scope.
A wiring diagram for the headlamps should give us the rest of the wiring info we need for the time being.
I'll get the headlamp one up shortly.
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6919
Re: 54 C3 1.4HDI non-start
So the hunt is on for the black insurance box then if we're sure it now has one fitted??
Please Don't PM Me For Technical Help
Marc
Marc
-
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6919
Re: 54 C3 1.4HDI non-start
Headlamps Comms Unit: - very similar
Code | Colour | Description |
6V GR | Grey | 6 Pin Connector |
MCV0B | Green / Yellow | MCV00 earth |
9013Z | Mauve | body 1 Van data bus 1 |
9012Z | White | body 1 Van data bus 1 |
BECEZ | Blue | BSI + after ignition output |
XC1B | White | 1 body VAN 1 |
Please Don't PM Me For Technical Help
Marc
Marc
-
- Posts: 7586
- Joined: 21 Sep 2002, 19:07
- x 949
Re: 54 C3 1.4HDI non-start
Sorry that was a typo, there is no pin 2 on the diagram.
I take it fuse 4 in the BSI is ok & there is a live supply at it ??
I take it fuse 4 in the BSI is ok & there is a live supply at it ??
