Egr. Citroen 1,4 hdi

[95oktan]

Hi. does anyone know where the egr valve is located anywhere on my Citroen nemo 2009. 1.4 diesel.
I've looked a little on youtube and google but I can't find anything about this particular engine.

[GiveMeABreak]

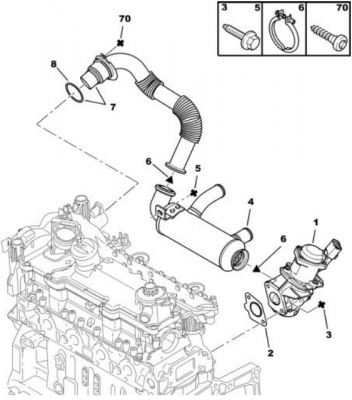

Item 1 below, back right of the engine.

[Tilly]

Anyone tell me the purpose of item 4 ? Is it a cooler ? I have an exhaust leak from the area of the EGR, not an easy place to see a leak with everything in place.

[RichardW]

Yes, it's a cooler.

[Tilly]

Thanks for that. Noticed a chuffing noise on acceleration, and within a day or two, Im getting fumes in the cabin, and smoke from under the bonnet. Theres also oil and soot in the area of the EGR valve. Im thinking a sealing connector or flange has rotted out, and will need replacing. Got the MOT soon, so its going to be a weekend job... Will order a new EGR valve in advance, so I can at least have that ready for replacement. Bit of a ball ache to remove the ancilleries for access, so Im going to replace the fuel filter as well, as its been 40k miles since it was last done.

[Tilly]

Turns out it was a loose EGR valve. Bolts are 8mm spanner. Luckily just needed a nip up, rather than replacing at this stage.

[ohspecial1]

Hi did you manage to get to the egr valve
As believe mine is sooty

[Tilly]

Yes, I got to the bolts, but didnt replace the EGR valve, I just nipped up the bolts. Its still sitting in its box.

[Paul-R]

Did that sort your problem out? Just tightening the bolts?
