Peugeot 1007 gearbox fault

[JOE+TECH]

Hi could do with a bit of help please
Got peugeot 1007 2006 with auto/manual gearbox, been driving ok stop to go into shop ,started ok sort of jumped forward stopped
Now not crank or start,got it in neutrol towed it home
On testing it fault present = No communication with engine on gearbox test, cant see what position the gear is so not allow to start
I would like if possible a wiring diagram for gearbox to help check out powers,earths + can for comms fault
Vehicle is 2006 Peugeot 1007 petrol
VIN No VF3**************[VIN obfuscated, can be read by forum staff]
Thanks JOE
PS may also need engine wiring diagram to fully check wiring between gearbox and engine if gearbox tests ok
Thanks again

[Huskyxantia]

Ecu ? Not to sure on this but does this type of gearbox have an ecu ?, also is it low on oil ? Id say its gearbox ecu that could be your prob

[JOE+TECH]

Thanks for the reply,the 1007 has gearbox ecu mounted on front of gearbox
I would like wiring diagram for gearbox to check powers and earths + can as there is no communication with gearbox engine reports
I had one sent for berlingo similar gearbox ( auto/ manual) but this is petrol engine, in the past.
I have sent the vin so hope you can help
I am sure I can fix with a little help

I will report back with fix
Thanks joe

[Habellin]

Hello. For a 2006 Peugeot 1007 with an automated manual transmission, such symptoms are almost always related not to the transmission itself, but to a lack of power, ground or CAN communication between the engine ECU, transmission control unit and BSI. If the diagnostics show ‘no connection to the engine’ and ‘unknown gear position’, the transmission control unit simply does not allow the engine to start.

[JOE+TECH]

Thanks for the second reply,you are correct the fault needs to have the wiring checked to see where the fault is
that is why I would appreciate a wiring diagram for the gearbox/ engine to be able to check powers earths and can
I have given vin to help
Thanks Joe
IF you could supply wiring diagram I am quite sure I could find fault and fix Thanks

[ozvtr]

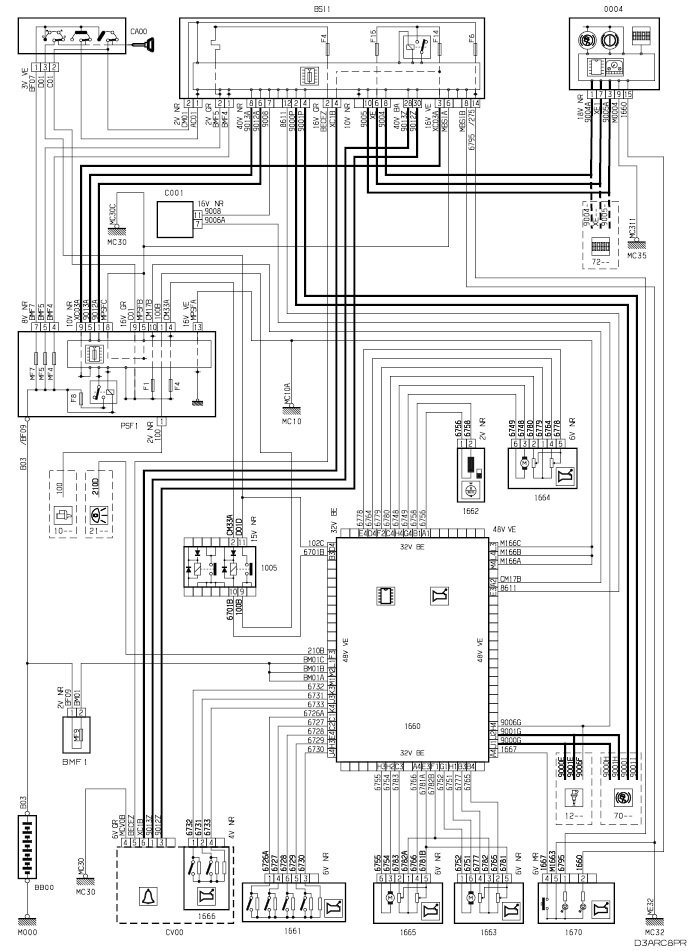

I don't have a diagram for the 1007 but the CAN VAN Citroen C2 should be the same.
The power fuse BMF1 is in the gearbox wiring harness.

[JOE+TECH]

Thanks OZVTR the wiring diagram you sent me was spot on
NO power to the gearbox ecu,fuse was ok
The wiring had been rubbing on gearbox at the front I could see the blue corrosion on harness
opened it up, had to repair 2 wires
Now working fine( fixed before christmas) Thanks to you
Thanks Joe
