C4 Picasso Build Spec

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
swwchris
Donor 2024
Posts: 3
Joined: 01 Dec 2024, 12:46

C4 Picasso Build Spec

Unread post by swwchris »

Hi I have just purchased my first Citroen, a C4 Picasso 1.6HDi Blue Flair.

All seems good with the car and I was helped with updating the maps here, thank you

I am extremely interested in getting hold of the full build spec for the car if this is easily done, I have tried to search a way to do this myself but without success.

The cars vin is - VF7**************[VIN obfuscated, can be read by forum staff]

Thank you for any help you can give
RichardW
Forum Treasurer
Posts: 12440
Joined: 07 Aug 2002, 17:12
x 1432

Re: C4 Picasso Build Spec

Unread post by RichardW »

Here you go

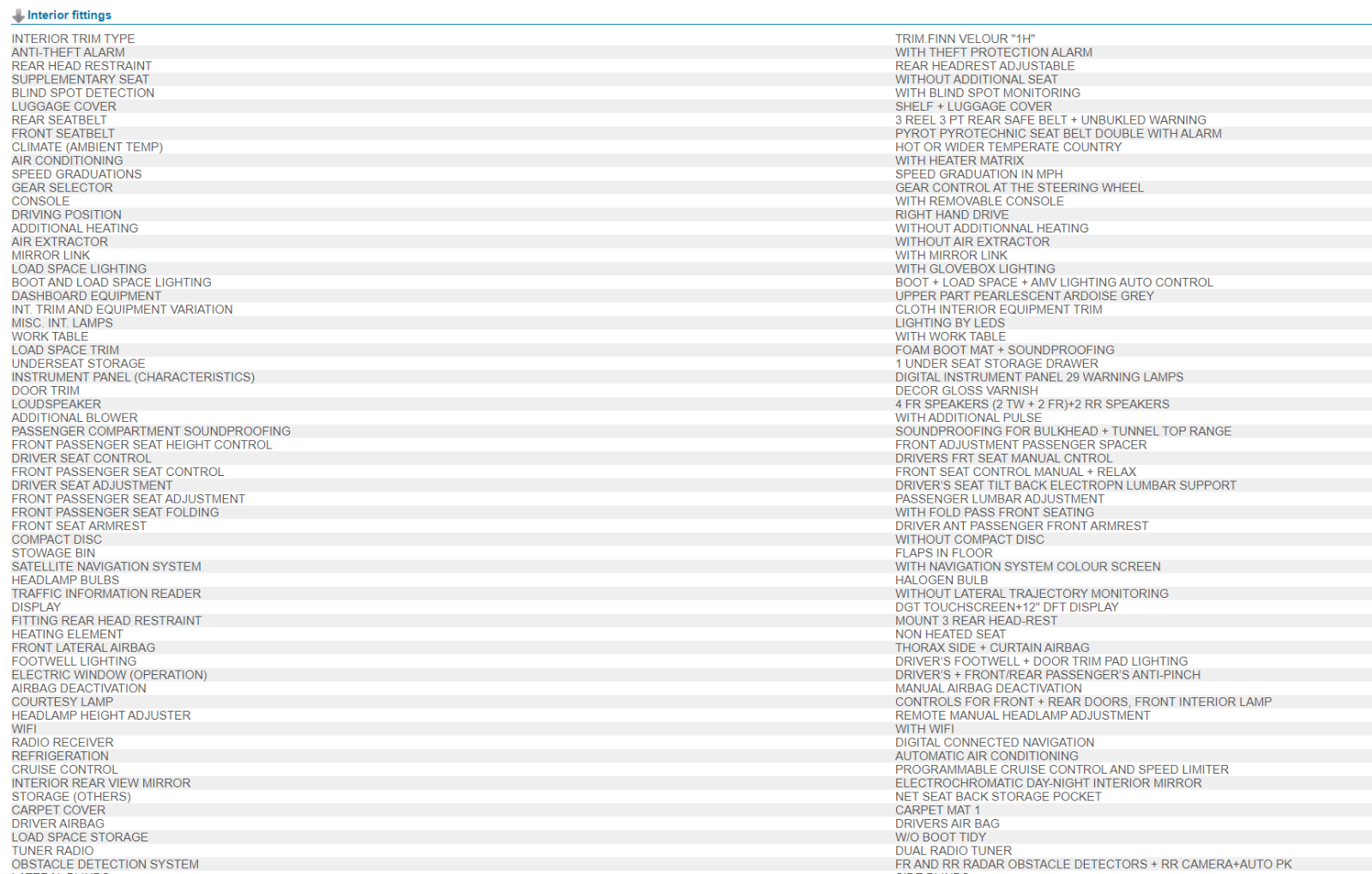

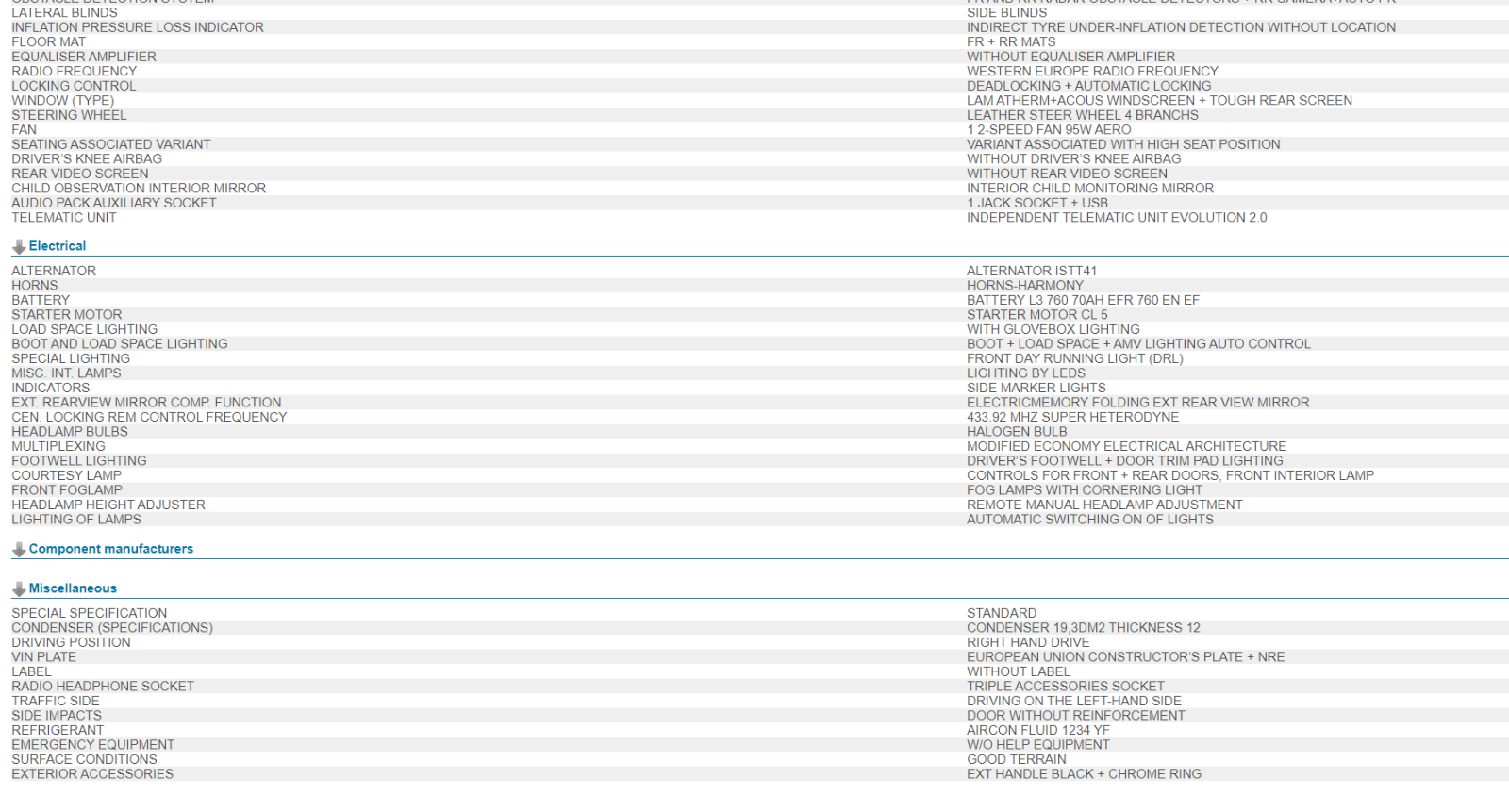

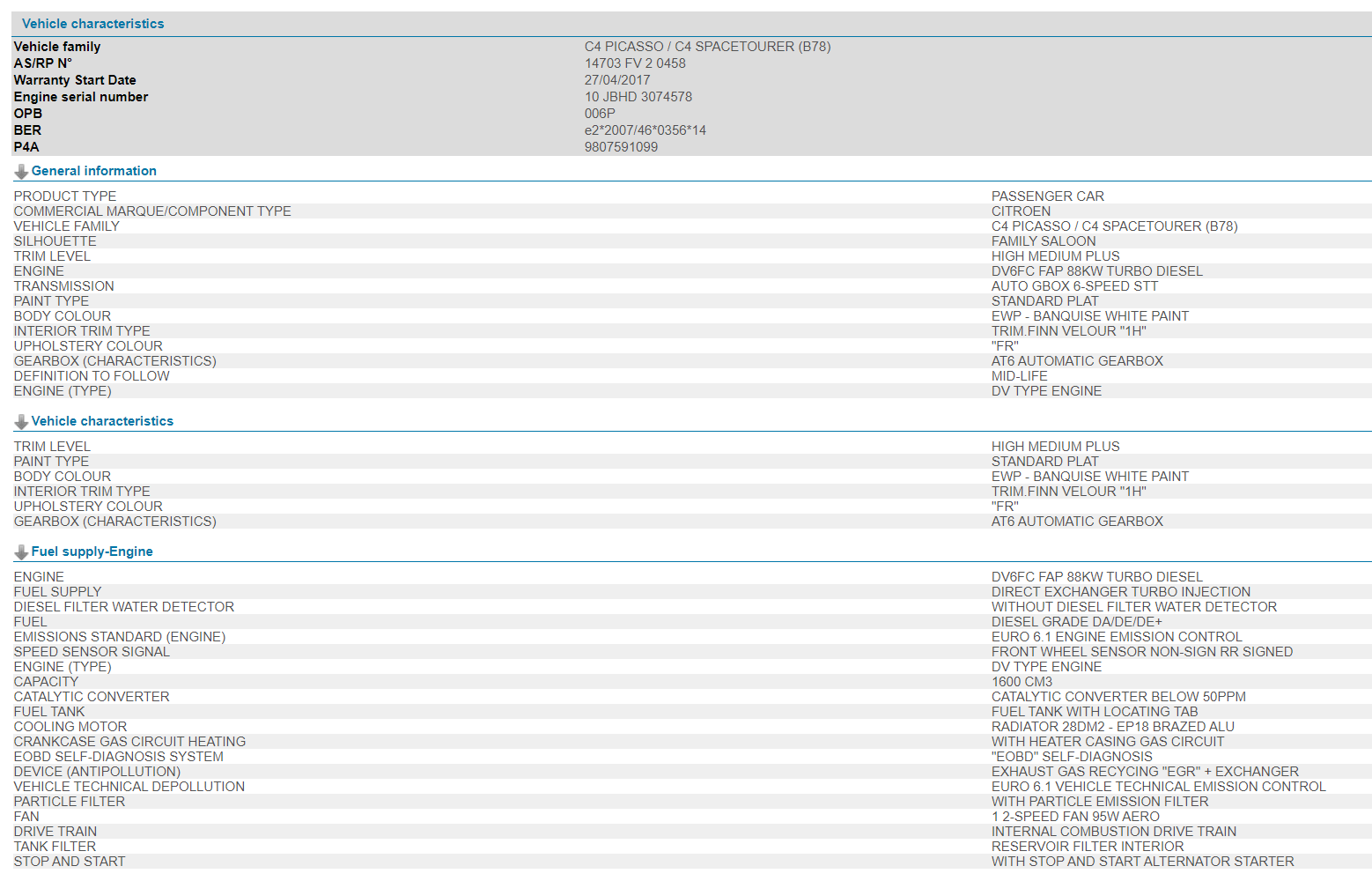

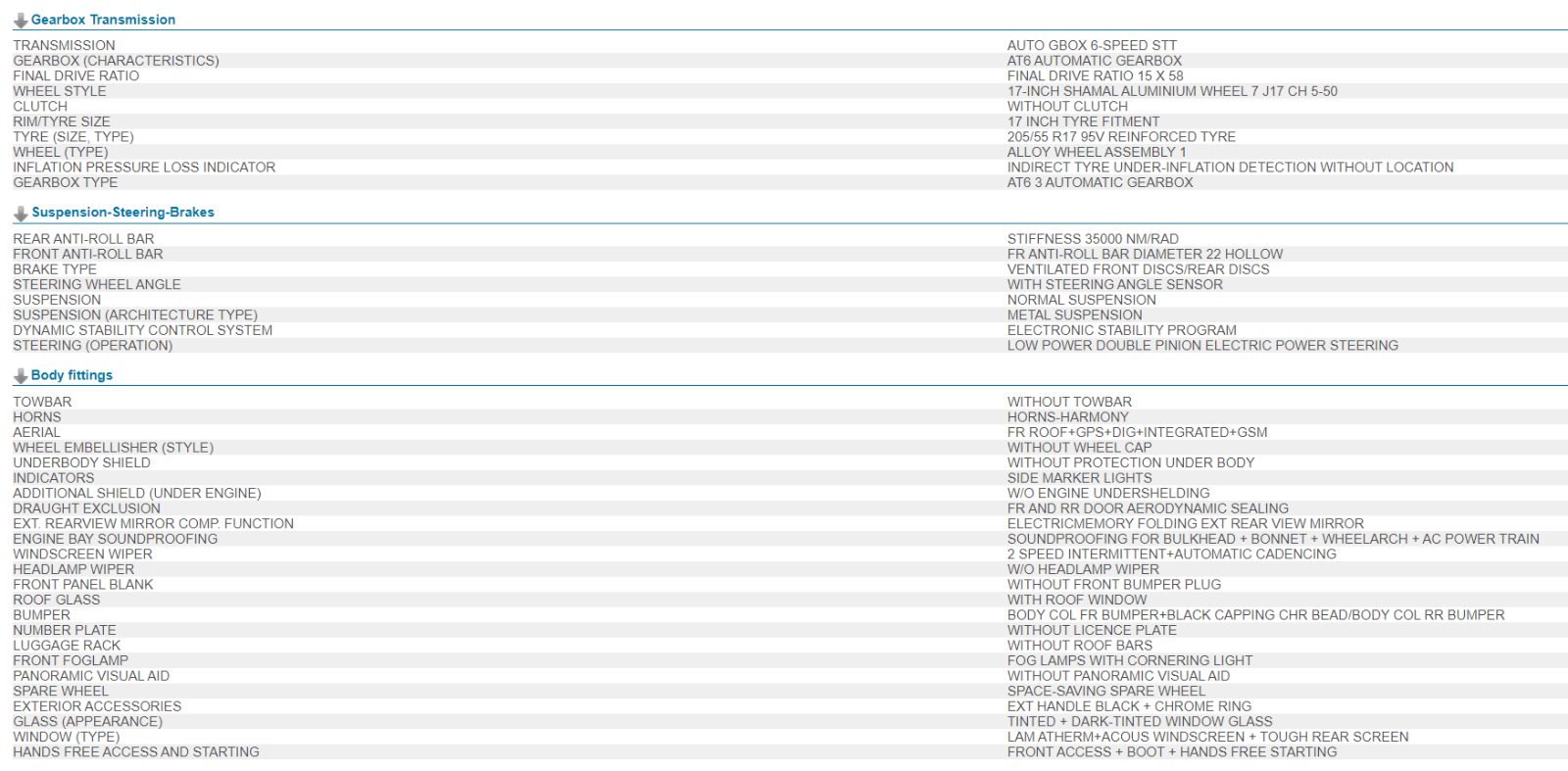

Screenshot 2024-12-08 091637.png
Screenshot 2024-12-08 091707.png

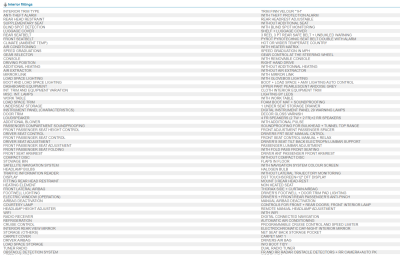

Screenshot 2024-12-08 091748.png

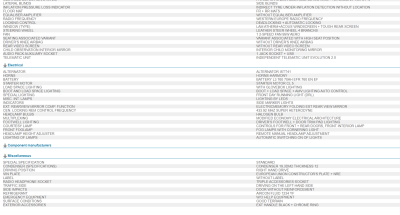

Screenshot 2024-12-08 091826.png
Richard W
swwchris
Donor 2024
Posts: 3
Joined: 01 Dec 2024, 12:46

Re: C4 Picasso Build Spec

Unread post by swwchris »

Thank you especially for doing it so quickly.

Can I possibly ask one single question please

Does this mean I should have the ability to unlock the doors without using the remote key buttons (holding the handle in the correct way)?

Hands Free Access and Starting = Front Access + Boot + Hands Free Starting
RichardW
Forum Treasurer
Posts: 12440
Joined: 07 Aug 2002, 17:12
x 1432

Re: C4 Picasso Build Spec

Unread post by RichardW »

Yes, you should be able to open by pressing the small button on the door handle.
Richard W
