C5 X7 2013 instruments fading
VF7**************[VIN obfuscated, can be read by forum staff]
The instrument panel has been giving me a little problem for quite a few months. It started with the parts of the speedo in the centre going less bright and then coming back as the car warmed up. I don't use the car as much as I used to but today, after being driven for well over an hour it barely became visible.

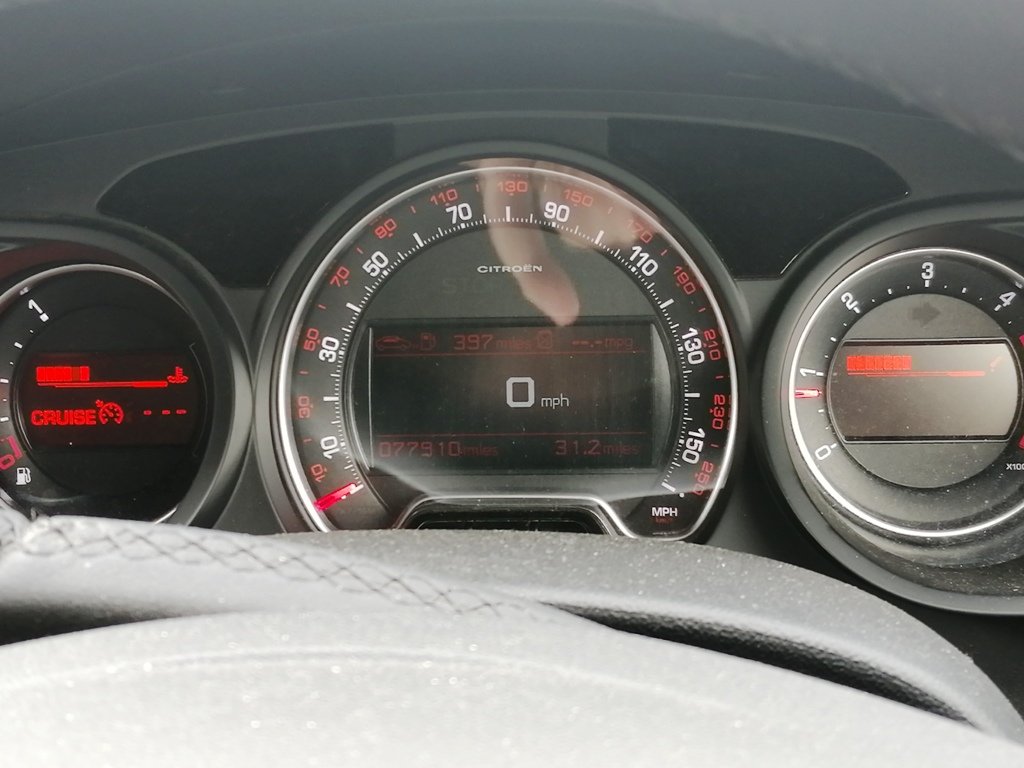

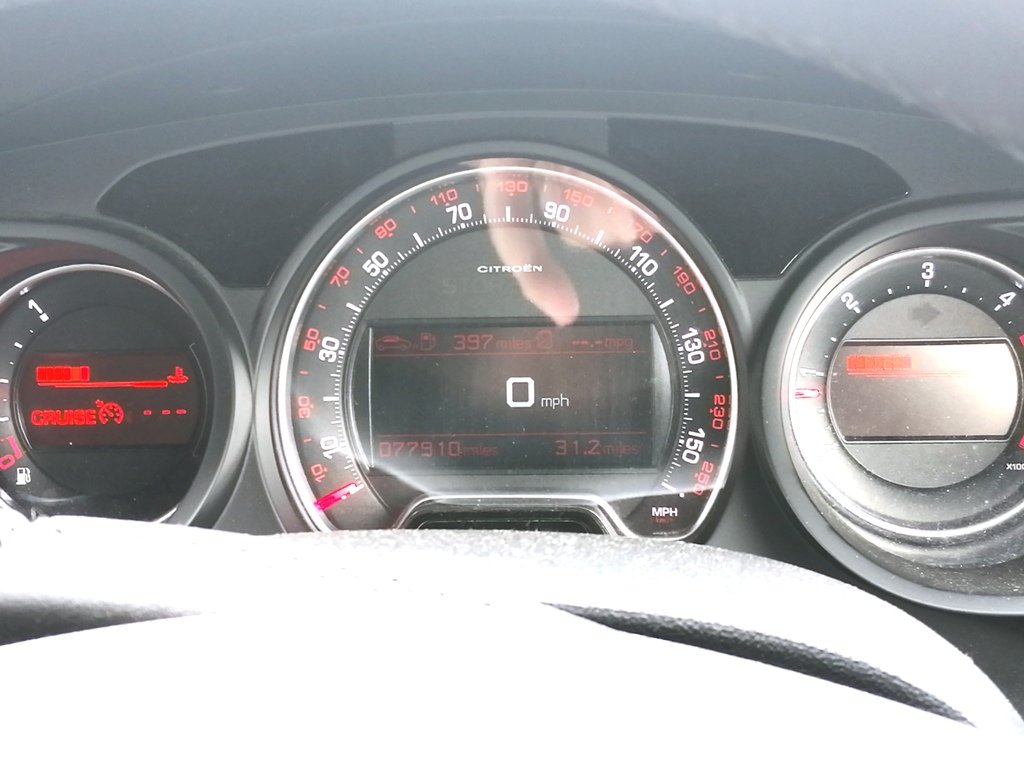

As can be seen in the first photo the white parts are there, although the centre figures are not as bright as they should be. It's the orange bits that are a real problem. The outer Km/h circle is just about visible but everything in the rectangle is unusable. The figures are there in the second photo. By fiddling with the brightness and contrast settings in my photo editor they're a little more visible but obviously this isn't viable on the move
Has this happened to anyone before and did they find a fix? I suspect it might faulty connections. At least I hope it is.
I suspect I'll have to remove the instrument panel. @GiveMeABreak do we have access to instructions for this?
In the first photo you can see that a few segments in the LH red temperature gauge are missing. Earlier in the trip more were missing and later they all came back. That's reasonably new. Only a week or two I think.
The instrument panel has been giving me a little problem for quite a few months. It started with the parts of the speedo in the centre going less bright and then coming back as the car warmed up. I don't use the car as much as I used to but today, after being driven for well over an hour it barely became visible.

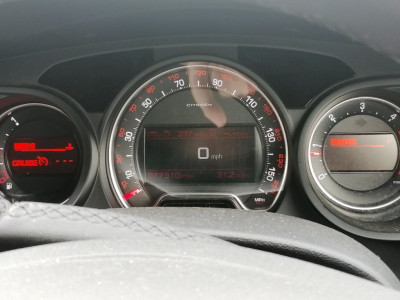

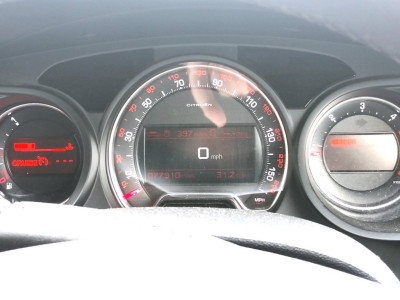

As can be seen in the first photo the white parts are there, although the centre figures are not as bright as they should be. It's the orange bits that are a real problem. The outer Km/h circle is just about visible but everything in the rectangle is unusable. The figures are there in the second photo. By fiddling with the brightness and contrast settings in my photo editor they're a little more visible but obviously this isn't viable on the move
Has this happened to anyone before and did they find a fix? I suspect it might faulty connections. At least I hope it is.
I suspect I'll have to remove the instrument panel. @GiveMeABreak do we have access to instructions for this?
In the first photo you can see that a few segments in the LH red temperature gauge are missing. Earlier in the trip more were missing and later they all came back. That's reasonably new. Only a week or two I think.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
steveclv
- Donor 2024
- Posts: 186
- Joined: 25 Apr 2024, 14:13
- x 40
Re: C5 X7 2013 instruments fading
I don't know if this might help?
-
GiveMeABreak
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6955
Re: C5 X7 2013 instruments fading
Not at present, but I can assemble one for you. I'll update this post with the link when I'm done.Paul-R wrote: 18 Jul 2024, 22:40 I suspect I'll have to remove the instrument panel. @GiveMeABreak do we have access to instructions for this?
Link:
C5 X7 Instrument Panel Removal & Refit
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
Paul-R
- Moderating Team
- Posts: 8962
- Joined: 07 May 2009, 16:24
- x 1856
Re: C5 X7 2013 instruments fading
And copied and pasted. Ta!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
Paul-R
- Moderating Team
- Posts: 8962
- Joined: 07 May 2009, 16:24
- x 1856
Re: C5 X7 2013 instruments fading
Haha, two minutes
IF you've already got the cluster out of the car and...
IF you can work at 1.5 to 2.0 times normal speed and...
IF you have a handy hot air desoldering gun and...
IF you have some white LEDs hanging about and finally...
If you trust yourself soldering surface mount devices.
EDIT
Actually some useful information in the comments about applying power to "pin 1 (+12V) and 3(GND). It will start with no CAN but you will get "---" on displays. CAN is on pin 2 and 4. Pins are numbered on the plug."
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
GiveMeABreak
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6955
Re: C5 X7 2013 instruments fading
Of course the easiest option is replacement, but at a cost for a new one, Part: 9809868180, £1219.92. This is a superseded part number and will require configuring, as the pre-configured instrument panels are no longer available.
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
Paul-R
- Moderating Team
- Posts: 8962
- Joined: 07 May 2009, 16:24
- x 1856
Re: C5 X7 2013 instruments fading
Replacement never entered my head! Especially a new one. Although I doubt configuring a virgin panel is very easy.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
GiveMeABreak
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6955
Re: C5 X7 2013 instruments fading
If considering replacing with a used one - try to get one off the same vehicle, same year, same engine, same gearbox and trim level and remember the mileage will assume the highest between the panel and BSI.
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
steveclv
- Donor 2024
- Posts: 186
- Joined: 25 Apr 2024, 14:13
- x 40
Re: C5 X7 2013 instruments fading
.... or learn to solder surface mounts

Actually you could probably take the circuit board to a local company to get repaired.
Actually you could probably take the circuit board to a local company to get repaired.
-
Paul-R
- Moderating Team
- Posts: 8962
- Joined: 07 May 2009, 16:24
- x 1856
Re: C5 X7 2013 instruments fading
First thing I'm going to do is connect 12v as per the help given in the video replies. See if everything lights up fully. Then a dose of Super Servisol 10 contact cleaner on all the plugs and sockets. Reconnect to car and see if that has done any good. Only then bring out the big magnifying glass to look at the solder joints.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
Paul-R
- Moderating Team
- Posts: 8962
- Joined: 07 May 2009, 16:24
- x 1856
Re: C5 X7 2013 instruments fading
@GiveMeABreak
Any chance you could post the details for lowering the steering column? I'm just not able to ease the instrument panel past the steering wheel.
Any chance you could post the details for lowering the steering column? I'm just not able to ease the instrument panel past the steering wheel.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
GiveMeABreak
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6955
Re: C5 X7 2013 instruments fading
I've been off for a few days and working through a hundred posts at the moment. In know it likely involves removing the driver's knee airbag and other parts, so I'll try and get round to it when I can Paul.
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
GiveMeABreak
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6955
Re: C5 X7 2013 instruments fading
I'll have a look at this Friday for you, but it will take a while as there are three procedures to write up - The Driver's Steering Column Airbag, the Steering Wheel Controls Module and the Steering Wheel, - which may mean recalibrating the steering wheel angle sensor too - but can't say for sure.
Please note, I'm no longer active on the Forum, so won't respond to messages.
Marc
Marc
-
Paul-R
- Moderating Team
- Posts: 8962
- Joined: 07 May 2009, 16:24
- x 1856
Re: C5 X7 2013 instruments fading
I'm hoping that I'll be able to partially lower the column enough without complete dismantling. If not then I have recalibrated the steering wheel angle sensor on my Mk1 C5 years ago and didn't find it very difficult. Hopefully the process will be similar.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
GiveMeABreak
- (Donor 2016)
- Posts: 42019
- Joined: 15 Sep 2015, 19:38
- x 6955
Re: C5 X7 2013 instruments fading
Here you go Paul. The bottom 3 procedures should be linked to in the first procedure, but are listed here separately.
C5 X7 Steering Column - Removal & Refitting
C5 X7 Removing Refitting Driver's Knee Airbag
C5 X7 Steering Wheel Controls Module - Removal & Refitting
C5 X7 Fixed Centred Controls - Removal & Refitting
C5 X7 Steering Column - Removal & Refitting
C5 X7 Removing Refitting Driver's Knee Airbag
C5 X7 Steering Wheel Controls Module - Removal & Refitting
C5 X7 Fixed Centred Controls - Removal & Refitting
