Heyo, happy bank holiday weekend.
I have lost the clamp for my dpf pressure sensor pipe.
Are you able to find that for me? It's a sort of u shape with a bolt that goes through it. It holds a metal line that goes from the dpf to the pressure sensor. Kind regards
VF7**************[VIN obfuscated, can be read by forum staff]
Citroen, DS Automobiles and Peugeot Official Part Number Requests
Moderator: RichardW
-
- Donor 2024
- Posts: 97
- Joined: 02 Apr 2022, 12:51
- x 20
-
- Forum Admin Team
- Posts: 38111
- Joined: 15 Sep 2015, 19:38
- x 5916
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests

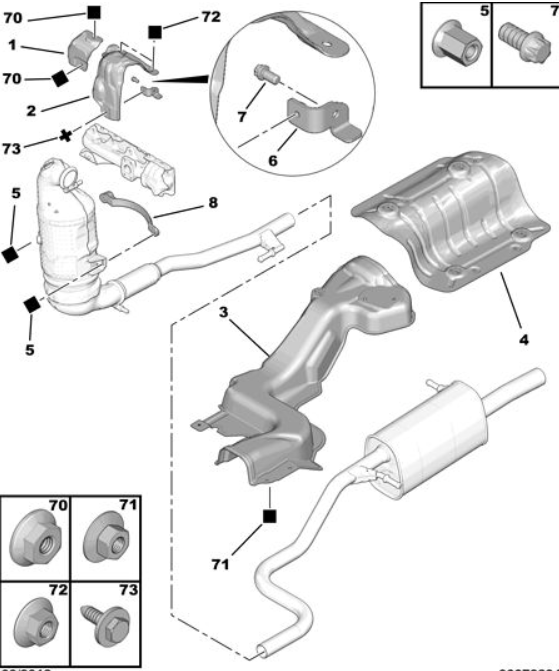

Let me know which item on Diag A or Diag B
Diag A
Diag B
Diag A
Diag B
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 97
- Joined: 02 Apr 2022, 12:51
- x 20
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
Will be Diagram B 71&18
-
- Forum Treasurer
- Posts: 11005
- Joined: 07 Aug 2002, 17:12
- x 1036
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
71 is bolt M6 x 1mm x 20mm (part no 692395 @ £1.46).
18 is the clamp, part no 1714R4 @ £10.73
18 is the clamp, part no 1714R4 @ £10.73
Richard W
-
- Donor 2023
- Posts: 58
- Joined: 29 Jan 2023, 16:26
- x 5
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
Good evening. Looking for par numbers for Anti roll bar bushes and both control arms, may as well change the drop links too.
VF7**************[VIN obfuscated, can be read by forum staff]
Many thanks.
Duncan.
VF7**************[VIN obfuscated, can be read by forum staff]
Many thanks.
Duncan.
-
- Forum Admin Team
- Posts: 38111
- Joined: 15 Sep 2015, 19:38
- x 5916
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
I can't get the OEM Drop Rod Links - they won't allow me to add, so there may be an issue, so these are the alternative and cheaper approved part:
(1) Anti Roll Bar, part: 9802490980, £347.78
(2) Anti-Roll Bar rod, part: 1679755380, £19.78
(5) Nut, part: 9807710580, £0.76
(2) OEM Front Wishbone (Left), part: 9846329780, £121.45
Cheaper Version (Left), part: 1682729680, £40.56
OEM Wishbone (Right), part: 9846329280, £115.46
Cheaper Version (right), part: 1682729580, £47.40
(1) Anti Roll Bar, part: 9802490980, £347.78
(2) Anti-Roll Bar rod, part: 1679755380, £19.78
(5) Nut, part: 9807710580, £0.76
(2) OEM Front Wishbone (Left), part: 9846329780, £121.45
Cheaper Version (Left), part: 1682729680, £40.56
OEM Wishbone (Right), part: 9846329280, £115.46
Cheaper Version (right), part: 1682729580, £47.40
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 12
- Joined: 10 Apr 2024, 23:35
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
Hi gang, can I please get the part numbers for:
aux belt
aux belt idler wheel (the one that bolts through the timing cover)
aux belts
the 3 bolts that hold the harmonic balancer to the end of the crank. Dont suppose you have access to torque specs for this also? Would be awesome if you did
vin is VF3**************[VIN obfuscated, can be read by forum staff]
Many thanks!
aux belt
aux belt idler wheel (the one that bolts through the timing cover)
aux belts
the 3 bolts that hold the harmonic balancer to the end of the crank. Dont suppose you have access to torque specs for this also? Would be awesome if you did
vin is VF3**************[VIN obfuscated, can be read by forum staff]
Many thanks!
-
- Forum Admin Team
- Posts: 38111
- Joined: 15 Sep 2015, 19:38
- x 5916
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
They do a kit for this.
(50) Ancillary Belt Roller Kit (includes 5, 6, 7 & 10)
OEM, part: 1611281280, £185.14
Cheaper Peugeot Kit, part: 1687683080, £160.34
(1) Belt Alone, part: 9676553180, £48.96
(12) Flanged Bolt, part: 5703C0, £1.45
(26) Protector Screw, part: 1608981380, £4.08
The accessories drive pulley torque:
Pre-tighten to 4,5 daNm
Angular tightening to 120 ± 5°
(50) Ancillary Belt Roller Kit (includes 5, 6, 7 & 10)
OEM, part: 1611281280, £185.14
Cheaper Peugeot Kit, part: 1687683080, £160.34
(1) Belt Alone, part: 9676553180, £48.96
(12) Flanged Bolt, part: 5703C0, £1.45
(26) Protector Screw, part: 1608981380, £4.08
The accessories drive pulley torque:
Pre-tighten to 4,5 daNm
Angular tightening to 120 ± 5°
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 12
- Joined: 10 Apr 2024, 23:35
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
Awesome, thanks Marc!
Would you have the part number for the bolts too please? I need a set of those.. lets just say there were disagreements during their initial extraction
Would you have the part number for the bolts too please? I need a set of those.. lets just say there were disagreements during their initial extraction
-
- Forum Admin Team
- Posts: 38111
- Joined: 15 Sep 2015, 19:38
- x 5916
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
I can't see any other than the ones listed at (12) and the screw at (26) - so which other bolts - the alternator (4)?
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 12
- Joined: 10 Apr 2024, 23:35
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
Sorry, dumb moment!
I meant the 3 bolts for the accessory drive pulley
I meant the 3 bolts for the accessory drive pulley
-
- Forum Admin Team
- Posts: 38111
- Joined: 15 Sep 2015, 19:38
- x 5916
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
(4) Alternator Fixing Bolts?, part: 1606365780.
If not then I don't know which other bolts you are referring to apart from the timing belt tensioner. There's nothing else I can see.
If not then I don't know which other bolts you are referring to apart from the timing belt tensioner. There's nothing else I can see.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 16
- Joined: 26 Apr 2024, 09:39
- x 2
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
I’ll need to source the following for VF7**************[VIN obfuscated, can be read by forum staff] :
Cabin filter
Air filter
Fuel filter
Oil filter
Sump gasket (going to check and clean the oil pickup if necessary)
Sump plug washer
Thanks & regards,
Pete
Cabin filter
Air filter
Fuel filter
Oil filter
Sump gasket (going to check and clean the oil pickup if necessary)
Sump plug washer
Thanks & regards,
Pete
Occasionally, I actually understand what I’m doing, however, now is not one of those times!
-
- Forum Admin Team
- Posts: 38111
- Joined: 15 Sep 2015, 19:38
- x 5916
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
OEM: Part: 647975, £50.96
Citroen Cheaper option, part: E146177, £19.31
Anti Allergenic Filter, part: 647941, £63.65
(6) Fuel Filter
OEM, part: 9809721080, £60.97
Citroen Cheaper Option, part: 1611659480, £36.05
(08) Oil Filter
OEM, part: 1109AY, £18.54
Citroen Cheaper Option, part: 1687120580, £9.40
(2) Engine Oil Drain Plug, part: 031129, £1.76
(3) Draining Plug Gasket, part: 1682801680, £1.48
The sump gasket is not showing available separately.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Forum Treasurer
- Posts: 11005
- Joined: 07 Aug 2002, 17:12
- x 1036
Re: Citroen, DS Automobiles and Peugeot Official Part Number Requests
No sump gasket, it's sealed with RTV silicone.
Richard W
