Does anyone know which pin/plug on the BSI is meant for powering the rear camera?
Could use a piggyback solution on F24 but would prefere the right socket connection.
C3A 1.6HDI 2018
BSI pinout +12V rear camera
Moderator: RichardW
-
- Donor 2024
- Posts: 5
- Joined: 26 Apr 2024, 06:35
BSI pinout +12V rear camera
Last edited by Chrgdk on 26 Apr 2024, 21:44, edited 1 time in total.
-
- Forum Admin Team
- Posts: 38804
- Joined: 15 Sep 2015, 19:38
- x 6065
Re: BSI pintout +12V rear camera
Fuse F24, 5 Amp (lower fusebox) which is for parking sensors, rear camera and telematic screen.
Please Don't PM Me For Technical Help
Marc
Marc
-
- Donor 2024
- Posts: 5
- Joined: 26 Apr 2024, 06:35
Re: BSI pinout +12V rear camera
Yes
But is there a socket and pin number for the camera.

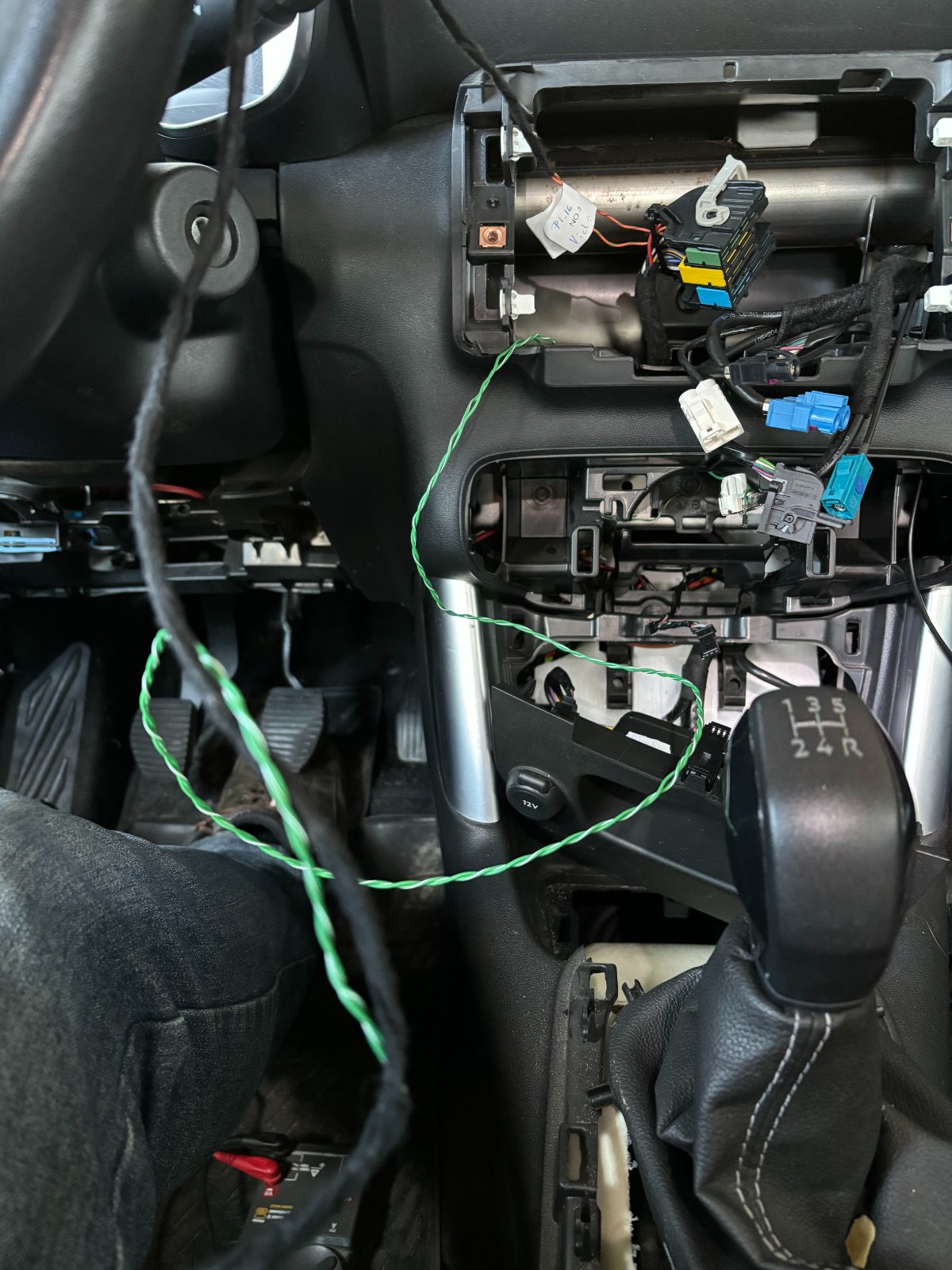

My harness is already prepared with crimp terminal.
But no info on the socket/pin number.
Vid+&Vid- are connected directly to the Bosch rcc.
But is there a socket and pin number for the camera.
My harness is already prepared with crimp terminal.
But no info on the socket/pin number.
Vid+&Vid- are connected directly to the Bosch rcc.
Last edited by Chrgdk on 26 Apr 2024, 21:44, edited 3 times in total.
-
- Donor 2023
- Posts: 7105
- Joined: 07 May 2009, 16:24
- x 1406
Re: BSI pintout +12V rear camera
Photo is just a black rectangle for me!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
Inside every old person is a young person wondering what the hell happened.
"Trying is the first step towards failure" ~ Homer J Simpson
-
- Donor 2024
- Posts: 5
- Joined: 26 Apr 2024, 06:35
