Help removing air box in C4 Picasso 2017

[danlat1415]

I'm trying to remove my air box in my C4 Picasso 2017 Flair.

The rubber grommets have become worn and the air box vibrates when at low revs.
I've easily changed the 2 front rubber grommets as they're right at the front (the 2 ball points that the engine cover clips on to).

I need to remove the air box completely to access the two rubber grommets at the back/underneath.

I had to do this on my previous 2013 C4 Picasso, but the air box is different on this newer model, so I'm not sure how I can get it out safely.

Anyone done this before, or able to show me a technical diagram?

My VIN is;
VF7**************[VIN obfuscated, can be read by forum staff]


I've attached a picture of the rubber grommets/bushes that I'm trying to replace and get access to.

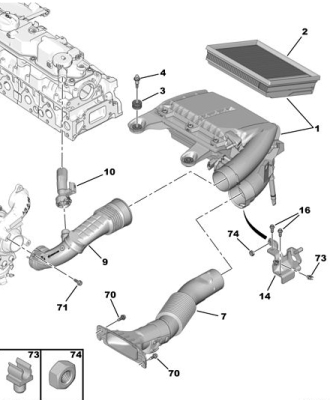

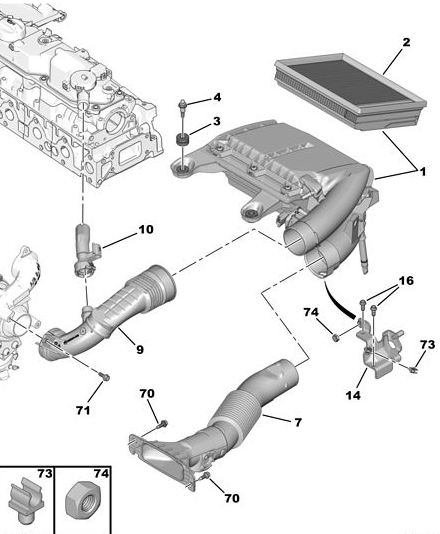

Ignore the parts diagram of the air box in that picture though, it's a different airbox than my current one (it's the airbox from the 2013-2015 model). But the rubber bush part is the same.

[GiveMeABreak]

This is your Air Filter Resonator, but I don't have anything for the removal, but shouldn't be too difficult, you'll just have to remove the necessary hoses first I suspect.

[danlat1415]

Thanks, I'll try and figure it out when I've more spare time allowed then
