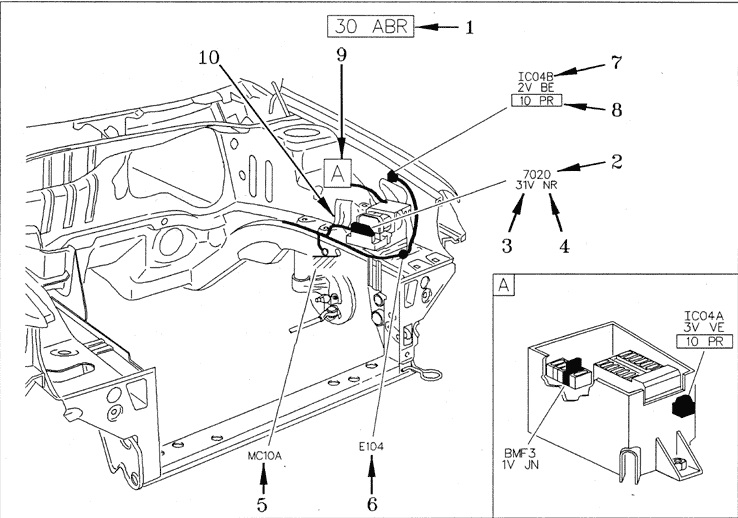

PSA Electrical Diagrams - Reading The Installation Diagrams

1: Identifying the Harness Shown.
2: Identifying the Equipment.
3: Number of Connector Ways.
4: Connector Colour.
5: Representation of an Earth Point.
6: Representation of a Splice.
7: Identifying an Interconnection.
8: Identifying the Harness Connected.
9: For Details See the Box Indicated.
10: Location of the Harness Label.
