MAP Sensor Xantia 2.0 HDi

[Edhertz]

Can someone tell me where I can find the MAP sensor?
Thanks in advance.

[GiveMeABreak]

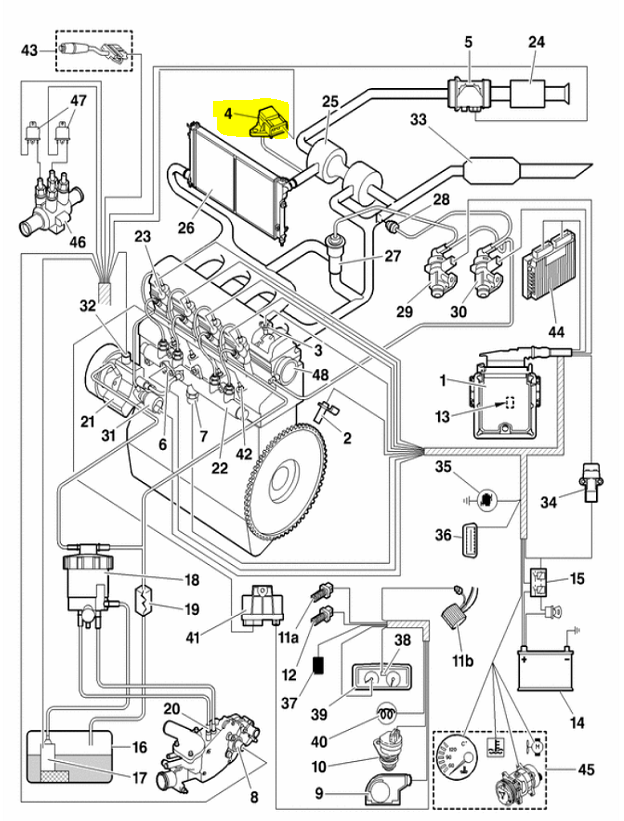

Here you go, item (4) where I've highlighted:

Click Image to Zoom

Air Circuit Component	Reference
Air Cleaner	24
Air Flow Meter	5
Turbocharger	25
Inlet Manifold Pressure Sensor	4
Air/Air Heat Exchanger	26
Exhaust Gas Recycling Valve (EGR)	27
Turbo Waste Gate Control Valve	28
Recycling Regulation Electrovalve (EGR)	29
Turbocharging Pressure Regulation Solenoid Valve	30
Exhaust System	33
Vacuum Pump	48

[Edhertz]

Thanks, Alan

[Rhothgar]

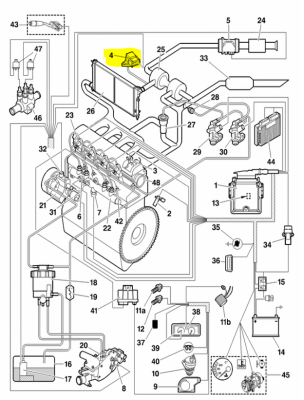

Here you go, item (4) where I've highlighted:

Click Image to Zoom

Air Circuit Component	Reference
Air Cleaner	24
Air Flow Meter	5
Turbocharger	25
Inlet Manifold Pressure Sensor	4
Air/Air Heat Exchanger	26
Exhaust Gas Recycling Valve (EGR)	27
Turbo Waste Gate Control Valve	28
Recycling Regulation Electrovalve (EGR)	29
Turbocharging Pressure Regulation Solenoid Valve	30
Exhaust System	33
Vacuum Pump	48

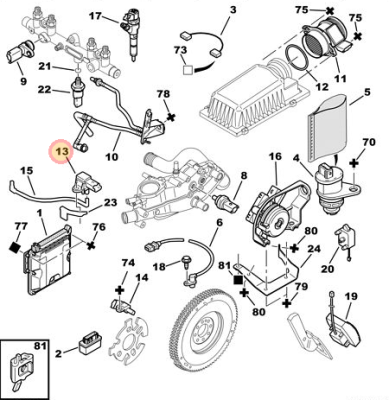

This diagram makes no sense to me. Is it the NipponDenso sensor in the intercooler. The diagram looks back to front.

[GiveMeABreak]

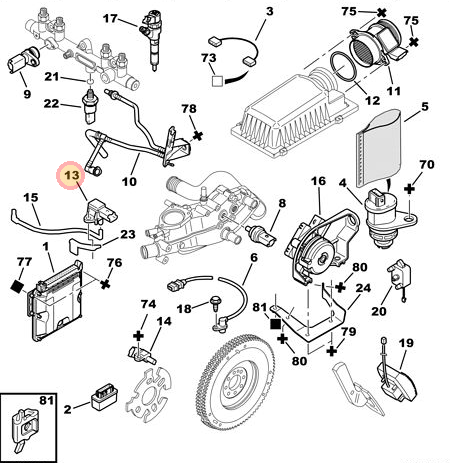

If this is for your own 2.0 HDi, then it's probably because the parts diagram provides less detail (13), so that's why I put up the system diagram that shows its location as a sequence

[Edhertz]

Thanks , Alan
