Auto gearbox fault 2015 208

[JOE+TECH]

Hi new to the forum, I hope someone can help with the problem I have got with 2015 peugeot 208.
The car developed fault in auto gearbox not changing gear When stopped it would not start again. Had it recovered and now trying to check it out
My problem is on checking with diag tool I can get communication with engine no faults,air bag etc no faults , but no comms with Auto box
The starter will not crank, some times when switched on you hear it moving gears itself
CAN SOME ONE HELP WITH WIRING DIAGRAM INFO so I can check out can system ,powers etc for for communication to try and get fault codes from
gearbox .Also is the gearbox control unit the one fitted on top of the battery If someone could give some help on the problem
Thanks joe

[GiveMeABreak]

No, the gearbox ECU is fitted to the actual gearbox on a proper automatic.

You need to check the dashboard for warning symbols and what is being shown on the gearbox selector display as these are a clue as to what is wrong. Also, are we talking about a proper Automatic or a piloted manual gearbox?

[wheeler]

Need a VIN for the wiring diagram.

[JOE+TECH]

Hi thanks for quick reply I think you are correct the gearbox is a manual with electronic control The model No is BVA-AM6-AT6-UDS I think? in diag
I have worked on Vauxhall corsa with similar gearbox am I correct
If so can you help with info as how peugeot gearbox works. I think engine will not start as engine can not see gearbox in neutral
The VIN No is VF3**************[VIN obfuscated, can be read by forum staff] A wiring diagram for the correct gearbox would be a great help
I will check if gear position is showing in dash and let you know I think with a bit of help from you we can check out the fault
Thanks joe

[wheeler]

Yes its a piloted manual, not a proper auto.

[JOE+TECH]

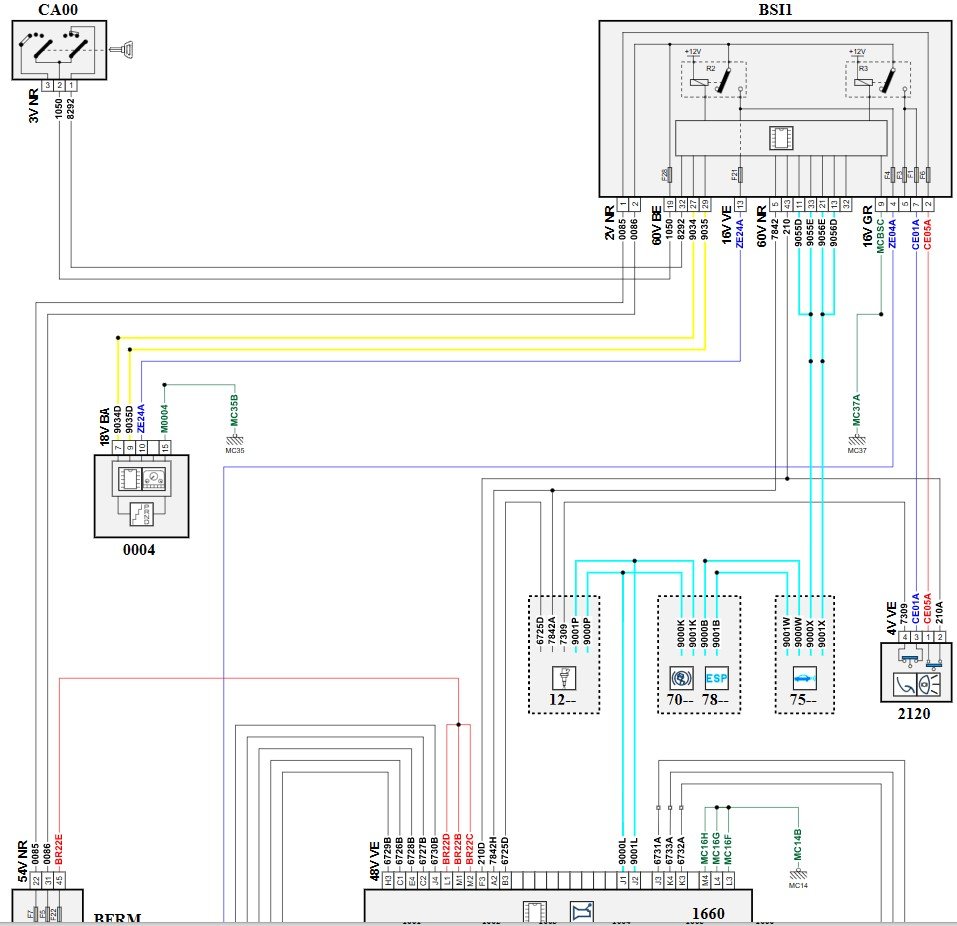

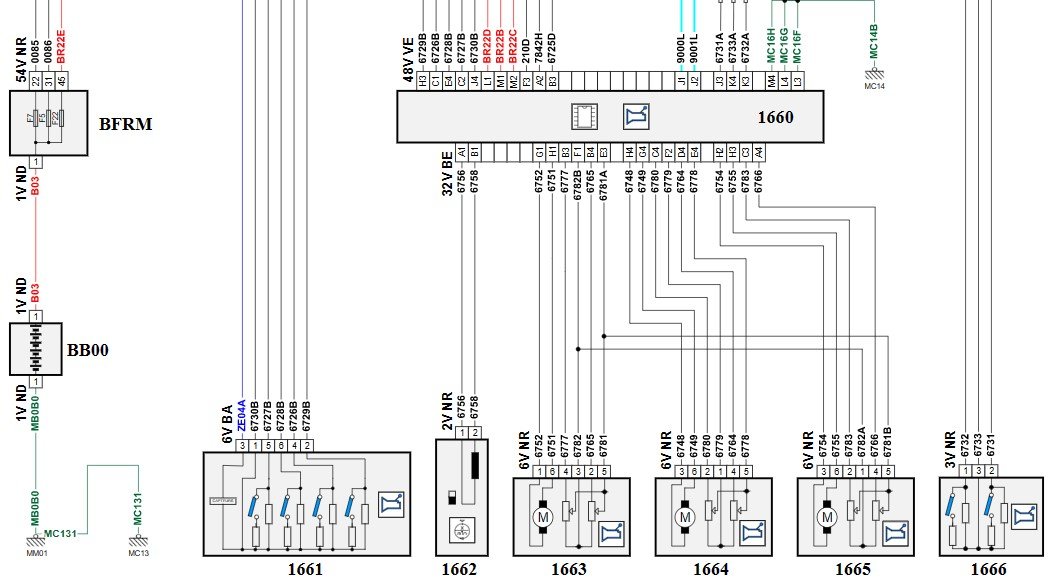

Thanks Wheeler the wiring diagram is just what I need
I recognise the engine ecu,abs,bsi but if you could give me the number chart for the rest of the modules
I would need to recognise selector actuator,clutch actuator etc It would be great help to speed up checks
I can now mean time check power supply ,earths, can lines for communication fault with diag ( to morrow)
Thanks joe

[wheeler]

See here for component codes > https://frenchcarforum.co.uk/wiki/Elect ... ring_Codes

[JOE+TECH]

Thanks again for quick reply I checked the component codes against the wiring diagram and sorry they dont match I think it would need
to be taken of the diagram itself . I am sure you can fix it
I will remove battery etc and and see if I can find gearbox controller to check at the pins
had a look at fuses BFRM I thought would be under bonnet fuse box No 22 40amp all ok
No gear position showing on dash, funny things happen when switched off ign key out it moves the gear selector for no reason still no comms with gearbox
you can here it happening for 1 or 2 minutes
thanks joe

[wheeler]

I suppose the wiki may be getting a bit out of date now with new components, this should help


1600 : Selector lever position switch
1601 : One-touch control lever sensor
1602 : Impulse control sensor
1603 : Automatic gearbox control assembly
1604 : Clutch master cylinder position sensor
1605 : Clutch pedal position sensor
1606 : Parking position buzzer supply relay
1607 : Grille + selection lighting supply relay
1608 : Gearbox neutral sensor
1609 : Dynamic driving function button
1610 : The heat exchanger flow control electrovalve
1611 : Clutch release pedal angle position sensor
1612 : Diagnostic blind spot switch
1613 : Automatic gearbox engine speed sensor
1614 : Engine speed and clutch housing temperature sensor
1615 : Automatic gearbox pressure sensor
1616 : Continuous variation gearbox principal pulley speed sensor
1617 : Continuous variation gearbox secondary pulley speed sensor
1618 : Automatic gearbox park finger
1619 : Turbocharger speed sensor
1620 : Vehicle speed sensor
1621 : Automatic gearbox speed sensor
1622 : Automatic gearbox output speed sensor
1623 : Hydraulic slave cylinder sensor
1624 : Gear engagement sensor
1625 : Vehicle speed interface module
1626 : Gear control lever
1627 : Clutch power module
1628 : Gear engagement power module
1629 : Gear selection power module
1630 : Automatic gearbox ECU
1631 : Torque reduction electrovalve
1632 : Pedal position switch
1633 : Gear selection sensor
1634 : Clutch sensor
1635 : Automatic gearbox electrohydraulic block
1636 : Automatic gearbox position sensor
1637 : Automatic gearbox kickdown switch
1638 : Gear selector locking actuator
1639 : Accelerator pedal switch, not depressed
1640 : Automatic transmission programme selector
1641 : Piloted manual gearbox programme selector
1642 : Gear lever locking actuator control relay
1643 : Key locking actuator control relay
1644 : Key locking actuator
1645 : Automatic gearbox electronic piloting
1646 : Automatic gearbox hydraulic block/piloted manual gearbox hydraulic block
1647 : Clutch actuator control solenoid valve
1648 : Back-lit gear lever knob
1649 : Selector lever position sensor
1650 : Piloted manual gearbox ECU
1651 : Automatic gearbox electric control ECU
1652 : Selector of the driving mode and/or of the multi-sensory mode
1655 : Controlled electronic gearbox power relay
1660 : Piloted manual gearbox ECU
1661 : Gear selector
1662 : Piloted manual gearbox input speed sensor
1663 : Gear engagement actuator
1664 : Gear selection actuator
1665 : Clutch actuator
1666 : Gear controls at the steering wheel
1667 : Gear selector lamp
1668 : Hydraulic clutch thrust bearing sensor
1669 : Piloted gearbox electropump assembly
1670 : Piloted manual gearbox automatic mode switch
1671 : Controlled manual gearbox engagement position sensor
1672 : Piloted manual gearbox gear selection position sensor
1673 : Automatic gearbox oil pump
1674 : Gear lever position main sensor
1675 : Gear lever secondary position sensor
1676 : Gear up selection electrovalve
1677 : Gear down selection electrovalve
1678 : Odd gears engagement solenoid valve
1679 : Even gears engagement solenoid valve
1680 : 1 pressure sensor
1681 : Regulated oil pump supply
1682 : Regulated oil pump supply relay
1683 : Sequential gear lever e-Toggle
1687 : Clutch oil pressure sensor 1
1688 : Clutch oil pressure sensor 2
1689 : Gearbox input speed sensor 1
1690 : Gearbox input speed sensor 2
1700 : Electric management control unit
