Citroen, DS Automobiles and Peugeot Official Part Number Requests

[moizeau]

Thanks very much Marc

[kingjafad]

Hi,
Can i double check a part number please for C4 Picasso B78 2013 Vin VF7**************[VIN obfuscated, can be read by forum staff]
I am after the ABS module - my current one is showing as 9806742980 but i wanted to check if there is an updated part number for it please.
Many thanks,
Phil

[GiveMeABreak]

Hi Phil

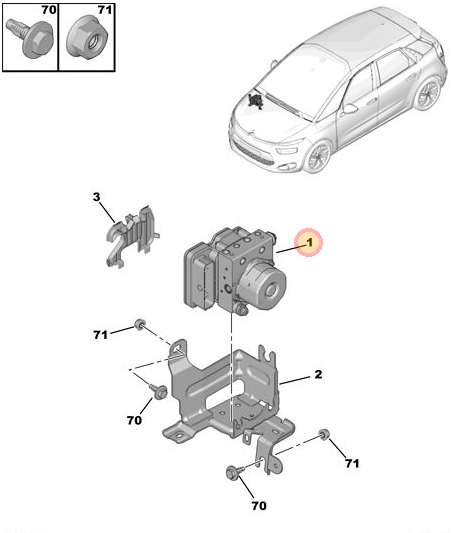

The official part number for the ESP / ABS Module is:

(1) Hydraulic Block, part: 1613128080, £1,165.18

The original part was 1610841480, but this has been replaced with the later part above.

[Narl]

Looking official part number for D/SF window motor:

Vin: VF3**************[VIN obfuscated, can be read by forum staff]

Thanks.

[GiveMeABreak]

@Narl: please check your Private Messages.

[Narl]

@Narl: please check your Private Messages.

All sorted

[GiveMeABreak]

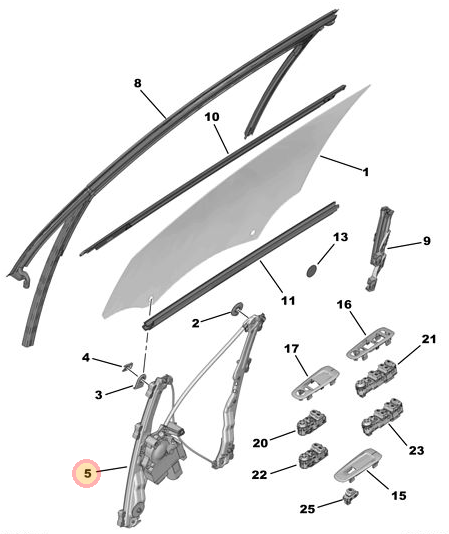

(5) Right Side Electric Window Lift Control, part: 9826079480, £348.52
Left Side Electric Window Lift Control, part: 9826079580, £410.34

All from Peugeot Direct and inc. UK VAT.

[Tim1968]

Hi Marc,
I have issues with my wipers not working and the mechanic I use has told me the motors need changing, he has told me to look around as they are an arm and a leg for new Citroen parts.
I have 2 questions on this 1) what are the part numbers for them 2) are they vehicle specific or generic across the C5 range and years as in I have a 2008 but would say a later model still be using the same motor?

Regards
Tim

[GiveMeABreak]

Hi Tim

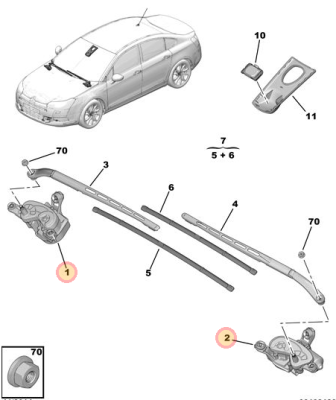

Here you go. The right and left side motors are different. The wiper motors are the same for ALL Right Hand Drive Models, but Left Hand Drive Models are different. So make sure it is a RHD vehicle and make sure you get the left or right side as needed.

(1) Wiper Motor Right, part: 6405LA, £417.17
(2) Wiper Motor Left, part: 6405LE, £417.17

[Tim1968]

Cheers Marc

[407]

Marc

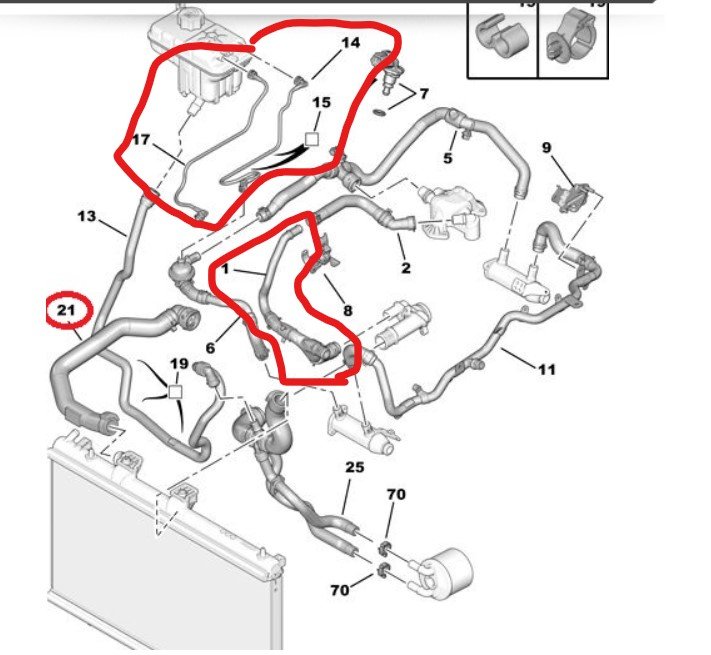

after part numbers for item #1, 14 and 17 in the attached pic (said to be a 407 2.7 hdi)

Mine is the 2006 VIN VF3**************[VIN obfuscated, can be read by forum staff]

regards

[gundlinger]

Afternoon,

Issues with climate control fan in a 2010 Dispatch Petrol engine van. Van used everyday for work so, after quick look, changed out fan motor and resistor bank with used parts to keep costs down. Now I have had more time to look at it, I am getting too high a Voltage drop from the fuse unit in the engine. Adding a temporary bypass feed to diagnose, all wiring checks out fine, and there are no earth faults. Think some relays in main fuse box have failed.

Part number is: 9666700280. However I guess it has been superseded. Could I get part numbers for main fuse box please. If it has been superseded several times, may I request all the numbers so I have decent chance of picking a used one from breakers yard or eBay. There are some forums saying this has to be coded to vehicle, I am not too convinced about this.

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

Thanks

Andy

[RichardW]

Marc

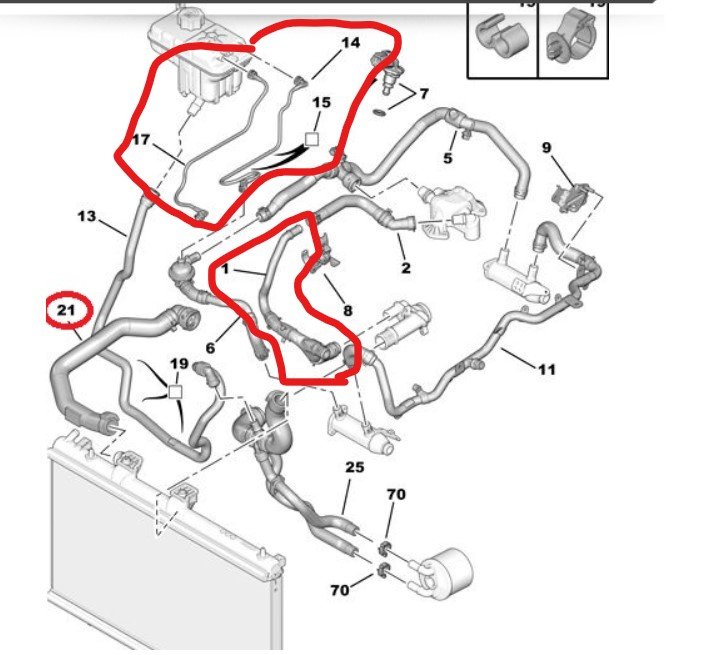

after part numbers for item #1, 14 and 17 in the attached pic (said to be a 407 2.7 hdi)

Mine is the 2006 VIN VF3**************[VIN obfuscated, can be read by forum staff]

regards

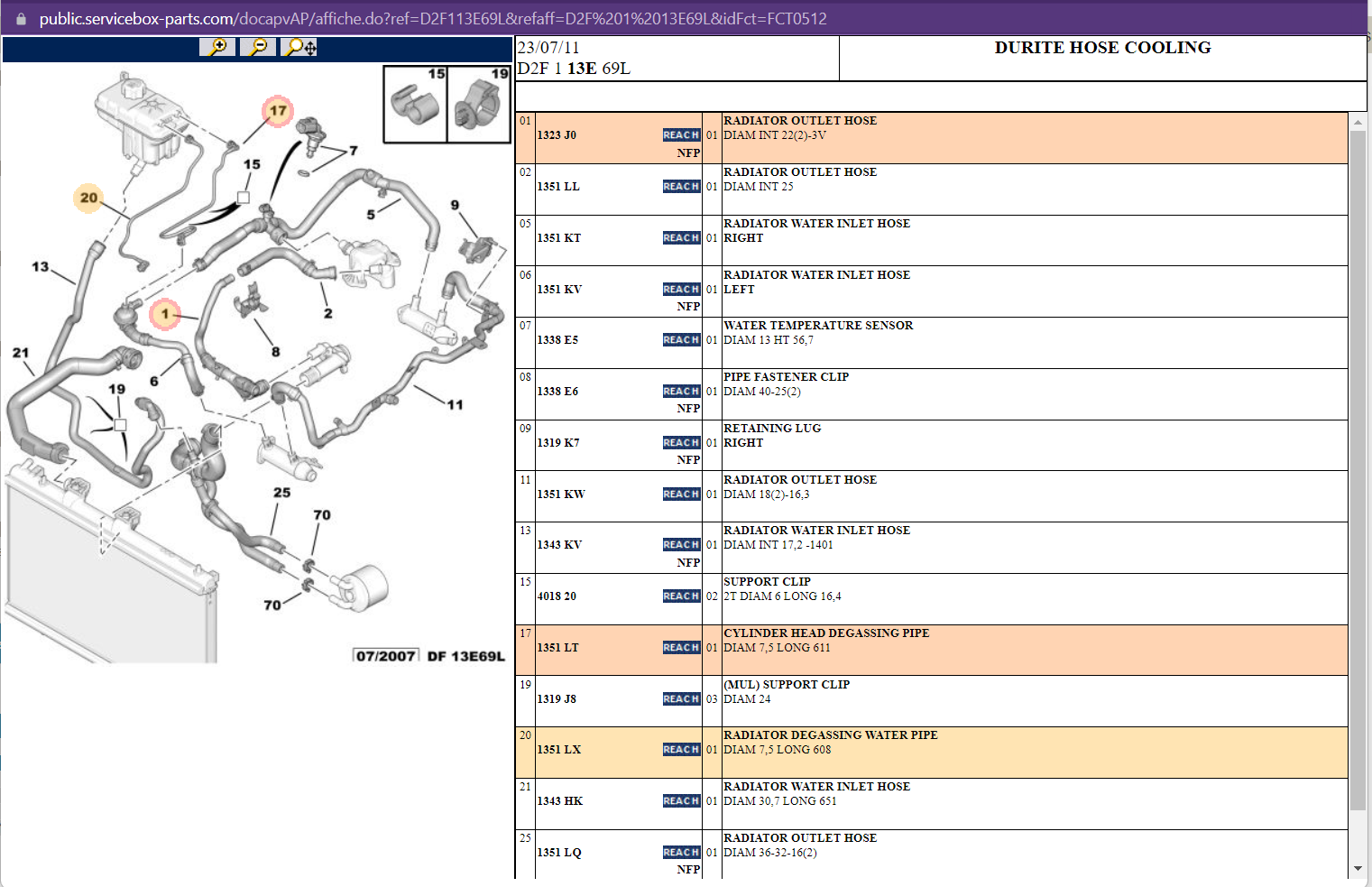

Your VIN shows something slightly different:

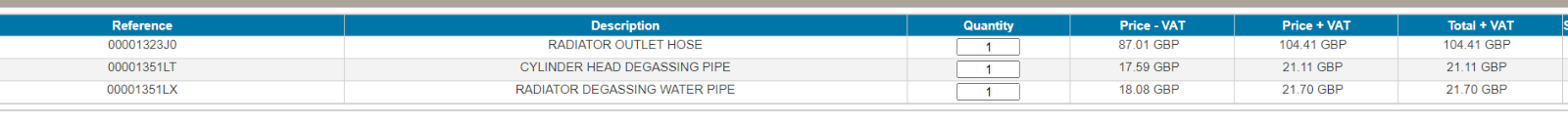

Prices

[RichardW]

Afternoon,

Issues with climate control fan in a 2010 Dispatch Petrol engine van. Van used everyday for work so, after quick look, changed out fan motor and resistor bank with used parts to keep costs down. Now I have had more time to look at it, I am getting too high a Voltage drop from the fuse unit in the engine. Adding a temporary bypass feed to diagnose, all wiring checks out fine, and there are no earth faults. Think some relays in main fuse box have failed.

Part number is: 9666700280. However I guess it has been superseded. Could I get part numbers for main fuse box please. If it has been superseded several times, may I request all the numbers so I have decent chance of picking a used one from breakers yard or eBay. There are some forums saying this has to be coded to vehicle, I am not too convinced about this.

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

Thanks

Andy

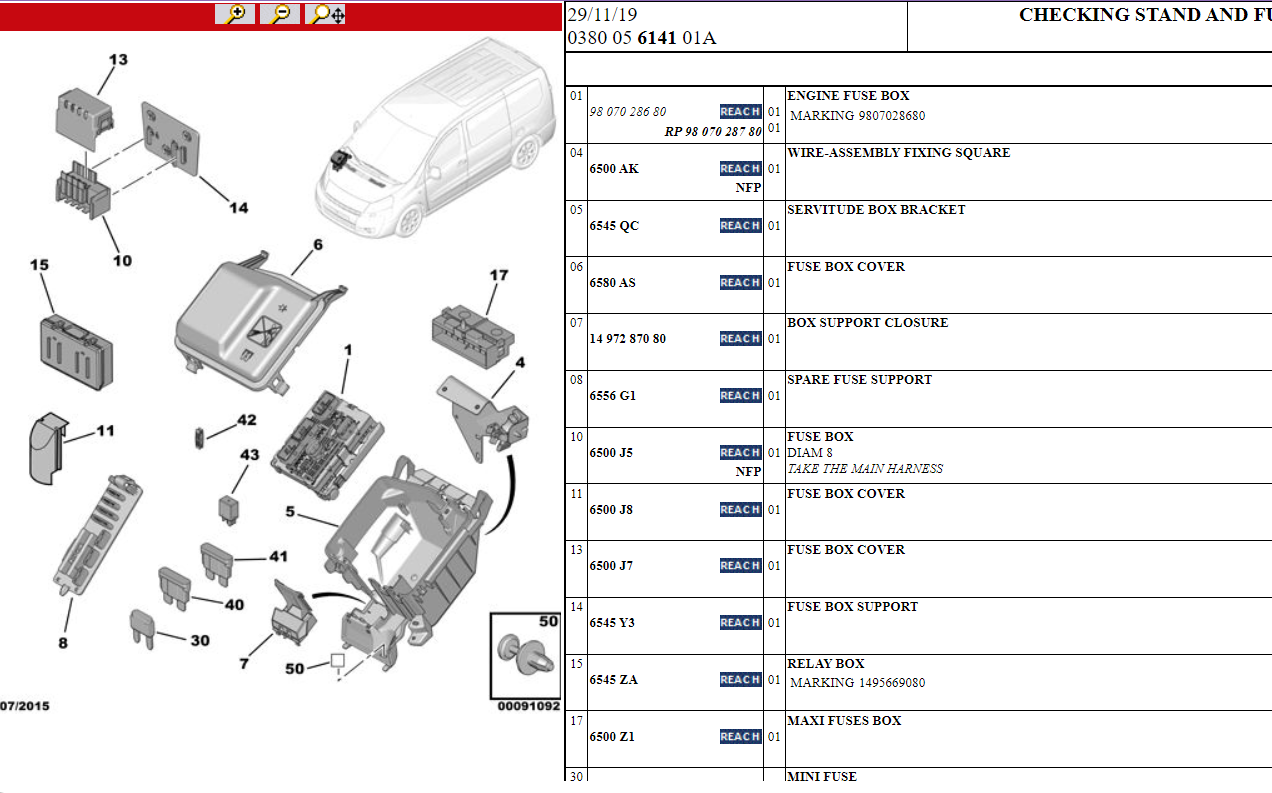

Assume you mean the underbonnet fuse box?

There's only 1 superseeded part listed:

Current price is £278.56

For reasons best known to themselves, the number stencilled on the box is not the PSA part number. If you are looking at used, then just go off the stencilled number. No need to code this part.

[gundlinger]

Thanks Richard,

I did mean the underbonnet fuse box. I have not been able to source a part with stencilled number, so I have ordered one using the number on the diagram you kindly posted. Hopefully it will address my issue. Great forum by the way.

Regards
Andy
