C4 2013 THP 1.6 Lounge Instrument Cluster Diagram

[douglasbaroni]

Hello everybody!!

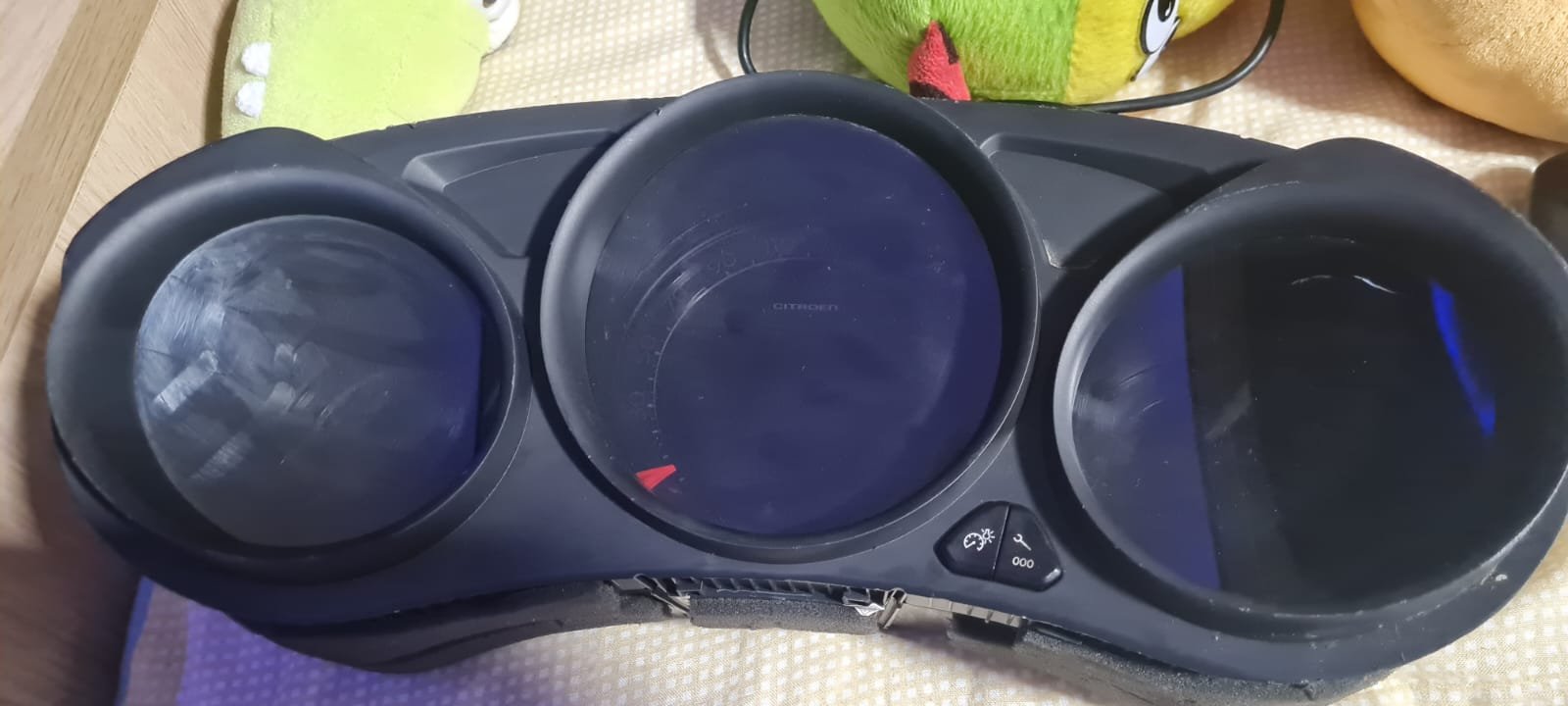

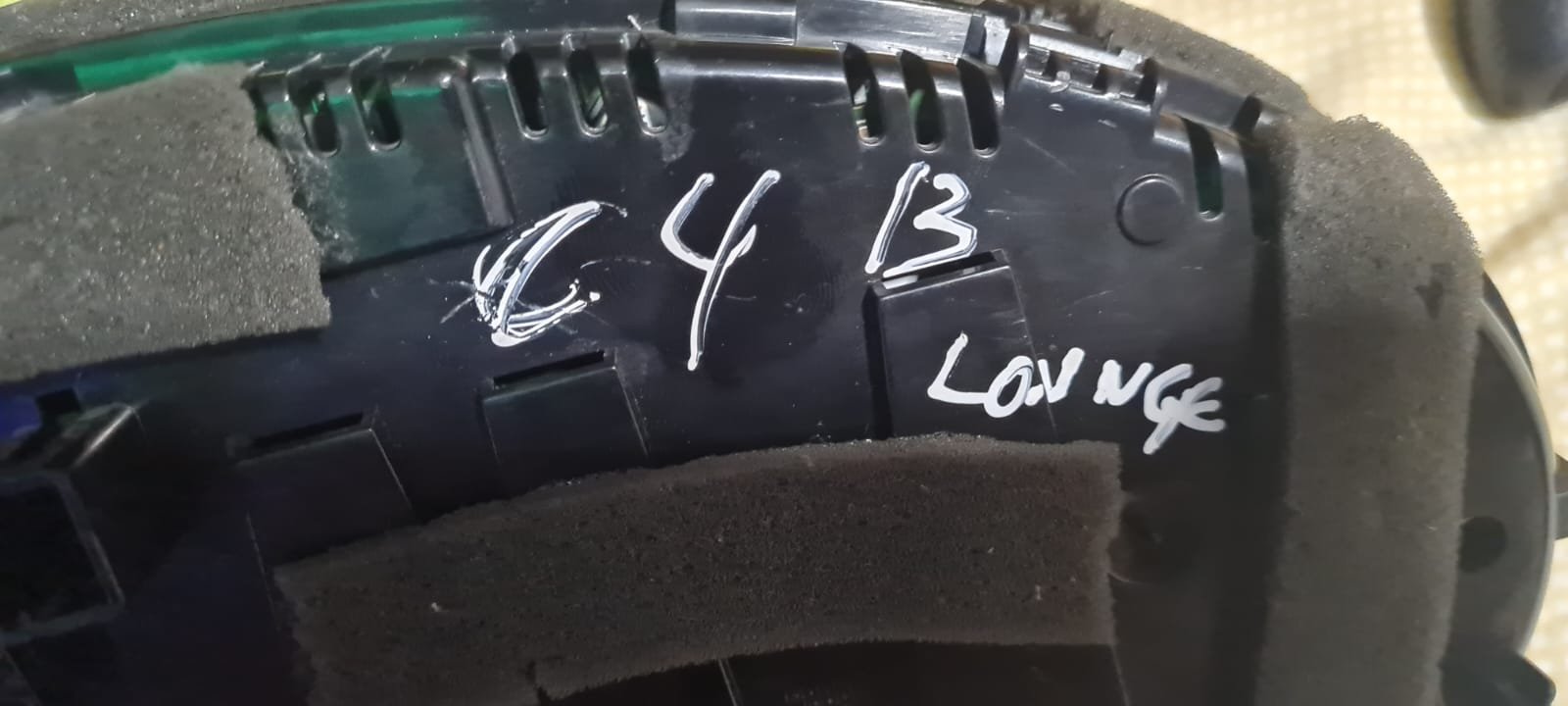

I'm Brazilian and I'm working on building a real racing simulator for myself, and for that I invested in buying a dashboard from a C4 2013 THP Lounge, which was one of the real cars I've ever owned and I loved the car.

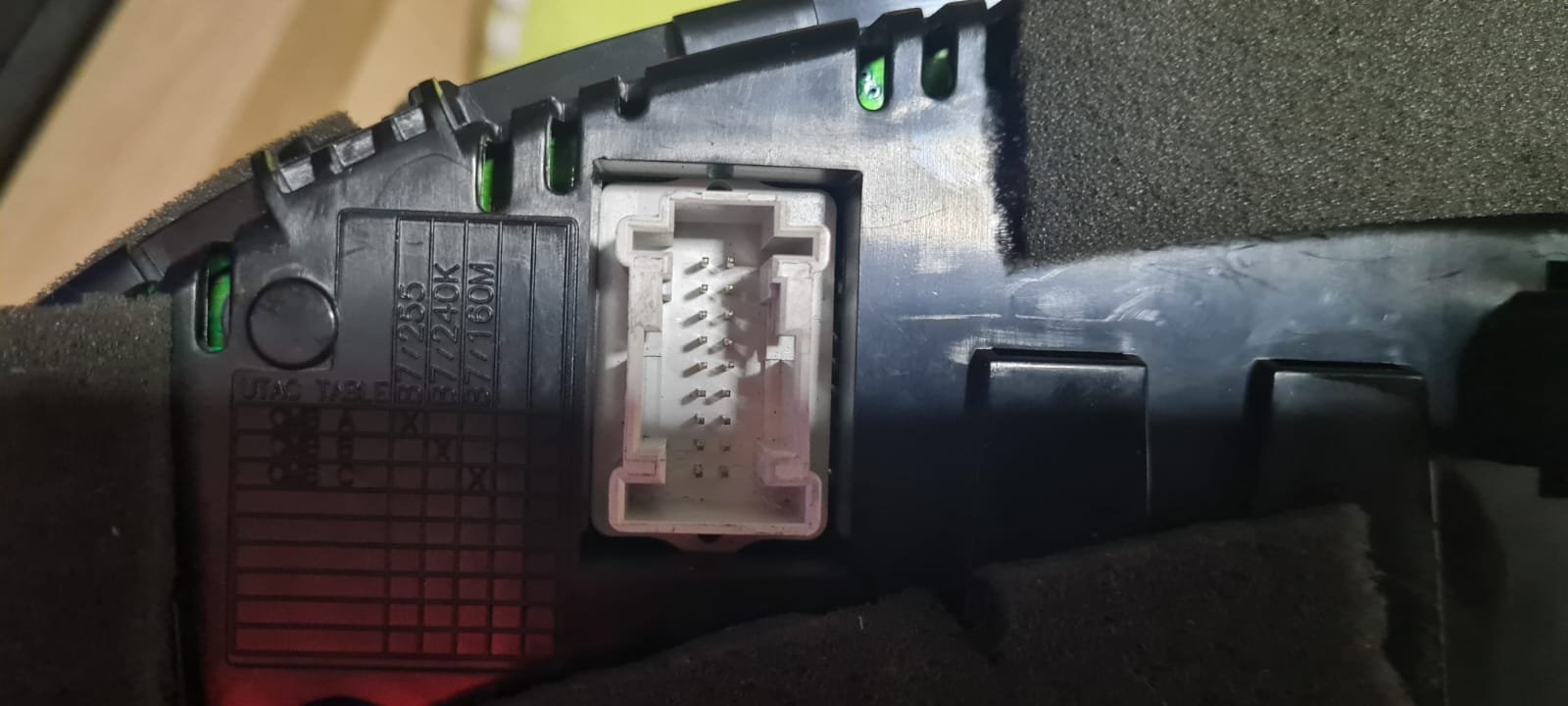

I'm having great difficulty in mapping the instrument panel pins to be able to know which pin is 12v, which pin is GND, which pin is CAN H and CAN L.
Could someone help me by posting the wiring diagram of this panel?
it may be that there is more than 1 pin to connect to 12v, so it would be very good to have the complete diagram with pins 1 to 18.

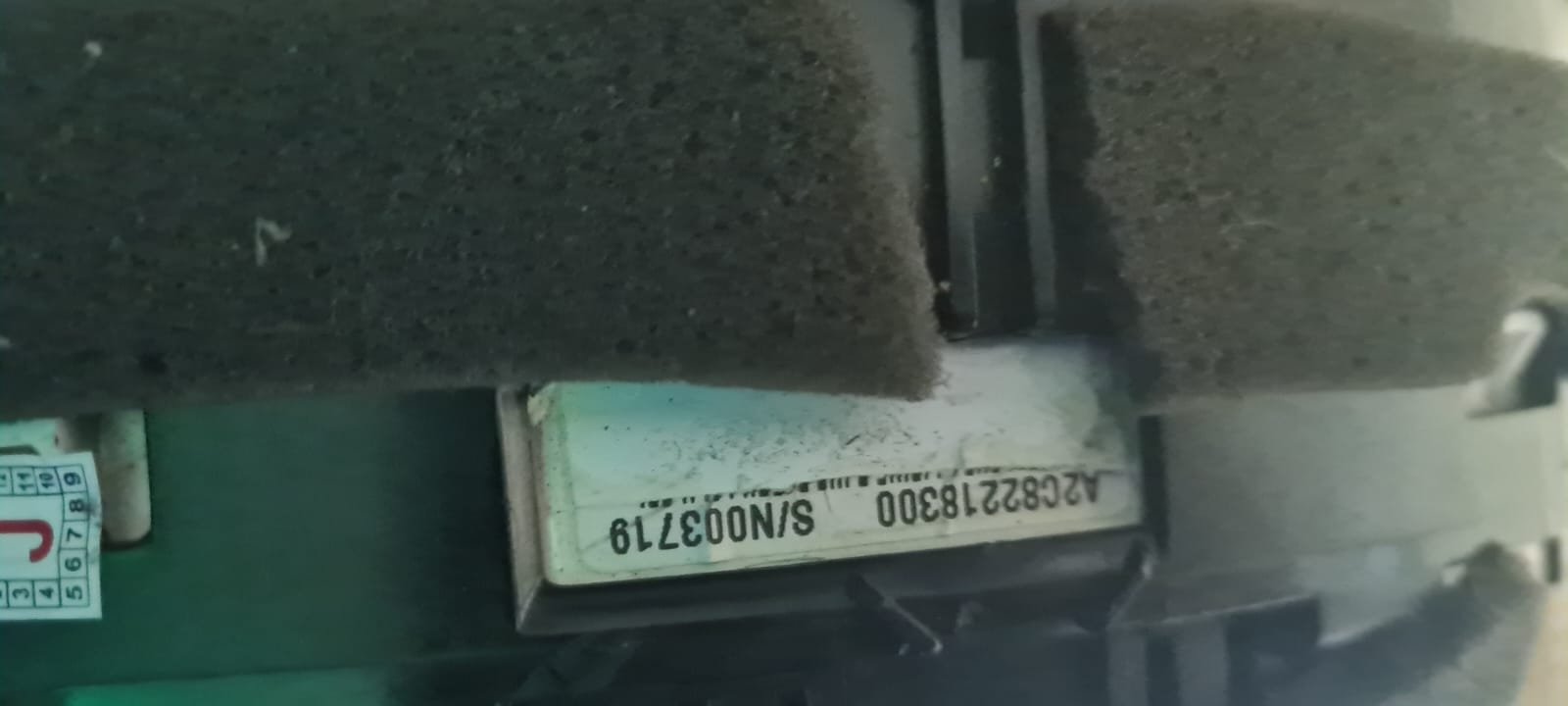

From what I've been finding is hardware 0004 if I'm not mistaken.

Any help will be very welcome.

Thank you!

[GiveMeABreak]

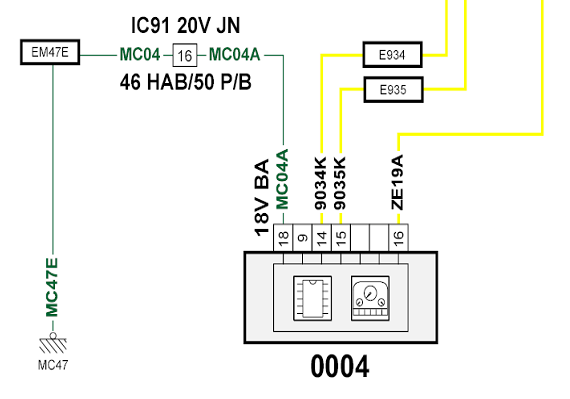

As I explained, the wiring depends on the type of equipment fitted and also the telematics or radio equipment fitted (Head Unit). So as you can't provide the VIN for the donor car I don't know which system it had and therefore will be guessing at the correct diagram. This is just for the basic radio and is all that is showing:

18 is earth
14: Entertainment information high low speed _can bus
15: Entertainment information low low speed_can bus
16: Live Control wire to BSI

[douglasbaroni]

that's what I needed, thank you very much, tonight when I'm at home I'll run tests on my bench and I'll share the results with you.

As for the VIN number, I will get it and post it here, the donor car is accessible, as soon as I get it posted here.

If there are other drawings containing the other pins on the panel, if you are able to post them here I would be grateful too, it may be that there is some more 12v power supply or even some other return pin for fuel gauge or brake lights etc...

But it has helped me a lot so far!!

Until later.

[douglasbaroni]

Here is the VIN Code of the instrument panel donor car I am using.

If you have a drawing containing the other pins on the panel I would appreciate it.

[GiveMeABreak]

Ok so you have a C4 Lounge and this is for Mercosur countries, so not over here.

Anyway I have looked at all the systems and there are no other pin connections. That's the job of the CAN wiring to carry data from the other systems to the display including braking, fuel info etc.

[douglasbaroni]

Thank you so much.

Yes, it's the C4 Lounge, which for you I believe is called C4 II.

Tonight I post the details of my work, I will hack the CANBUSS network IDs to be able to use the panel in conjunction with simulation games.

Thank you very much.

[GiveMeABreak]

Enjoy! and if you get stuck, you can always ask R2D2 as I see he's part of the gang

[douglasbaroni]

Friends,

here's a video of the first tests I did with my panel, thanks to everyone so far.

[douglasbaroni]

Enjoy! and if you get stuck, you can always ask R2D2 as I see he's part of the gang

Yes!
This is my R2D2, I built it in 2013..
In the photo I'm handsome dressed in a bee shirt... kkkkkk
