Retrofit electric tailgate

Post by ezejp »

Hi, I am doing research to retrofit the electric tailgate in my C5AC, I got some of the parts, and in the meanwhile before buying the tailgate struts that are the most expensive, wanted to know if someone has done something similar here? I see that parts are similar as in C4 Picasso b78, 3008 and sure some more.
I am missing the wiring diagram, so working on get that too. As I think it can be a good start, to see if I can connect the electric module to bsi, and check if functions respond (with a voltmeter)

Thanks for your time and reading!
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Retrofit electric tailgate

Post by GiveMeABreak »

I really wouldn't bother to be honest - these are factory fitted options only, so have a completely different tailgate wiring harness and are completely different to the C4 Picasso B78. Some trim elements are different too. Further, there are other issues to consider like the hands free access / starting as the fobs are also different according to options.
Please Don't PM Me For Technical Help

Marc
User avatar
ezejp
Posts: 11
Joined: 03 Jun 2022, 02:27
Location: Latin America
My Cars: C5AC Feel Pack

Re: Retrofit electric tailgate

Post by ezejp »

Thanks, it's already started, since I know there will be some incompatibilities, I know that it may not fully work. I mean, if for example hands free doesn't work it won't be a problem. I am doing this to learn on different bsi configurations, and hoping to solve issues I may found.
If after several tries, nothing work, well i will be at the same starting point, without electric tailgate.

English is not my native language(in case something is not well written)
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Retrofit electric tailgate

Post by GiveMeABreak »

No problem, I understand your English perfectly. Best of luck with your project. :)
Please Don't PM Me For Technical Help

Marc
User avatar
ezejp
Posts: 11
Joined: 03 Jun 2022, 02:27
Location: Latin America
My Cars: C5AC Feel Pack

Re: Retrofit electric tailgate

Post by ezejp »

One question that may be someone can answer, is there any suscription in service.citroen web page to access wiring diagrams? or the suscriptions are only to see parts?

thanks
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Retrofit electric tailgate

Post by GiveMeABreak »

Wiring diagrams are chargeable and separate to parts.
Please Don't PM Me For Technical Help

Marc
User avatar
ezejp
Posts: 11
Joined: 03 Jun 2022, 02:27
Location: Latin America
My Cars: C5AC Feel Pack

Re: Retrofit electric tailgate

Post by ezejp »

GiveMeABreak wrote: 15 Jun 2022, 07:57 Wiring diagrams are chargeable and separate to parts.
Thanks, and the URL to access to wiring is the same as parts? do you know if a VIN is needed or it can show wiring depending the car/model selected?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Retrofit electric tailgate

Post by GiveMeABreak »

You'll have to find that out for yourself I'm afraid. I know diagnostic procedures requires purchase of tokens and that is 1 token for one vehicle for 1 week or 2 tokens for 1 vehicle for 2 weeks or 2 vehicles for one week and yes VIN is required.

I can't advise about the electrical diagrams - but I know that many have paid for access, but have not been able to get access and support has not responded.... so you take a chance here.
Please Don't PM Me For Technical Help

Marc
User avatar
ezejp
Posts: 11
Joined: 03 Jun 2022, 02:27
Location: Latin America
My Cars: C5AC Feel Pack

Re: Retrofit electric tailgate

Post by ezejp »

ok, but i am a little confused if suscription for wiring should be by URL or by Diagbox, do you know that?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Retrofit electric tailgate

Post by GiveMeABreak »

It is my understanding that the diagrams should be accessed by URL.
Please Don't PM Me For Technical Help

Marc
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Retrofit electric tailgate

Post by wheeler »

You dont need a VIN to look up wiring diagrams on servicebox. You can manually select them with just vehicle details.
User avatar
GiveMeABreak
Forum Admin Team
Posts: 37005
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5646

Re: Retrofit electric tailgate

Post by GiveMeABreak »

I only mentioned that in relation to diagnostic procedures, for which you do.
Please Don't PM Me For Technical Help

Marc
User avatar
ezejp
Posts: 11
Joined: 03 Jun 2022, 02:27
Location: Latin America
My Cars: C5AC Feel Pack

Re: Retrofit electric tailgate

Post by ezejp »

wheeler wrote: 15 Jun 2022, 15:57 You dont need a VIN to look up wiring diagrams on servicebox. You can manually select them with just vehicle details.
ok, and do you know what is the suscription needed to access to wiring? I am looking the http://service.citroen.com/ but it's a little bit confusing
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Retrofit electric tailgate

Post by wheeler »

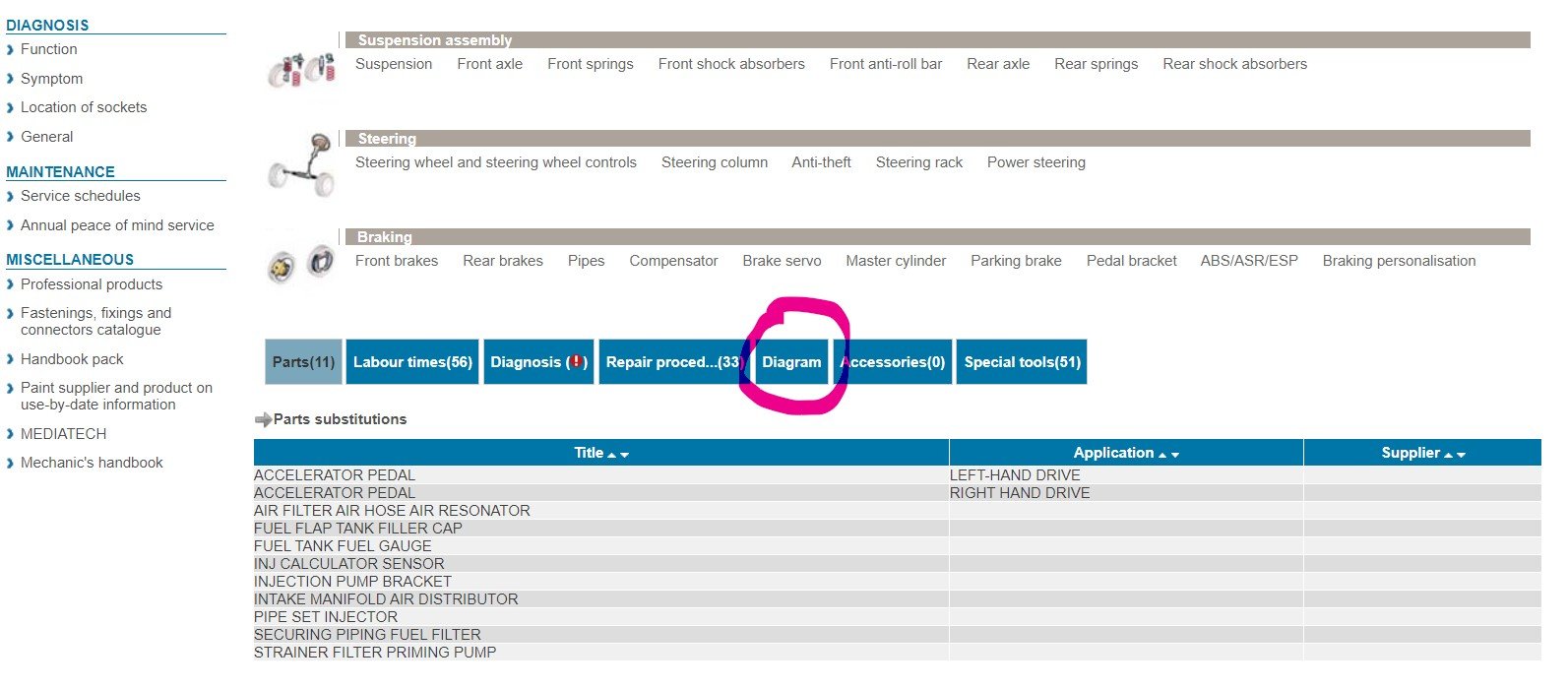

With a live connection you can access the SEDRE wiring diagrams via Diagbox however the normal way would be via servicebox. I would say you just need an hours normal technical subscription which should let you look up tech procedures and wiring diagrams. Once in servicebox you just select this menu & it will take you to SEDRE for wiring diagrams. If you have input the VIN it will pre fill most of the info for you in most cases. If you go in without VIN it will just let you select the vehicle manually.
