Hi all,
Car's been in the garage for what feels like an eternity and I've had a look under the bonnet yesterday and noticed and noticed what I think is a vacuum line from the solenoid is not connected to anything. From memory I think it was capped when I've played about with it before but it's uncapped in the engine bay at the moment.

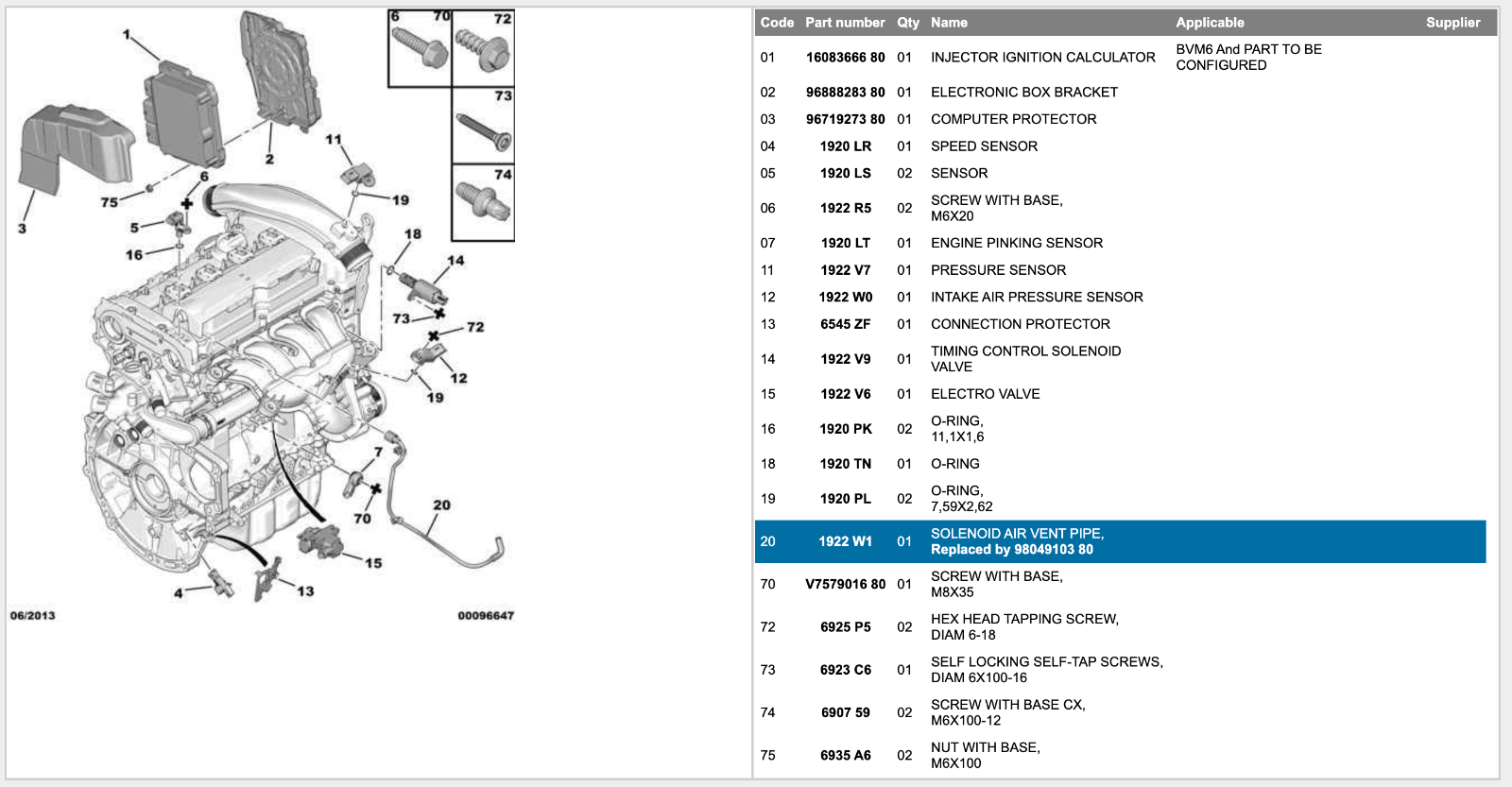

I'm pretty sure it's number 20 in the diagram attached but can't really tell from that if it's capped or if it's meant to connect to somewhere, I think it used to 'hide' in the rocker cover but was capped?
Any body got any idea where it's meant to go or if it is meant to be capped rather than open?
I'll try get a picture of the actual line in the car later but it's currently bucketing it down with rain, so will wait a sec.
Unconnected / capped vacuum line 1.6 THP DS3
Moderator: RichardW
-
- Posts: 34
- Joined: 26 Nov 2020, 22:11
- Location: Bristol
- My Cars: Citroen DS3 2011 1.6 THP 156 DSport
- xantia_v6
- Forum Admin Team
- Posts: 9090
- Joined: 09 Nov 2005, 22:03
- Location: France or NewZealand
- Lexia Available: Yes
- My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ) - x 835
Re: Unconnected / capped vacuum line 1.6 THP DS3
That is the atmospheric port of the boost control valve. The thing on the end is a dust filter with a rubber body, a foam filter and a rubber cap.
There should be gaps between the body and the cap to allow air to enter the filter.
The original design was rubbish and over time the cap would shrink, restricting the air flow. This causes unstable turbo boost and causes engine fault codes on acceleration. I removed the cap on mine, leaving the body and filter.
There should be gaps between the body and the cap to allow air to enter the filter.
The original design was rubbish and over time the cap would shrink, restricting the air flow. This causes unstable turbo boost and causes engine fault codes on acceleration. I removed the cap on mine, leaving the body and filter.
-
- Posts: 34
- Joined: 26 Nov 2020, 22:11
- Location: Bristol
- My Cars: Citroen DS3 2011 1.6 THP 156 DSport
Re: Unconnected / capped vacuum line 1.6 THP DS3
Ah that makes sense then, the cap on mine is uncovered already so I'll try to keep it in a spot with some nice airflow then. Thanks for the help!xantia_v6 wrote: ↑15 May 2022, 20:25 That is the atmospheric port of the boost control valve. The thing on the end is a dust filter with a rubber body, a foam filter and a rubber cap.
There should be gaps between the body and the cap to allow air to enter the filter.
The original design was rubbish and over time the cap would shrink, restricting the air flow. This causes unstable turbo boost and causes engine fault codes on acceleration. I removed the cap on mine, leaving the body and filter.
