Re: Citroen and Peugeot Official Parts Requests

Post by GiveMeABreak »

I have to pop out now, but can you be more specific as the above was from the toe board assembly! There's nothing showing obviously for the doseur. Do you have a picture of location and I'll have a look when I get back.
Please Don't PM Me For Technical Help

Marc
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Citroen and Peugeot Official Parts Requests

Post by wesacosa »

someone from Club-Xm has provided the part number
p/n 6921 17, or 6915 36
For reference They are the m6 cap bolts which hold the bracket which holds the doseur to the bulkhead and contains the mechanism to actuate the doseur from the pedal
wheeler
Posts: 6847
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: Citroen and Peugeot Official Parts Requests

Post by wheeler »

692117 is the old part number, they have now been superseded to the 691536 which are 94p each inc VAT
Attachments
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Citroen and Peugeot Official Parts Requests

Post by Paul-R »

94p each seems a might excessive for what look to be ordinary setscrews.
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 983

Re: Citroen and Peugeot Official Parts Requests

Post by RichardW »

They are M7 though so might be a challenge to get elsewhere!!
Richard W
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Citroen and Peugeot Official Parts Requests

Post by Paul-R »

Hmm, 100mm long seem difficult to find so statement retracted!
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Citroen and Peugeot Official Parts Requests

Post by wesacosa »

thanks, but it looks like Club-XM gave me the wrong part number in that case. The part I am looking for is the M6 cap nut that fixes the brake actuation lever bracket to the bulkhead, unfortunately this is the best picture I can find. The part number for the M7 is the one I circled in red, The bracket (not shown in your diagram) is arrowed in blue. The bolt I am looking for is circled in blue. Does this help identify it ?
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen and Peugeot Official Parts Requests

Post by GiveMeABreak »

Here you go - just let me know which item - I didn't realise what you were after from your original description, but here are the 'footbrake' parts:

If it's item (85) DIAM 6X100-8-13 then it's part: 693633, £1.12 each.
XM Handbrake.JPG
Please Don't PM Me For Technical Help

Marc
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Citroen and Peugeot Official Parts Requests

Post by wesacosa »

Sorry Mark, its still not on there. Its not the footbrake, its the actual brake pedal. The brake pedal has a rod attached with goes through a hole into the scuttle compartment under the bonnet, via a rubber gaiter (the black cone shaped item on my photo with the cross on the top) when you press the brake pedal the rod moves the actuator and presses the button on the doseur valve (the green dome in the middle of my photo) The actuator mechanism is bolted to the doseur valve face with 2x m7 hex head bolts. these are the parts I incorrectly supplied the part number for earlier. the bracket is L shape and bolts to the scuttle panel with 3x m6 cap head Internal hex bolts. these are the parts I am looking for. Let me see if I can take a better photo on my car this morning. thanks for your help with this and sorry I am not explaining it very well
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Citroen and Peugeot Official Parts Requests

Post by wesacosa »

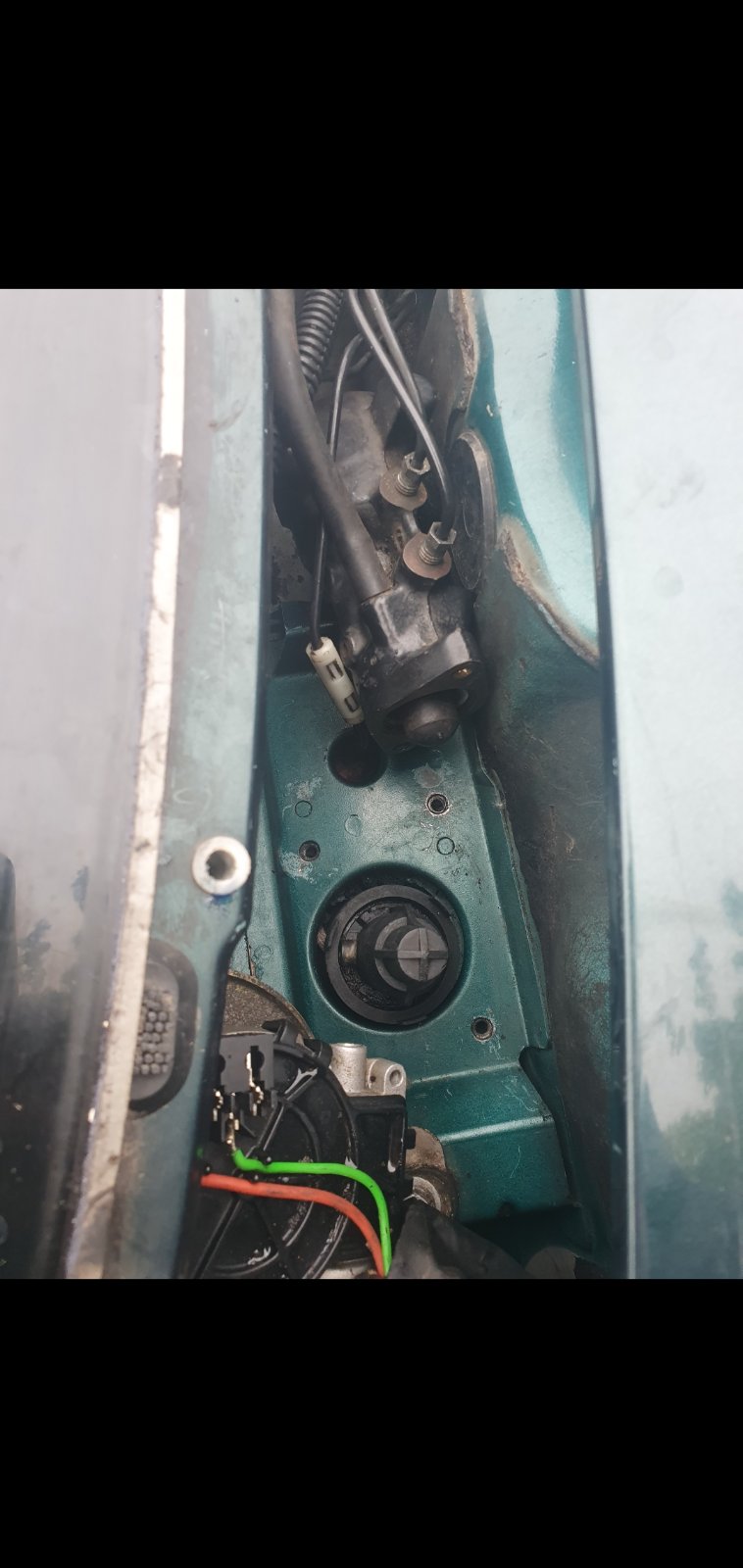

some more pictures
Attachments
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5644

Re: Citroen and Peugeot Official Parts Requests

Post by GiveMeABreak »

Ok, I think we finally have it. Now you mentioned the brake pedal assembly, I knew it was the Toe Board diagram that shows your part item (6) in your photo.
XM Toe Board.JPG
So for all the nuts shown these are the part numbers:

(30) 693319 £2.38
(31) 6939C2 (which is the replacement part for the original part 693983) £0.32
(32) 6936C6 £2.87
(33) 693633 £1.12
Please Don't PM Me For Technical Help

Marc
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Citroen and Peugeot Official Parts Requests

Post by wesacosa »

ah yes, thats the one. Thanks for that Marc
The part number I am looking for looks like part 15/16 (m6 cap bolts)
RichardW
Forum Treasurer
Posts: 10812
Joined: 07 Aug 2002, 17:12
Location: United Kingdom
My Cars: MK2 '17 C4GP 1.6 BlueHDi 120
'13 3008 1.6 HDi GripControl
x 983

Re: Citroen and Peugeot Official Parts Requests

Post by RichardW »

It's 15, but it's NFP. However, it gives the spec as M6 x 1mm thread x 20mm so you should be able to track some down.
Richard W
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Citroen and Peugeot Official Parts Requests

Post by wesacosa »

ok brilliant, thank you
User avatar
Dormouse
(Donor 2022)
Posts: 2010
Joined: 15 Apr 2021, 14:32
Location: Kingdom of Fife
My Cars: Peugeot 3008 Hybrid4, Fiat Ducato, Morris Mini.
plus notable cars I have owned :- Studebaker 1921, Daimler Consorts, Mercedes 220 Pontoon, Simca 1301, Austin Metropolitan, lots and lots of Minis, both steel and fibreglass bodied, Fiat 500F, Citroen GSA's, Skoda Estelle 120 Rally replica, DKW 1000S, Triumph Herald Estate, Warwick GT (very briefly)
x 666

Re: Citroen and Peugeot Official Parts Requests

Post by Dormouse »

Hi Marc. Please can you give me the part nos and prices for items 3 and 4 - the CV boot kits in the 3008 Hybrid4 driveshaft diagram you sent me. Also I need to get the RH scuttle drain hose for my 3008 so can I get the part no and price also.

thanks
