Lhs earth point

[GiveMeABreak]

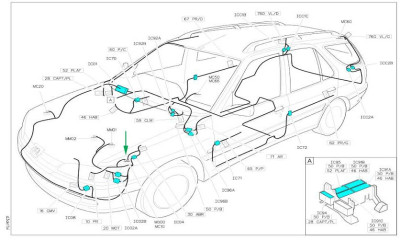

Ok, so I was right in the location. I've marked it with a green arrow for you:

Click or Tap Image to Zoom

[picassodad]

Thanks gmab.

I know of the earth points in that area on the chassis leg under the battery ECU area. I am pretty sure they are ok but I will check.

So the pug earth point diagram us a bit misleading insomuch that there is not an earth point inside the cabin on the passenger side, by the heater blower area, on the door pillar/wheel space bulkhead area ?

That's why I can't find it ?

If it ain't in that area code there isn't one ?

[picassodad]

Turns out I don't have that diagram, hopefully I can get it printed off.

Would you have the legend or key that says what the numbers mean please ?

[GiveMeABreak]

This is the diagram specific to this vehicle, variation and build date.

All 'IC' are interconnections
All 'MC' are Earth Points on the Bodywork
All 'MM' are Earths

All the numbers with letters i.e. 10 PR are Harnesses.

With PSA cars and electrics you have to think 'systems', not the vehicle as a whole. In other words if you are having an issue with the headlamps for example, then we need to look specifically at the exterior lighting diagram to find associated connections and earths. If you have a specific issue or system, then let me know to save time.

[picassodad]

Thank you so much gmab, learning bit by bit every day.

Nearly ready to replace down loom but need to check earth wire into door as that seems a common factor.

Thanks again, much appreciated

rich
