Parts request please

Post by wesacosa »

Hi all
would any be able to provide me the diagram of the parts for the water pump on a 1997 XUD11BTE please, especially the part number and location of the one shorter bolt
thank you
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: Parts request please

Post by white exec »

Hi Wes,

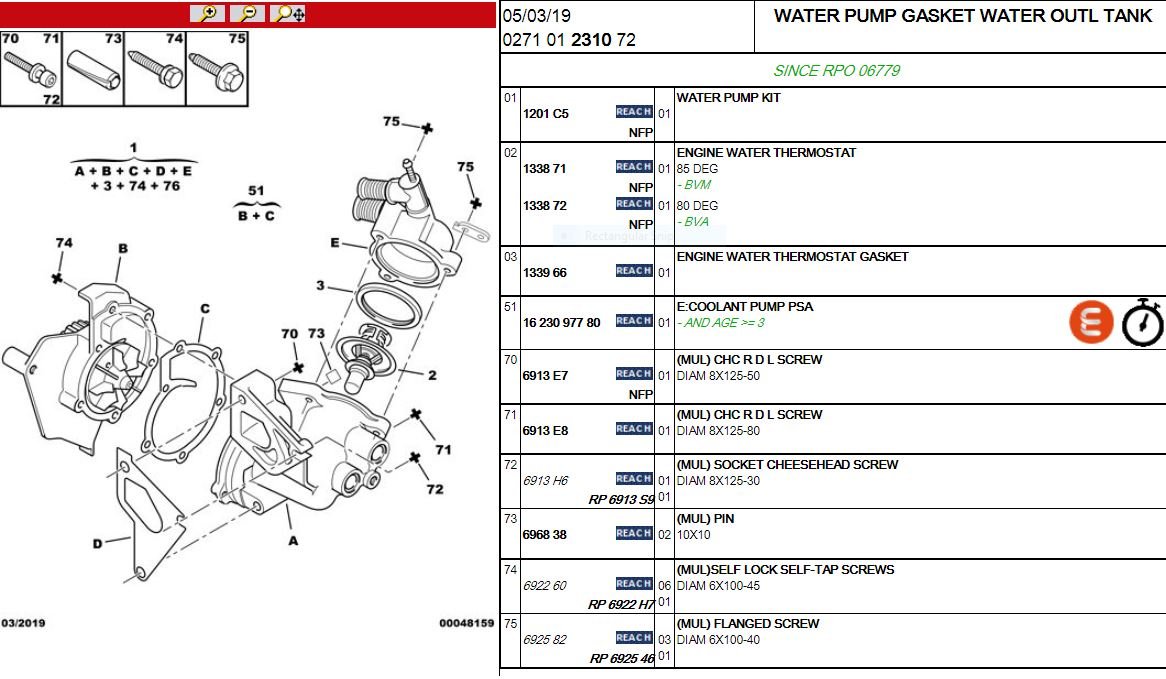

Here you go; two types, depending on RP number:
Click to enlarge
Wes's 2.1 water pump _1.JPG
Wes's 2.1 water pump _2.JPG
Hope helpful.
Chris
wesacosa
(Donor 2021)
Posts: 100
Joined: 04 May 2021, 17:34
Location: SE London
My Cars: Citroen XM 2.1 TD
x 3

Re: Parts request please

Post by wesacosa »

perfect thanks
