307cc Gearbox oil change

Post by CaptainJavan »

Hi all.

I am having a bit of a problem with my dads Peugeot 307cc. Its the 2.0 HDI 57 plate.

Recently the gearbox has been difficult to get into gear so I figured the first thing I might try is to change the gearbox oil.

However after getting the car up on the ramp I for the life of me cannot find where the drain plug is on this car. Its not where a drain plug would usually be.

Can anyone help?
wheeler
Posts: 6848
Joined: 21 Sep 2002, 19:07
Location: United Kingdom
My Cars:
x 717

Re: 307cc Gearbox oil change

Post by wheeler »

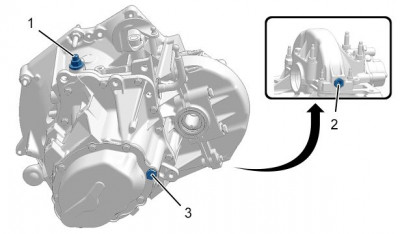

Should be on the lowest part of the diff housing.
1= Breather/filler
2= Drain plug
3= Level plug
Attachments
CaptainJavan
Posts: 2
Joined: 27 Nov 2020, 14:44
Location: Inverness
My Cars: Peugeot 307cc

Re: 307cc Gearbox oil change

Post by CaptainJavan »

Thanks very much for that. It seems to be partially covered by the subframe?
User avatar
white exec
Moderating Team
Posts: 7445
Joined: 21 Dec 2015, 12:46
Location: Sayalonga, Malaga, Spain
My Cars: 1996 XM 2.5TD Exclusive hatch RHD
1992 BX19D Millesime hatch LHD
previously 1989 BX19RD, 1998 ZX 1.9D auto, 2001 Xantia 1.8i auto
and lots of Rovers before that: 1935 Ten, 1947 Sixteen, 1960 P5 3-litre, 1966 P6 2000, 1972 P6 2000TC, and 1975 P6B 3500S
x 1752

Re: 307cc Gearbox oil change

Post by white exec »

The drain plug is a bit 'round the back' and close to the subframe (similar box on our BX), so you might need a slim spanner/wrench to unscrew it.
Chris
