Someone help figure out the diagram of this fuse box ?

[introfusion123]

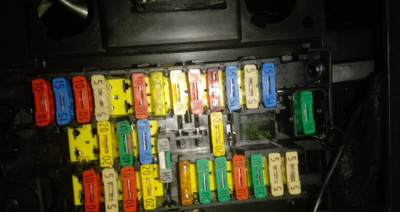

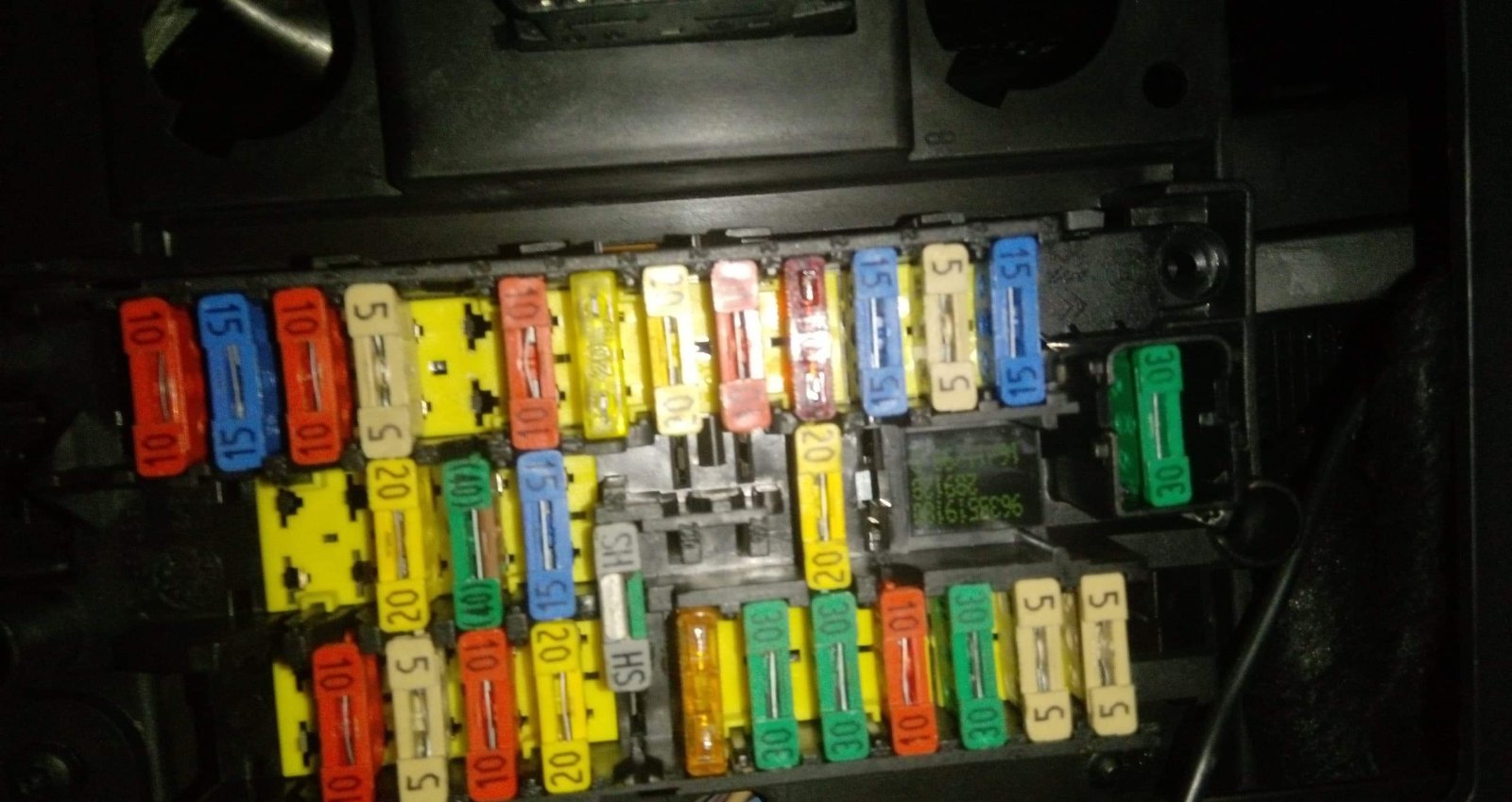

I have some issues with wipers , some guys says to check the fuse of wipers , but , I not have any diagram , and more strange it's from research a panel from xsara 2000 , it's different I'm find on internet , someone help me ? On the fuse box I have this code :
9635519180
The car it's a xantia x2 1999

[Hell Razor5543]

Try looking for fuse 24 (a 20 amp fuse). I am using a handbook for a 2000 Xantia, and that image does not match the diagram. However, it MIGHT be the clear yellow fuse on the bottom row (of your picture), between the SHUNT and the pair of 30 amp fuses.

[MGmike]

Is this picture the engine bay fuse box or the passenger compartment?
Wipers are usually in the engine bay fuse box. Are looking in the wrong place?

[white exec]

Hi, Intro'
Please post the car's VIN number (which will be hidden, except to forum staff), and I'll look out the fusebox details for you.

[Hell Razor5543]

I have a Xantia handbook (X2-GB-4001), and the windscreen electronics are (according to the list in the book) managed by fuse 24. The engine bay fusebox does not have anything to do with them.

[introfusion123]

Is this picture the engine bay fuse box or the passenger compartment?
Wipers are usually in the engine bay fuse box. Are looking in the wrong place?

It's from inside the car

[introfusion123]

Hi, Intro'
Please post the car's VIN number (which will be hidden, except to forum staff), and I'll look out the fusebox details for you.

VIN number is
VF7**************[VIN obfuscated, can be read by forum staff]

[GiveMeABreak]

Fuse F24 (20A) in the front passenger compartment is used for: Front and rear wiper switch. Front screen wiper motor and pump. Rain sensor. Wiper timer. So unless all of these are not working it won't be a fuse.

[CitroenCrazy]

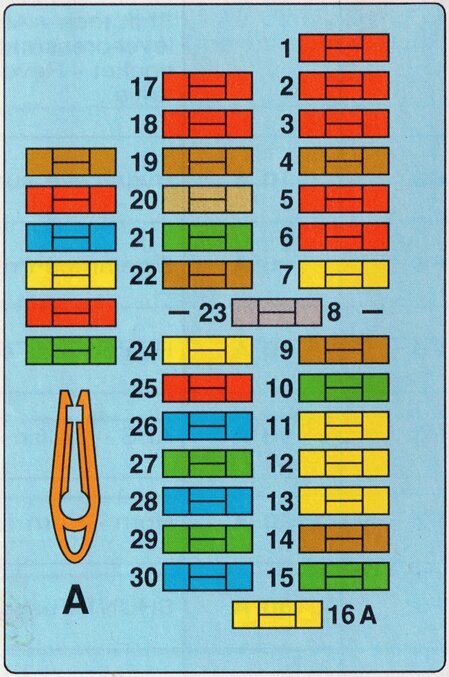

I'd already scanned this page from my year 2000 handbook, so this looks like a good time to share it.

[xantia_v6]

The phot in the first post obviously looks nothing like the diagram above, but the car is question is a late LHD car, which may have got a different fuse box that was never fitted to UK cars.

[Steve Walsh]

Not sure if it is of any help, but when I had a 406 estate, the picture of the fuse panel in the hand book was upside down, Took a while to figure it out

[introfusion123]

Fuse F24 (20A) in the front passenger compartment is used for: Front and rear wiper switch. Front screen wiper motor and pump. Rain sensor. Wiper timer. So unless all of these are not working it won't be a fuse.

Thanks , but when a replace the fuse was a q 10 amo one , but slow turning , tempo not working , but work only fast on, what could be wrong?

[GiveMeABreak]

I'm not quite understanding your comment here "q 10 amo one , but slow turning , tempo not working"

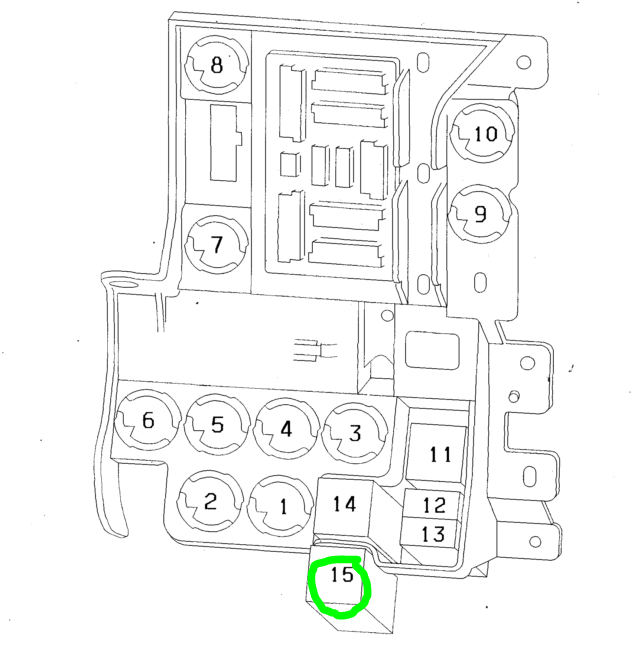

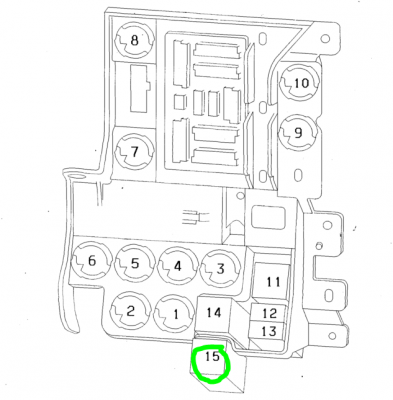

But if you are having a speed issue / timing issue with the wipers, then the problem may be with the relay (15) in the diagram below. This is in the inside near the fuseboxes and controls the windscreen wiper timer - if this is what you are saying is the issue..

[introfusion123]

When I'm saying it's not working temp I'm meaning , the timer of 15-20 seconds timer like rear wiper

[introfusion123]

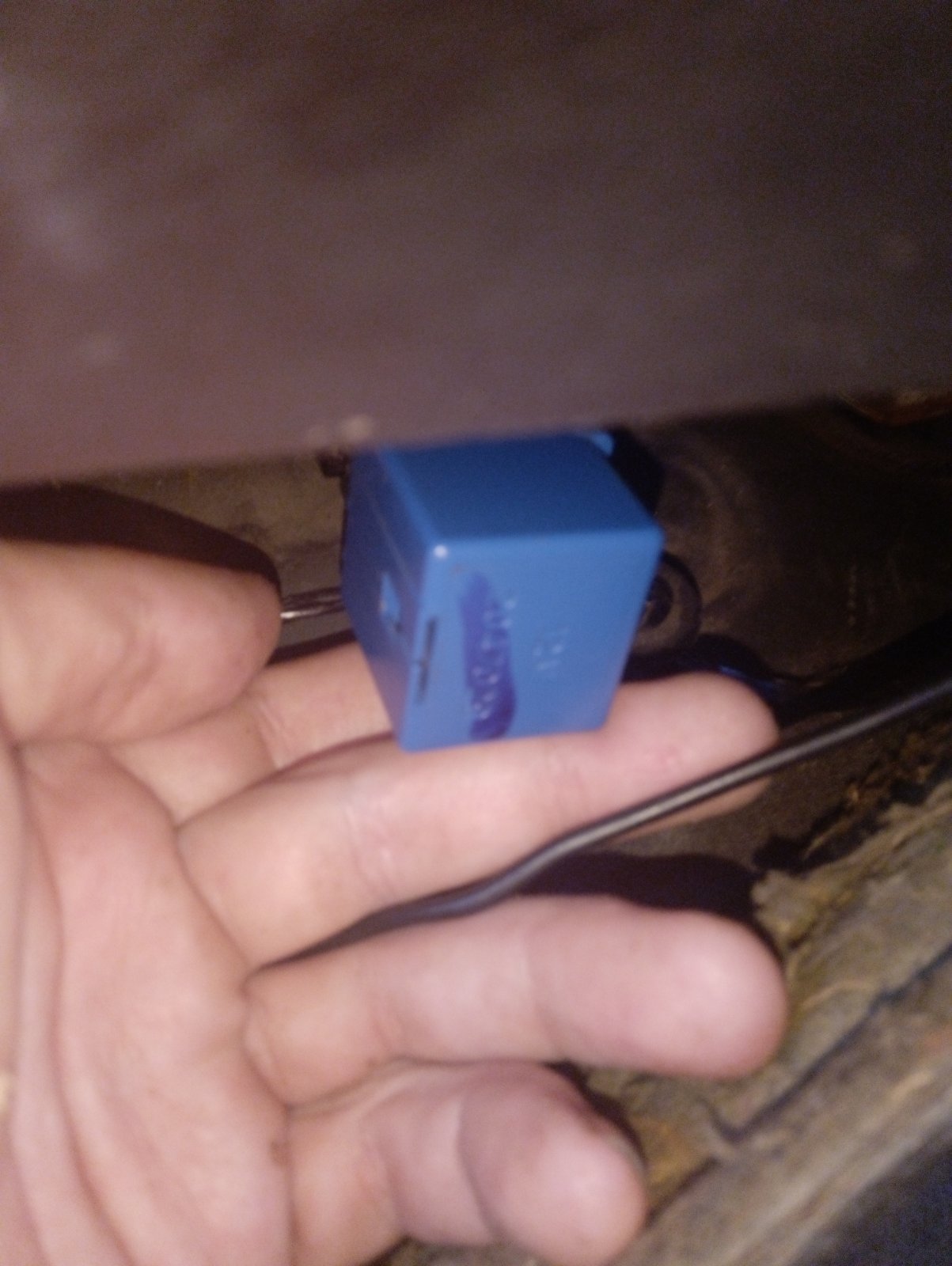

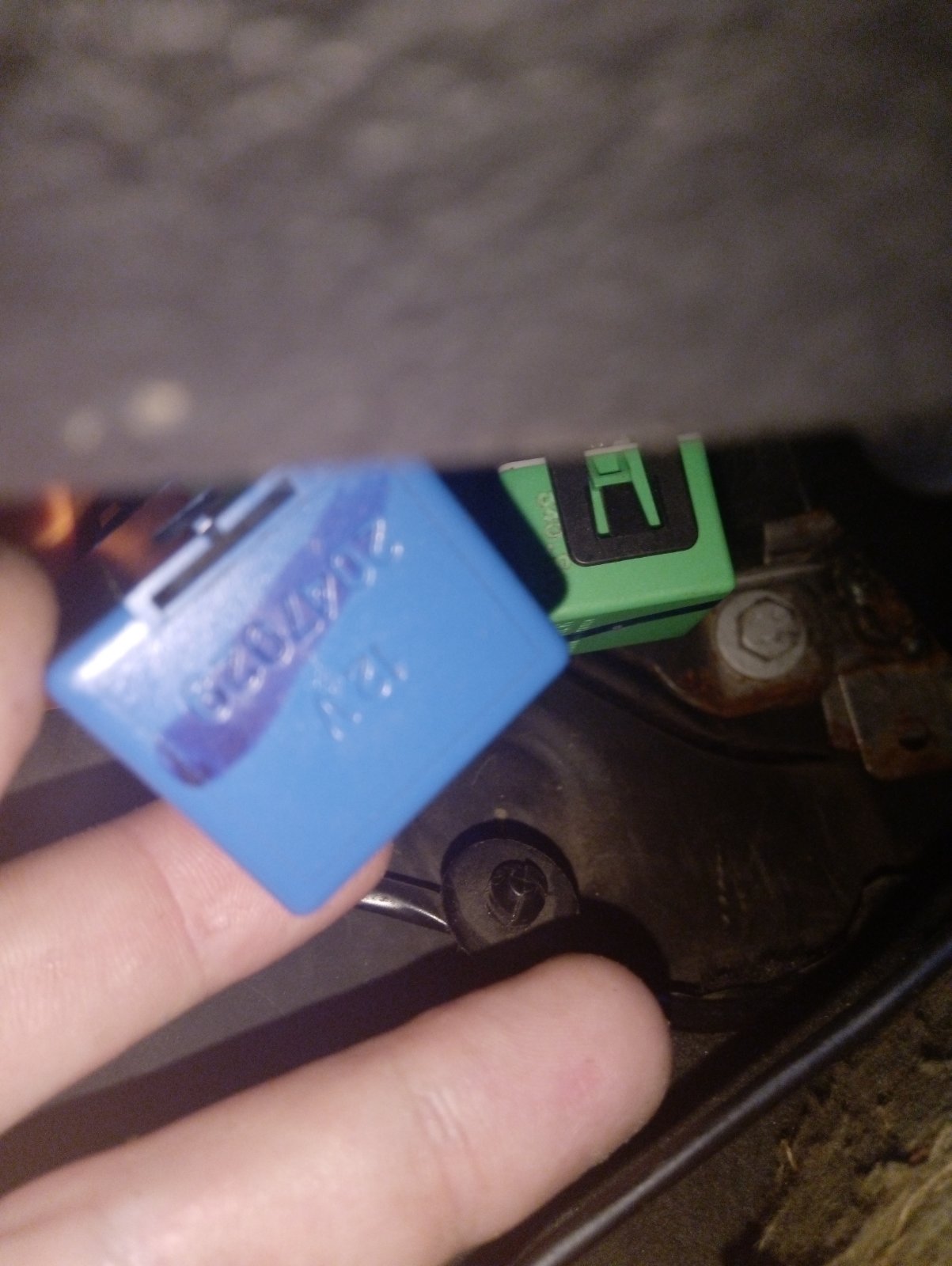

I'm find the relay , it's a blue one
