Can anyone identify these C4 Picasso parts ?

This is the Forum for all your Citroen Technical Questions, Problems or Advice.
jml
Locked user account
Posts: 258
Joined: 31 Jan 2013, 22:05
x 37

Can anyone identify these C4 Picasso parts ?

Unread post by jml »

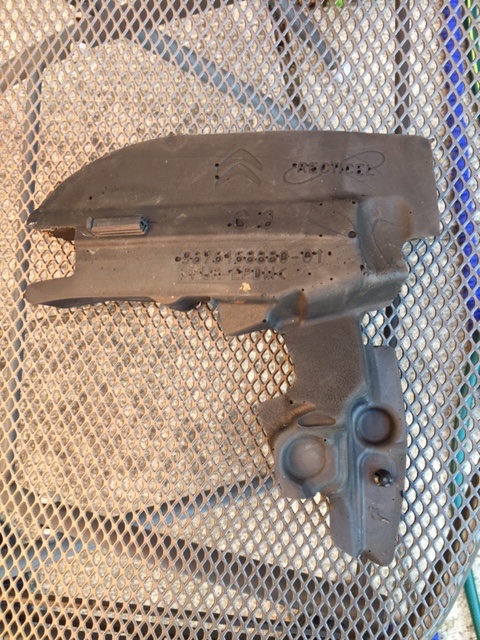

Both parts have been left off a C4 Picasso after a body repair that was largely cosmetic. Unfortunately both front and rear were repaired so I am not sure which end these came from. The numbers on the two bits are 96761688 80 and 96783954 80. The larger of the two seems to be a shaped piece of foam rubber about as big as my hand and the smaller about the size of a cigarette packet and is of a much more rigid plastic. I would be interested to know if they have any useful purpose. Asking the repairer for advice is not worthwhile!
Smaller part shown first. The vehicle is C4 Picasso reg NU14 RFF
Attachments
Julian Leyton (RIP) 2023
User avatar
GiveMeABreak
(Donor 2016)
Posts: 41989
Joined: 15 Sep 2015, 19:38
x 6955

Re: Can anyone identify these C4 Picasso parts ?

Unread post by GiveMeABreak »

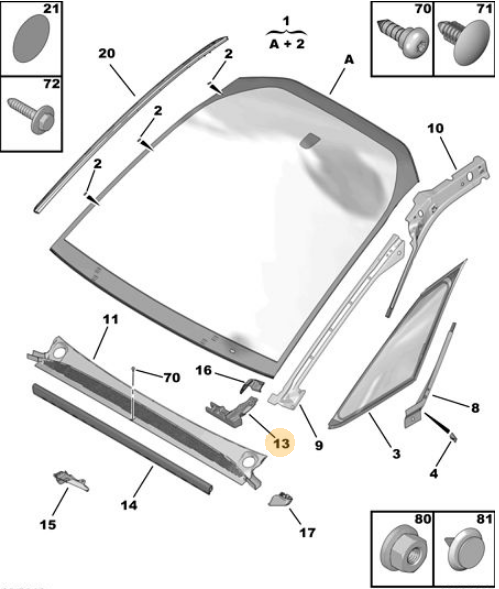

Ok, so Item (13) is 9676168880 Left side Foam (ETANCHEITE COLLECT)
and 9678395480 item (16), is the left closer. :)
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
jml
Locked user account
Posts: 258
Joined: 31 Jan 2013, 22:05
x 37

Re: Can anyone identify these C4 Picasso parts ?

Unread post by jml »

Marc

You’re a superstar 😀

This was for a good friend of mine and I’ve just said to him about you ‘How this guy knows as much as he does I have no idea. He’s a bloody walking Citroen encyclopaedia’ 😳

Thanks again for such a quick and helpful reply.

Cheers

Julian
Julian Leyton (RIP) 2023
User avatar
GiveMeABreak
(Donor 2016)
Posts: 41989
Joined: 15 Sep 2015, 19:38
x 6955

Re: Can anyone identify these C4 Picasso parts ?

Unread post by GiveMeABreak »

Just had 2 chocolate cakes before doing that - so sugar levels buzzing no doubt! :-D
