Multiple fault codes

Post by Benscab123 »

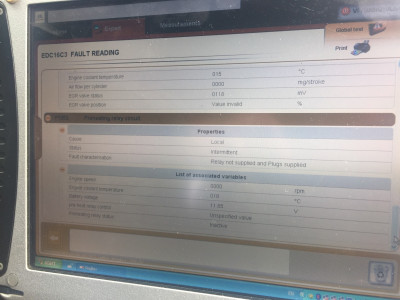

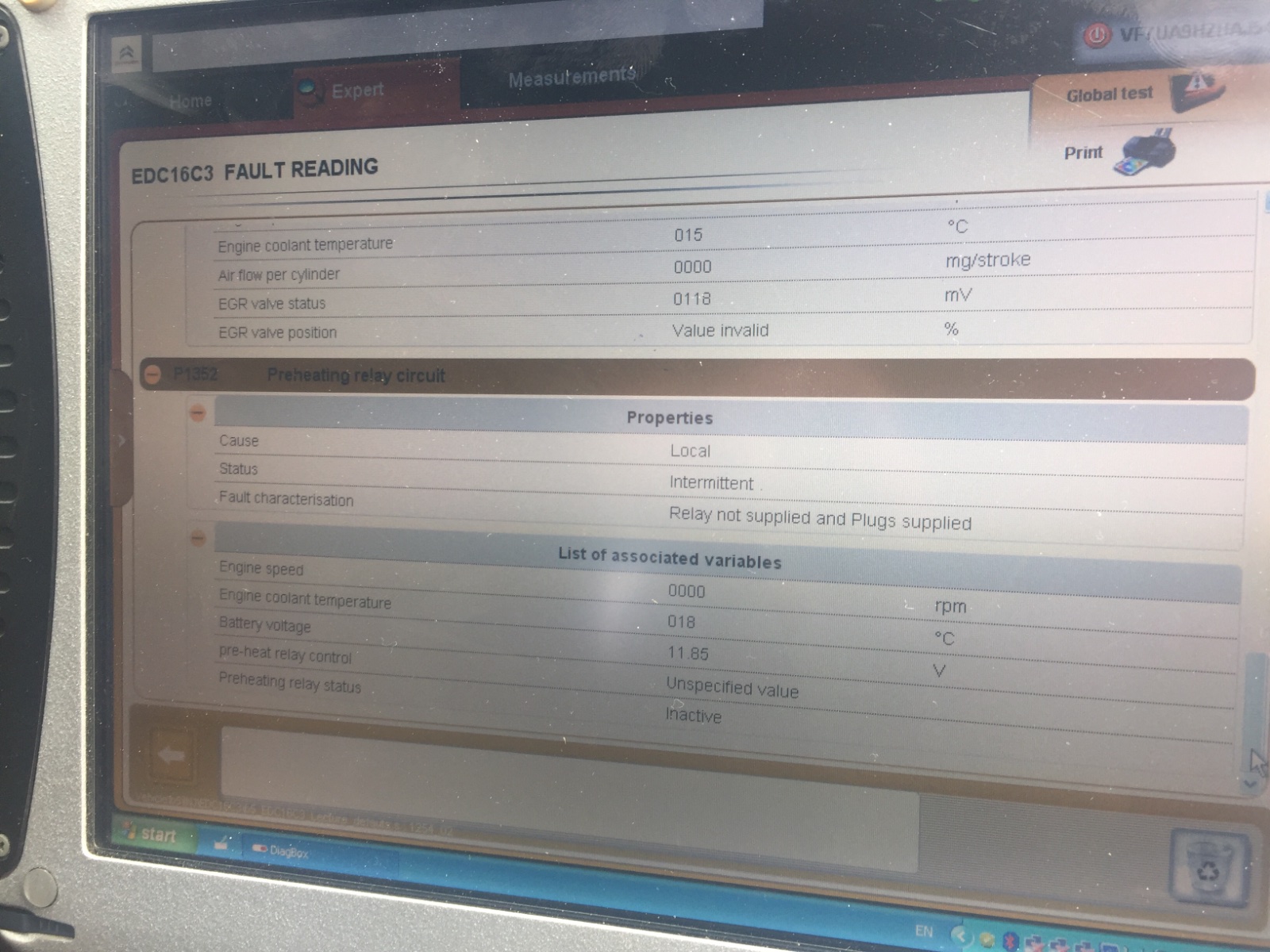

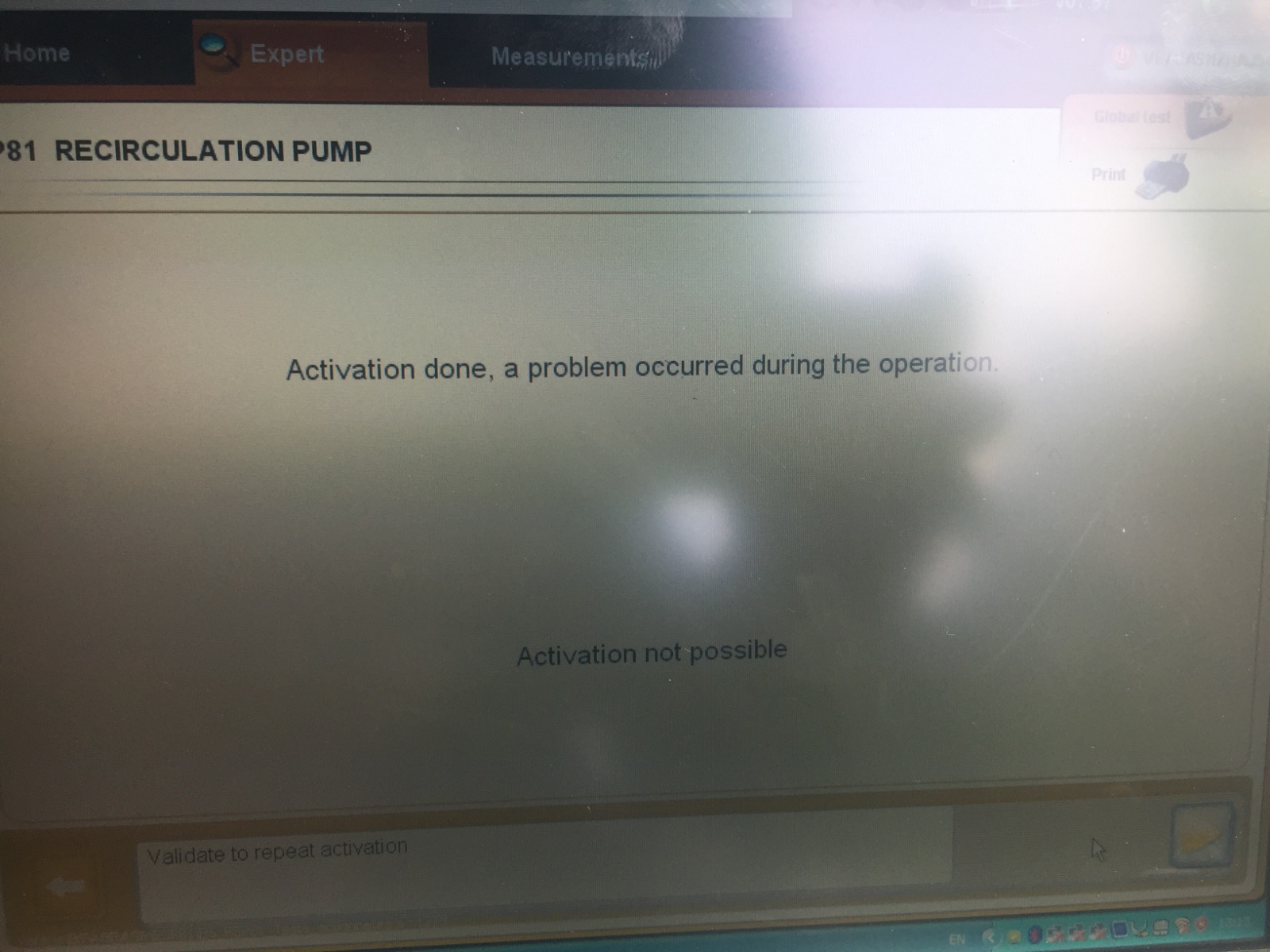

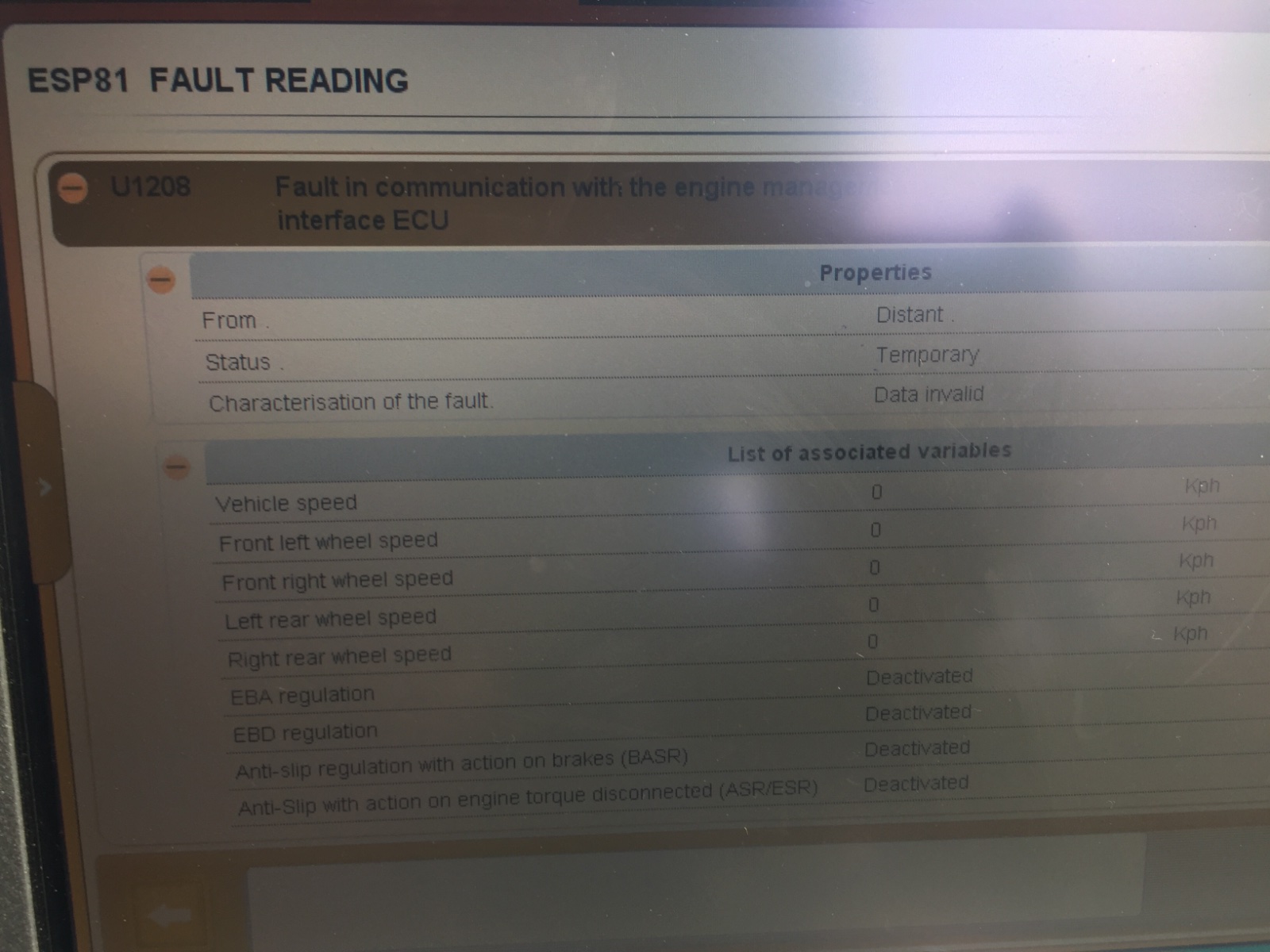

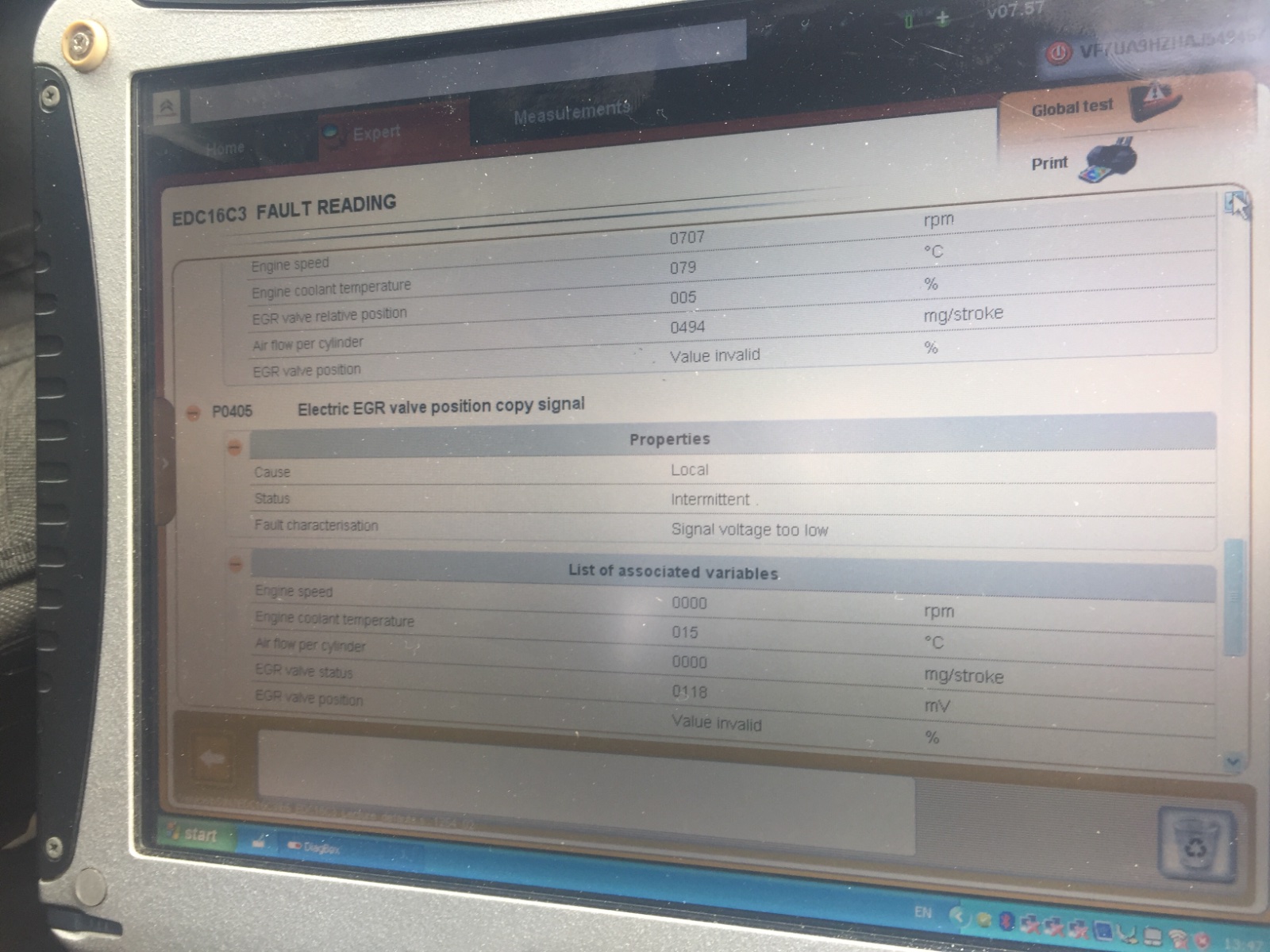

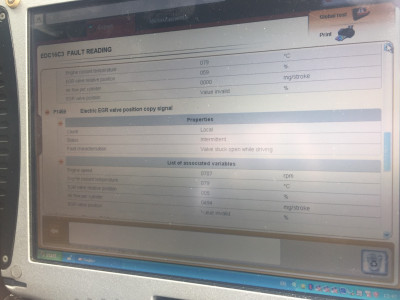

Latest fault reading below. Any help appreciated.
Attachments
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Multiple fault codes

Post by moizeau »

Ignore the pre heat fault, it's a Cit with an HDI so it was born with it. I had the torque invalid one, it disappeared when I changed the EGR??
Have you done an actuator test on the EGR and tested for 5v at the connector?
Pete
Notice the BX is still top the list but sadly gone
Benscab123
Posts: 158
Joined: 09 Jul 2019, 20:33
Location: East Yorkshire
My Cars: 2010 C4 grand Picasso 1.6 hdi
2008 Renault grand scenic 1.9d
x 3

Re: Multiple fault codes

Post by Benscab123 »

Yes tested for 5v ok, actuator test I couldn’t hear anything open or close
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Multiple fault codes

Post by moizeau »

EGR is buggered then. The EGR can be taken apart. There is a mechanical side and an electrical side. If you haven't already read my posts 'new toy with issues', it explains the test that can be carried out. When you remove and change the EGR, undo the heat exchanger bracket a tad to give a little play so it doesn't damage the 'needs to be exhaust' air tight joint.
Pete
Notice the BX is still top the list but sadly gone
User avatar
myglaren
Forum Admin Team
Posts: 25365
Joined: 02 Mar 2008, 13:30
Location: Washington
My Cars: Mazda 6
Ooops.
Previously:
2009 Honda Civic :(
C5, C5, Xantia, BX, GS, Visa.
R4, R11TXE, R14, R30TX
x 4888

Re: Multiple fault codes

Post by myglaren »

Done
Benscab123
Posts: 158
Joined: 09 Jul 2019, 20:33
Location: East Yorkshire
My Cars: 2010 C4 grand Picasso 1.6 hdi
2008 Renault grand scenic 1.9d
x 3

Re: Multiple fault codes

Post by Benscab123 »

Just out of interest, if the egr DID open and close under testing what would that point towards the fault being ? I’m going to test it again because now I’m doubting myself
Benscab123
Posts: 158
Joined: 09 Jul 2019, 20:33
Location: East Yorkshire
My Cars: 2010 C4 grand Picasso 1.6 hdi
2008 Renault grand scenic 1.9d
x 3

Re: Multiple fault codes

Post by Benscab123 »

Anyone ?????
User avatar
moizeau
(Donor 2022)
Posts: 1580
Joined: 12 Jan 2015, 16:08
Location: France 36
My Cars: 91 BX TZD Estate. Dead but loved
407 HDI 136 auto
C4 2l petrol coupé
2010 Dispatch III HDI 90
AND a 1980 Z1000ST
AND a 1983 GPz1100 inj
AND a 1995 Zephyr 1100
AND a 1980 Z650 (my moped)
x 315

Re: Multiple fault codes

Post by moizeau »

It could be a number of things. It's best to be methodical. Recheck the EGR and go from there otherwise you're guessing and possibly changing bits and spending time and money on things unnecessarily.
