Help! Changed driveshaft and CV boot rubbing on anti roll

This is the Forum for all your Citroen Technical Questions, Problems or Advice.

Moderator: RichardW

Gibbo2286
(Donor 2020)
Posts: 7170
Joined: 08 Jun 2011, 18:04
Location: GL15***
My Cars: 2006 C5 2.0 Litre HDI VTR Automatic Estate.(now sold on)
Currently Renault Zoe 2014 ZE
x 2500

Re: Help! Changed driveshaft and CV boot rubbing on anti roll

Post by Gibbo2286 »

How do the old and the new compare when side by side, can you see a difference?

Maybe just the gaiter is wrong.
Man is, by nature, a lazy beast, he does not need twice encouraging to do nothing.
User avatar
Paul-R
Donor 2023
Posts: 6916
Joined: 07 May 2009, 16:24
Location: Wirral, NW England; Vaucluse 84, France
Lexia Available: Yes
My Cars: 2015 1.6 Blue HDi 120 Peugeot 308 Active SW
2013 2.0 HDi 163 C5 Exclusive Tourer
2003 2.0 HDi 110 C5 Exclusive Estate (Gone)
2001 2.0 HDi 90 Xsara Estate (Gone)
x 1369

Re: Help! Changed driveshaft and CV boot rubbing on anti roll

Post by Paul-R »

If the driveshaft is the correct length but has a thicker shaft and a bigger CV maybe it is from a diesel or more powerful petrol variant?
As I get older I think a lot about the hereafter - I go into a room and then wonder what I'm here after.

Inside every old person is a young person wondering what the hell happened.

"Trying is the first step towards failure" ~ Homer J Simpson​
User avatar
bobins
Donor 2023
Posts: 5697
Joined: 05 Jul 2012, 18:07
Location: Midhurst, West Sussex
My Cars: Kia Sportage
Mazda BT-50
Land Rover SIII SWB
V-F-R800
SL320
MX5
x 2871

Re: Help! Changed driveshaft and CV boot rubbing on anti roll

Post by bobins »

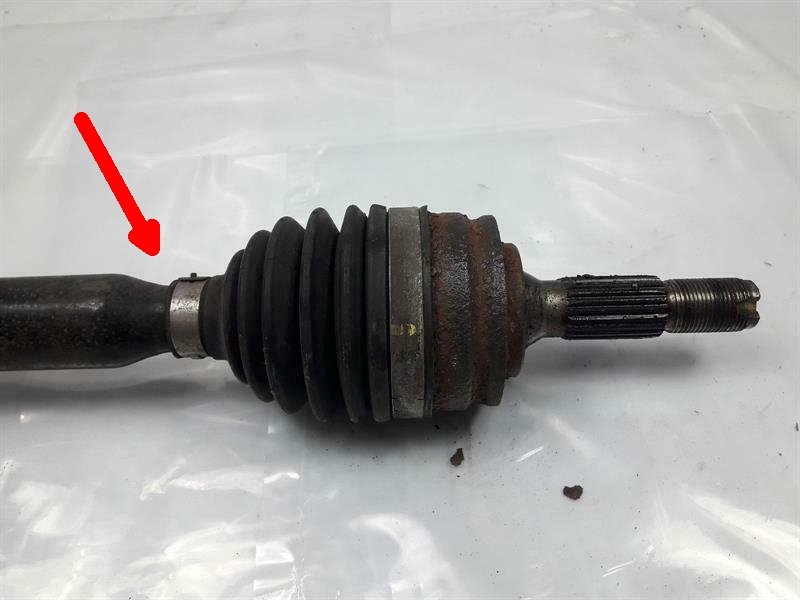

There seem to be quite a few wrongly labelled driveshafts out there, but it would seem that you need the one that narrows towards the CV joint as per the picture. That narrowing allows the ARB to not foul the shaft.
C3 driveshaft - eBay, fair use
C3 driveshaft - eBay, fair use
Sadly no longer a C5 owner :(
User avatar
GiveMeABreak
Forum Admin Team
Posts: 36996
Joined: 15 Sep 2015, 19:38
Location: West Wales
My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow
x 5645

Re: Help! Changed driveshaft and CV boot rubbing on anti roll

Post by GiveMeABreak »

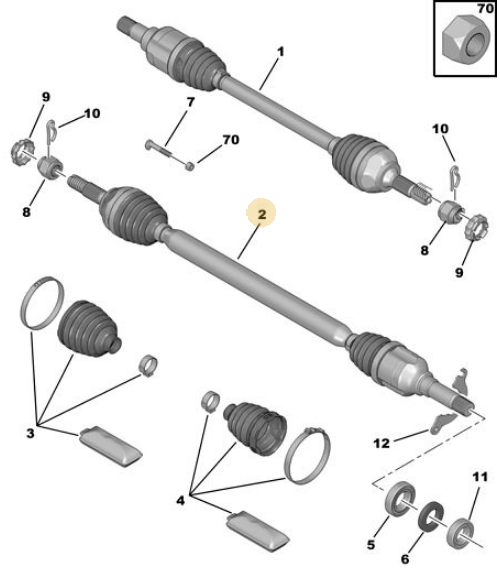

Yes, Item 2 in the diagram shows the narrowing clearly as compared to the left hand one (item 1), so one assumes that mist have a different ARB layout so is not required.
C3 DS.PNG
Please Don't PM Me For Technical Help

Marc
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Help! Changed driveshaft and CV boot rubbing on anti roll

Post by ultra2extreme »

Thank you all for your input. What a ballache this has all been hahah, so i tried to recondition the old shaft and when i cut off the gaiter the end of the CV joint fell away, something i had not seen or heard of before :lol: :lol: its held on by a very specific fitting of the inner CV boot that seems to hold the joint together, meaning the POS universal boot was never going to work. Also it was far too wide at the narrow end and didnt seal properly around the shaft. So ive had to say eff it and driven the car to garage on the new DS. On the ground the clearance is plenty between the ARB and the gaiter i just think on any extreme tilt itll rub and probably enough to rip it, so i think ill be needing an OEM shaft or at least the right CV boot for the original. Does anyone know tho will OEM CV boots go on over a cone? or would i have to pull and reseat the CV joint?
ultra2extreme
Posts: 27
Joined: 28 May 2019, 22:40
Location: Wales Cwm Cou
My Cars: C3 II HDi 2011
x 1

Re: Help! Changed driveshaft and CV boot rubbing on anti roll

Post by ultra2extreme »

So just to effectively tie up this thread.

I lowered the car back down and checked the clearance and it was ok, put a filled plastic bottle between the two with a pin hole in the top and bounced it, checked for spray and no spray. Garage looked said they didnt see an issue gave it a MOT. So i've sprayed a little yellow paint on the DS under the gaiter and will drive for a while then check for paint on the gaiter or signs of rub.

seems ok!
