Hello
Does anybody know where the canister purge electrovalve(1502 H8) is located? I would like to replace mine but can't find a guide on ServiceBox and the scheme is not very helpful.
Car is C4 VTS 180.
Thanks
Canister purge electrovalve - C4 VTS
Moderator: RichardW
Re: Canister purge electrovalve - C4 VTS

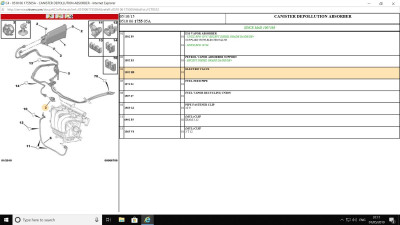

Follow pipe number 6 which should lead you to the electrovalve (number3). Cant remember off hand exactly where its located but they are sometimes hidden in the inner wing next to the charcoal cannister.
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: Canister purge electrovalve - C4 VTS
Thanks.
It seems it's positioned somewhere around intake manifold, but we'll see today.
How to tell if canister is faulty?
I know valve is since I've been getting petrol smell in the cabin under hard braking and the valve's been clicking for some time now.
It seems it's positioned somewhere around intake manifold, but we'll see today.
How to tell if canister is faulty?
I know valve is since I've been getting petrol smell in the cabin under hard braking and the valve's been clicking for some time now.
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: Canister purge electrovalve - C4 VTS
Can't find it and can't find any pipes going between the engine and the right wing.
- GiveMeABreak
- Forum Admin Team
- Posts: 37302
- Joined: 15 Sep 2015, 19:38
- Location: West Wales
- My Cars: C3 Aircross SUV HDi Flair Peperoncino Red (The Chili Hornet)
C5 X7 2.0 HDi Exclusive Mativoire Beige (The Golden Hornet)
C3 1.6 HDi Exclusive Aluminium Grey (The Silver Hornet)
C5 MK II 2.0 HDi Exclusive Obsidian Black
C5 MK I 2.0 HDi SX Wicked Red
Xantia S2 2.0 HDi SX Hermes Red
C15 Romahome White
XM 2.0 Turbo Prestige Emerald Green Pearlescent
XM 2.0 Turbo Prestige Polar White
XM 2.0 SX Polar White
CX 20 Polar White
GS 1220 Geranium Red
CX 2.4 Prestige C-Matic Nevada Beige
GS 1000 Cedreat Yellow - x 5712
Re: Canister purge electrovalve - C4 VTS
A bit of info about its function and operating conditions:
Function: Fuel vapour recycling (canister)
Engine stopped: The electrovalve is closed, the canister absorbs the fuel vapours coming from the tank.
The electrovalve, controlled by the engine ECU, permits the recycling of the petrol vapours held in the canister.
Recycling of petrol vapour is authorised in the following conditions:
As soon as the canister has to be purged, the engine ECU temporarily causes the engine to be running at an even mixture.
Have a look near the inlet manifold and throttle butterfly as in the diagram:
You could have assembly 'A' or 'B':
"A" assembly: Fuel tank unit module with separate fuel filter.
"B" assembly: Fuel gauge/pump module with integrated fuel filter.
(1) Fuel pressure regulator.
(2) Throttle butterfly housing .
(3) inlet manifold.
(4) canister discharge electrovalve.
(5) Canister reservoir (active carbon filter).
(6) Petrol breather blow-by pipe system.
(7) Fuel tank.
(8) Fuel pump and gauge assembly (submerged in the fuel tank).
(9) Fuel supply pipe.
(10) Fuel return to tank hose.
(11) Fuel filter .
(12) Petrol injectors.
(13) Petrol injector supply rail.
(14) Valve SCHRADER (according to model).
(15) Fuel gauge/pump module with integrated fuel filter.
(16) Fuel filter .
(17) Fuel pressure regulator.
Special features:
Injection rail without petrol pressure regulator
Fuel pressure regulator incorporated into the sender unit
Injection rail without fuel return
Function: Fuel vapour recycling (canister)
Engine stopped: The electrovalve is closed, the canister absorbs the fuel vapours coming from the tank.
The electrovalve, controlled by the engine ECU, permits the recycling of the petrol vapours held in the canister.
Recycling of petrol vapour is authorised in the following conditions:
- Coolant temperature above 60°C
- Air temperature higher than 5°C
As soon as the canister has to be purged, the engine ECU temporarily causes the engine to be running at an even mixture.
Have a look near the inlet manifold and throttle butterfly as in the diagram:
You could have assembly 'A' or 'B':
"A" assembly: Fuel tank unit module with separate fuel filter.
"B" assembly: Fuel gauge/pump module with integrated fuel filter.
(1) Fuel pressure regulator.
(2) Throttle butterfly housing .
(3) inlet manifold.
(4) canister discharge electrovalve.
(5) Canister reservoir (active carbon filter).
(6) Petrol breather blow-by pipe system.
(7) Fuel tank.
(8) Fuel pump and gauge assembly (submerged in the fuel tank).
(9) Fuel supply pipe.
(10) Fuel return to tank hose.
(11) Fuel filter .
(12) Petrol injectors.
(13) Petrol injector supply rail.
(14) Valve SCHRADER (according to model).
(15) Fuel gauge/pump module with integrated fuel filter.
(16) Fuel filter .
(17) Fuel pressure regulator.
Special features:
Injection rail without petrol pressure regulator
Fuel pressure regulator incorporated into the sender unit
Injection rail without fuel return
Please Don't PM Me For Technical Help
Marc
Marc
Re: Canister purge electrovalve - C4 VTS
The valve is meant to click, on some models they can actually be quite loud, especially at idle. i’ve even seen some people wrap them in sponge to try & muffle them.
As far as the canisters go, cant think that ive ever had to replace one for anything but accident damage.
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: Canister purge electrovalve - C4 VTS
It's been audible at idle, for the last two winters, it hadn't been audible before so I assume it's not in the best order. And since the car hadn't been damaged, I guess petrol smell should be accounted to that valve because no leaks were found anywhere.
GiveMeABreak, thanks for a detailed info
I'll give it another look today, hope I'll find it. It has to be somewhere because it's clicking
GiveMeABreak, thanks for a detailed info
I'll give it another look today, hope I'll find it. It has to be somewhere because it's clicking
- Fake Concern
- Posts: 1033
- Joined: 27 Dec 2012, 10:41
- Location: East Sussex
- My Cars:
- x 64
Re: Canister purge electrovalve - C4 VTS
It's under the front wing drivers side on a RHD car. You can check it working on Diagbox.
http://c4owners.org/plugins/forum/forum ... ost_115479
http://c4owners.org/plugins/forum/forum ... ost_115479
Fake Concern, Volvo C30 T5 2011
Mrs Concern, Renault Moodus 1.6 Privilege 2004
Ms Concern No1, Pug 207 1.4 2008
Ms Concern No2, Citroen C4 VTS 2007
Mrs Concern, Renault Moodus 1.6 Privilege 2004
Ms Concern No1, Pug 207 1.4 2008
Ms Concern No2, Citroen C4 VTS 2007
- Cutac
- Posts: 348
- Joined: 28 Aug 2016, 19:36
- Location: Croatia
- My Cars: 2011 B7 Citroen C4 1.4 VTi
2006 Citroen C4 2.0 VTS - x 20
Re: Canister purge electrovalve - C4 VTS
That's the canister, but I'm looking for the valve.
