Wing mirror c3 picasso

[Leonard_Wright]

I have a Citroen C3 Picasso 2009 (2009-2016 varient) 1.6 HDI.

The passenger wing mirror the casing has come off. The glass, electrics are all OK so I just need replacement casing.

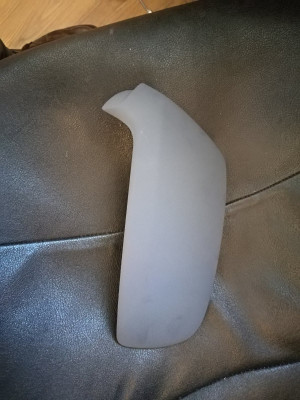

Citroen sent me a part that clips on. But this not the right size even though they took my reg down.

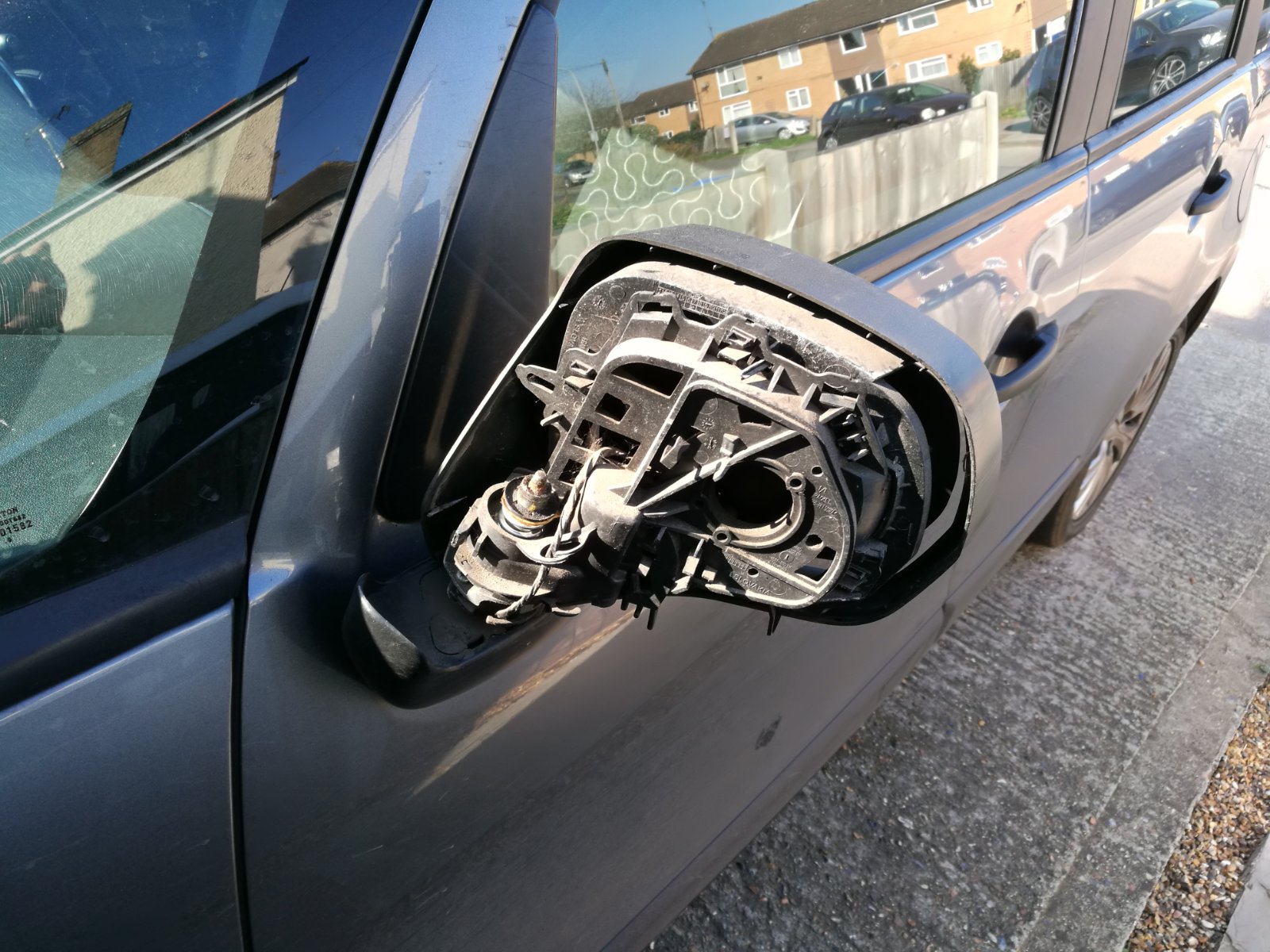

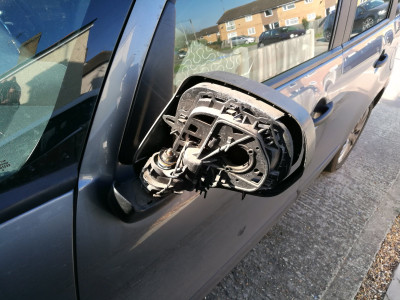

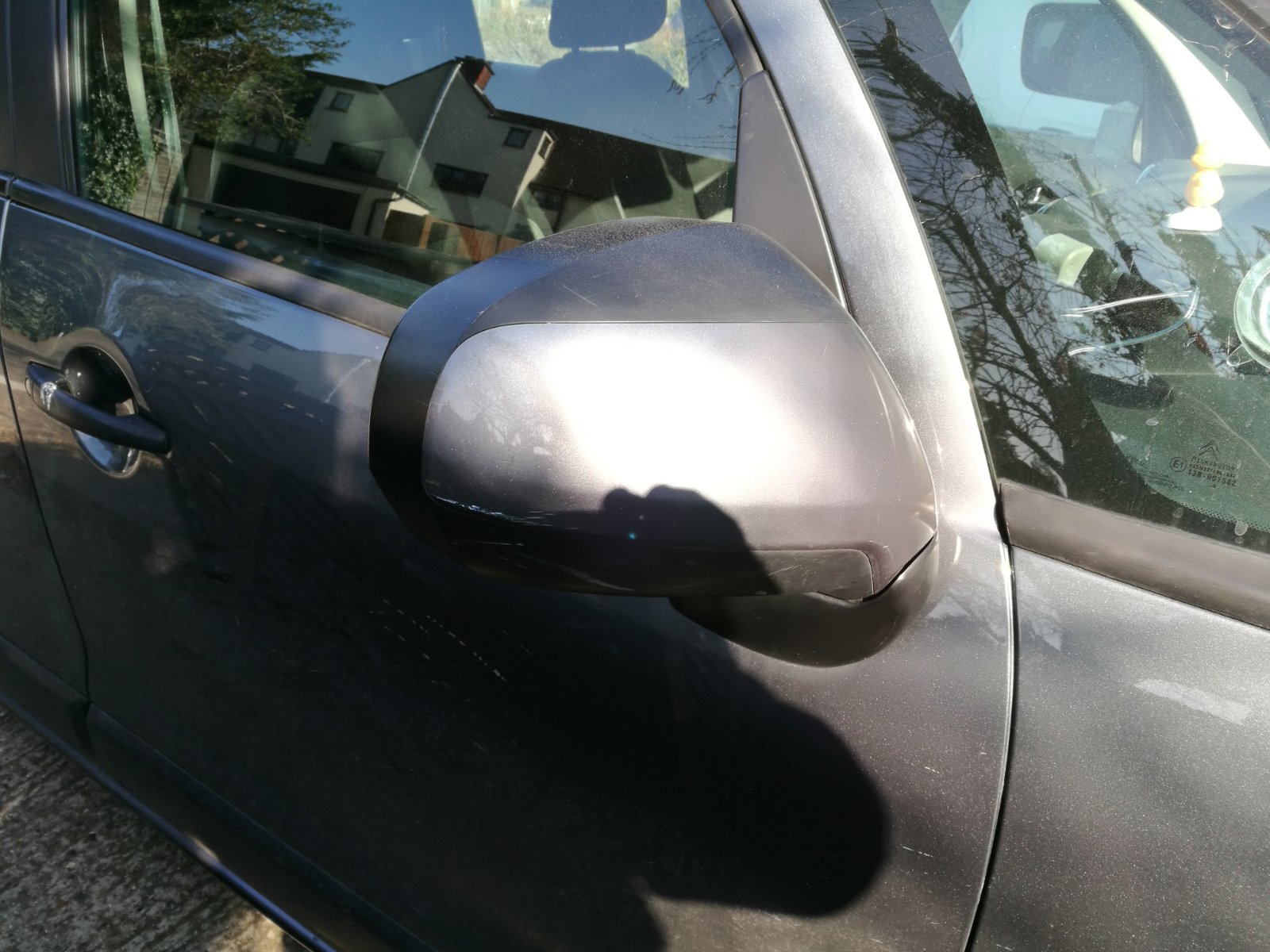

I have attached pictures showing the damaged wing, the drivers wing and what Citroen sent me.

I want to know exactly what I should be asking for without having to go to the whole process if buying a new unit and wiring it in.

Can anyone help?

ta

[RichardW]

There are 3 variants.... post up your VIN and we can see which is fitted. Do you know what part number was supplied?

[Leonard_Wright]

VIN is VF7**************[VIN obfuscated, can be read by forum staff]
Part citoren sent me is 8152 A8

[Gibbo2286]

Do those mirrors look odd? left and right different types?

[Leonard_Wright]

@gibbo2286 No they are the same

[GiveMeABreak]

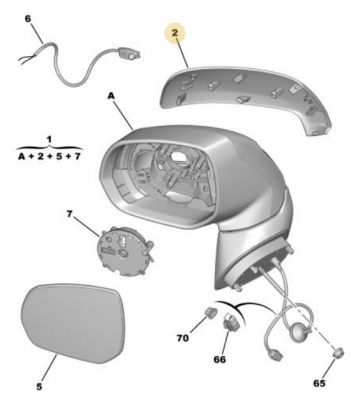

Your problem is that the cover itself is the part shown on your last photo (number 2 on the diagram - the painted part) not the housing. From your other pictures, it looks like it is the housing that is missing, not just the cover - so you need the whole mirror. There are no other parts sold for this.

The complete passenger mirror for your car new is priced at £143.42 inc. VAT - unpainted

Part number is:

8153XQ (Left hand side)

Mirrors are supplied primed but not painted and are the same price for each. If looking for a second hand one, then search on this part number.

[Leonard_Wright]

Many thanks.

Price is very high

[GiveMeABreak]

Well a wing mirror for my C5 is £1000, so cheap by comparison. Use the part number I gave you to look for a second hand one:

There's an original Citroen one here from Germany for 67.74 + £16 shipping - still less than half the price of the dealer....

https://www.ebay.co.uk/itm/ORIGINAL-Cit ... Sw4GFbOlXH

Beware some 'pattern' parts that are around the £50 mark - they are not original parts - they may be fine, but no guarantees.
