RD45 upgrade for Peugeot 308

This unit is the RD4 or RD45 system, made by Continental.
Usually standard equipment unless another system is specified as an option. There are Single & Dual Tuner versions. RD45 features over the RD4: The RD45 has USB connectivity & integrated Bluetooth module supporting Phone & Audio Streaming.

Moderator: GiveMeABreak

Post Reply
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

RD45 upgrade for Peugeot 308

Post by xantia_v6 »

I am investigating which variant of RD4 and display are fitted and check what components would be needed to upgrade my 308 CC for RD45. The VIN is VF3**************[VIN obfuscated, can be read by forum staff] .

I previously did not think it worth the effort, but had a nightmare day yesterday trying to drive across town while people kept phoning me.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: RD45 upgrade for Peugeot 308

Post by EDC5 »

Based purely on age I think your screen will be new enough. I'm not sure if the software version can be checked on servicebox. You need software version V.71 or higher for the RD45.
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

OK, a quick check with Diagbox shows that my display seems to be 96 666 313 80 (additional reference 96 758 595 80) version 72.01.
The existing RD4 is 96 650 540 77 (additional reference 96 750 284 77) version 96.00.
A potential oddity is that the Geographical Zone is set to Asia, I don't know if that is a software or hardware configuration.
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

Having done a bit more searching, I have realised that the 308CC and RCZ have a piano-black (glossy) finish on the radio facia, so the replacement RD45 is a bit rare.

Can anyone tell me (or point to a picture of) the location of the hands-free microphone when factory-fitted to a 308CC?
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

This one with the correct front panel https://fr.aliexpress.com/item/Suitable ... 3c00RtGgFL was available yesterday, but I put it into my basket, and overnight it became unavailable. It did seem to have only one antenna port, but my car has 2 antennae.

It is easy to spot the 308CC / RCZ versions of the RD4 / RD45, as they don't have "MP3" printed above the CD slot.

Does anyone know if the RD4 and RD45 front panels are interchangeable? Then I could get a more common variant of the RD45 and just swap my front panel onto it.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: RD45 upgrade for Peugeot 308

Post by EDC5 »

xantia_v6 wrote: 09 Dec 2018, 02:01 Does anyone know if the RD4 and RD45 front panels are interchangeable? Then I could get a more common variant of the RD45 and just swap my front panel onto it.


I have always wondered this myself. What I do know is that the front panels themselves have their own firmware and potentially could not play nicely with a headunit of a different age.
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

I am now in communication with one of the Chinese vendors, he says that the plastic front panels are interchangeable from RD4 to RD45, and they do it all the time. I think that this explains a couple of things, firstly why there seem to be a preponderance of single tuner models available, even for fitments where the car would always have 2 antennas, and why they warn about cosmetic scratches on radios removed form new cars (the RD45 is new, but the front panel is recycled from an RD4).

This vendor says that he can supply a 2 antenna version on request.
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

I have taken the plunge and ordered an RD45 from China, it probably won't be here until after Christmas. The vendor has been very good answering questions.
User avatar
EDC5
(Donor 2020)
Posts: 1216
Joined: 01 Jul 2017, 21:48
Location: N. Wales
My Cars: Citroen C5 RHR AM6
x 120

Re: RD45 upgrade for Peugeot 308

Post by EDC5 »

That's great. Hope it works out.
jbbu
Posts: 18
Joined: 10 Apr 2018, 19:25
Location: Durham
My Cars: 2008 C5 (X7) Tourer VTR+ 2.0 HDi
x 2

Re: RD45 upgrade for Peugeot 308

Post by jbbu »

xantia_v6 wrote: 09 Dec 2018, 18:09This vendor says that he can supply a 2 antenna version on request.

Could you share which supplier this is? Hebei Weima or another from AliExpress?
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

jbbu wrote: 14 Dec 2018, 15:39
xantia_v6 wrote: 09 Dec 2018, 18:09This vendor says that he can supply a 2 antenna version on request.

Could you share which supplier this is? Hebei Weima or another from AliExpress?

Yes that is the vendor.

The item that I have ordered is https://www.aliexpress.com/item/Genuine ... 2746EKMoSc, which the photos show to have 2 antennae connector plus digital broadcast antenna (I don't know if that implies DAB support).
User avatar
Stickyfinger
(Donor 2016)
Posts: 10411
Joined: 28 Mar 2013, 21:05
Location: Somset my lovleee
My Cars: Xantia V6 ACTIVA 3ltr 24v Manual p1
Xm 2.1TD Ph2 Exclusive
AX, little Daffodil
SAXO White Mk1. Sally
x 1280
Contact:

Re: RD45 upgrade for Peugeot 308

Post by Stickyfinger »

Watching this with interest
Alasdair
Activa, the Moose Rider
3x C5x7 Steering racks and counting
jbbu
Posts: 18
Joined: 10 Apr 2018, 19:25
Location: Durham
My Cars: 2008 C5 (X7) Tourer VTR+ 2.0 HDi
x 2

Re: RD45 upgrade for Peugeot 308

Post by jbbu »

xantia_v6 wrote: 08 Dec 2018, 17:25 Having done a bit more searching, I have realised that the 308CC and RCZ have a piano-black (glossy) finish on the radio facia, so the replacement RD45 is a bit rare.

Can anyone tell me (or point to a picture of) the location of the hands-free microphone when factory-fitted to a 308CC?

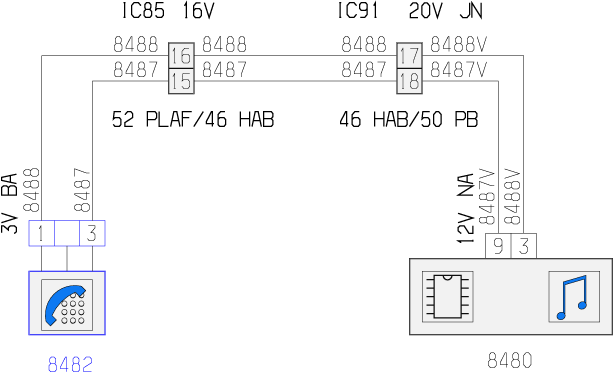

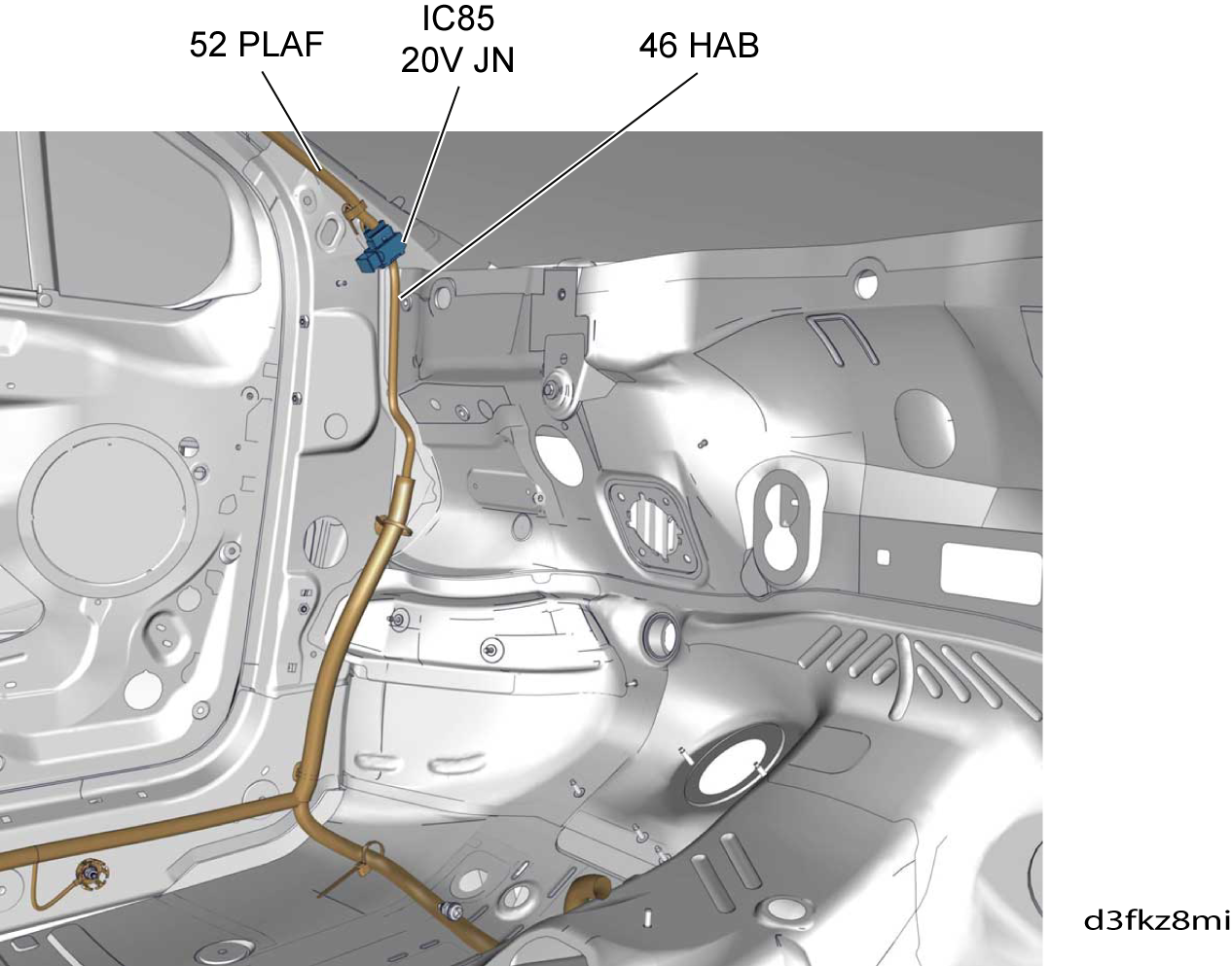

This is the location of component 8482 : radio telephone microphone and its interconnects on the way to the back of the stereo according to SEDRE. Having said that, not sure how much the images look like a CC!
svgLoader (5).png
svgLoader (3).png
8482 : radio telephone microphone

IC85 : passenger compartment harness courtesy light harness interconnection

IC91 : fascia harness interconnection with passenger compartment harness
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

Thanks for that. I had more or less figured it out already. I have found the microphone location. If factory fitted, the microphone wiring is part of the main harness up to the roof console, but I have ordered a microphone with cable (apparently from some other PSA application) https://www.aliexpress.com/store/produc ... 3aafEJZAcJ so will run that alongside the main harness. I have found the instructions for removing the trim on a CC, which are of course a bit different to anything else.

I have not completely decided where to mount the USB connector. As I will probably leave a USB stick mounted in it, it needs to be in a locked compartment (for parking the car with the roof down). I will probably have a flying lead in the glovebox.
User avatar
xantia_v6
Forum Admin Team
Posts: 9052
Joined: 09 Nov 2005, 22:03
Location: France or NewZealand
Lexia Available: Yes
My Cars: -
1997 Citroen Xantia V6 (France)
1999 Citroen XM V6 ES9 (France)
2011 Peugeot 308 CC THP 155 (NZ)
1975 Jaguar XJ-S pre-HE (NZ)
x 825

Re: RD45 upgrade for Peugeot 308

Post by xantia_v6 »

The RD45 arrived today.
I connected it and configured the radio and screen with Diagbox, and a brief test indicates that most functions are working.
I spent some time swapping the 308 front panel from the RD4 to the RD45. Electrically it is compatible, but as my RD4 was manufactured by VDO and the RD45 by Continental, there are several differences in the way the panel fits onto the body of the head unit, and some plastic clips and metal tangs needed to be removed or trimmed before the panel would sit in the correct place. A nice touch is that the mute button from the RD45 control panel fits into the RD4 panel and is a good aesthetic match.

I will fit the microphone and USB socket tomorrow and test everything more thoroughly.
