Well, I think perhaps the siemens double doser system is more sophisticated than the single Delphi one.
moizeau wrote: ↑02 Nov 2018, 18:43
So in effect, you could remove the butterfly from the body (or in my case both), leave everything else in place so the car thinks it's doing as it's told, happy ever after...

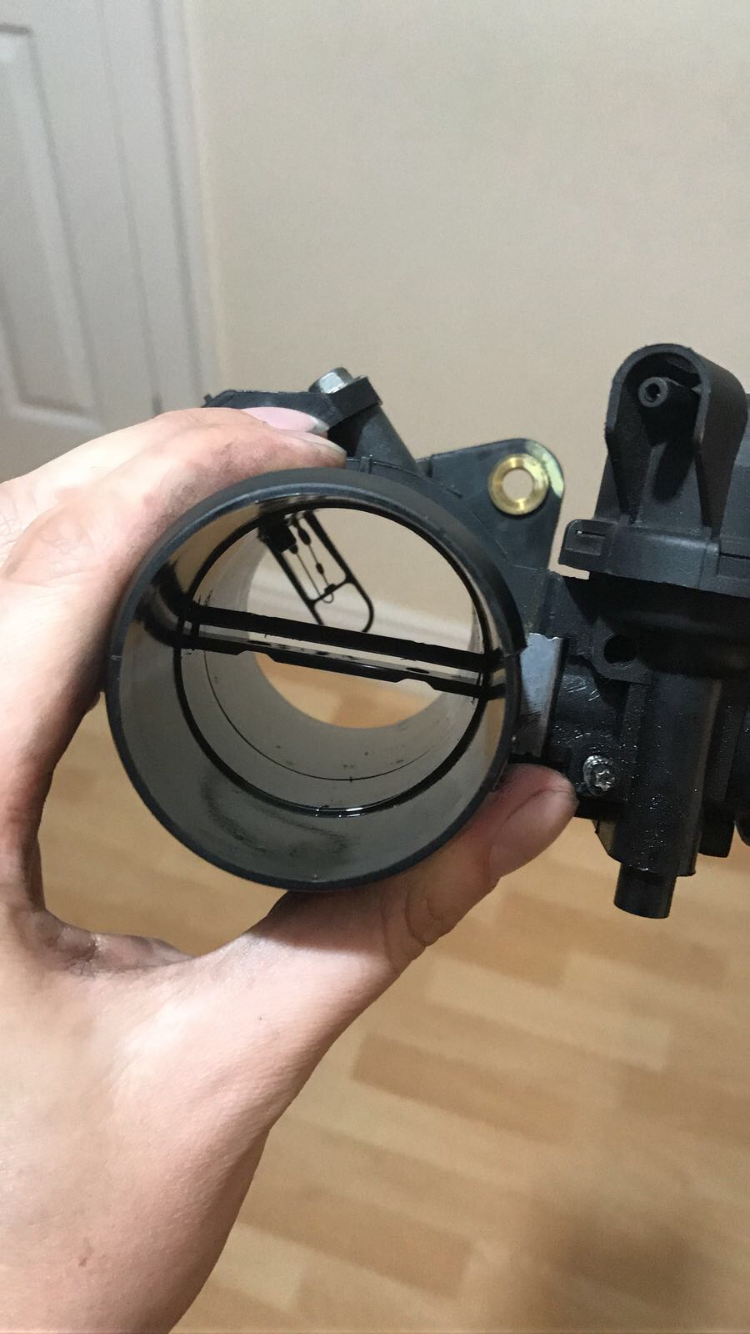

Something like this:
I tried that as at the time I suspected the flap was causing a hesitation that I sometimes get.
It behaved exactly the same with or without the flap fitted. The only difference is the rather rough way the engine shuts down; which the doser also assists with.
My Cars: 91 BX TZD Estate. Dead but loved 407 HDI 136 auto C4 2l petrol coupé 2010 Dispatch III HDI 90 AND a 1980 Z1000ST AND a 1983 GPz1100 inj AND a 1995 Zephyr 1100 AND a 1980 Z650 (my moped)
Well the rad will be here Monday, so once fitted I can confirm the butterflies are working, then go from there. Is your's still missing or did it get refitted when no change was noticed? The other option to removing it is to plug the vacuum pipe, on your set up there is only one vacuum solenoid on the compressor I guess, whereas I have two. I'll also check to see if mines closes when the engine is switched off.
Thanks for the info.
Pete
Notice the BX is still top the list but sadly gone
My Cars: 91 BX TZD Estate. Dead but loved 407 HDI 136 auto C4 2l petrol coupé 2010 Dispatch III HDI 90 AND a 1980 Z1000ST AND a 1983 GPz1100 inj AND a 1995 Zephyr 1100 AND a 1980 Z650 (my moped)
Rad fitted, front back on the car, plugged in and got 5 codes that all relate to the small drive without the pipe on the doser. Checked the 2 butterflies in the actuator test, fine. Test drive was fine, replugged and got 3 codes, first, couldn't connect to the bsi and 2 remote ecu messages. I haven't cleared those. I remember seeing those before and they vanished on their own. Off out this afternoon so I'll plug in again later. Definitely not a regen issue, as last regen was the previous journey before the damage. I'm beginning to think that I hadn't tightened the jube clip properly and over time it had worked it's way off. If it was tightened fully then I wouldn't think it was possible for the clip to get over the flaring on the entrance to the doser. Will keep an eye on the position of the pipe over the next few journeys as well.
Thanks again for all the info. above.
Pete
