Unusual/Interesting Engines

This is the place for posts that don't fit into any other category.

Moderator: RichardW

User avatar
CitroJim
A very naughty boy
Posts: 42645
Joined: 30 Apr 2005, 23:33
x 1361

Re: Unusual/Interesting Engines

Post by CitroJim »

Hell Razor5543 wrote:
14 Oct 2018, 18:05
Jim, if anybody tries to use a Ban Hammer on you I shall ask Michael Brookes (from Frontier Developments) if I can borrow his Ban Axe to use on THEM!



:rofl2:


And K on the QSO Peter :) As soon as I'm QRV again we'll give it a go :D 73 es Gud DX OM!

Right, no more off-topic from me - I'm going to be a reformed character from now on... :^o

Online
Hell Razor5543
NOT Alistair or Simon
Posts: 10849
Joined: 01 Apr 2012, 09:47
x 1104

Re: Unusual/Interesting Engines

Post by Hell Razor5543 »

CitroJim wrote:
14 Oct 2018, 18:11
Right, no more off-topic from me - I'm going to be a reformed character from now on... :^o

Right then, WHO are you, and WHAT have you done with the REAL CitroJim?

User avatar
CitroJim
A very naughty boy
Posts: 42645
Joined: 30 Apr 2005, 23:33
x 1361

Re: Unusual/Interesting Engines

Post by CitroJim »

Hell Razor5543 wrote:
14 Oct 2018, 18:14
CitroJim wrote:
14 Oct 2018, 18:11
Right, no more off-topic from me - I'm going to be a reformed character from now on... :^o

Right then, WHO are you, and WHAT have you done with the REAL CitroJim?


Drat :twisted: Rumbled... Knew I shouldn't have said that :roll:

I'm holding him hostage... Not sure of the ransom demand yet but I'll think of one :wink:

Online
Hell Razor5543
NOT Alistair or Simon
Posts: 10849
Joined: 01 Apr 2012, 09:47
x 1104

Re: Unusual/Interesting Engines

Post by Hell Razor5543 »

Giant bike spares, lots of them!

User avatar
CitroJim
A very naughty boy
Posts: 42645
Joined: 30 Apr 2005, 23:33
x 1361

Re: Unusual/Interesting Engines

Post by CitroJim »

Hell Razor5543 wrote:
14 Oct 2018, 18:47
Giant bike spares, lots of them!


That'll do nicely sir :D

User avatar
Paul-R
Donor 2020
Posts: 4239
Joined: 07 May 2009, 16:24
x 464

Re: Unusual/Interesting Engines

Post by Paul-R »

NewcastleFalcon wrote:
14 Oct 2018, 17:45
Anyone fancy going back to steam powered road vehicles?
I certainly do. I saw this chap (but not this clip) earlier this year on local TV.


User avatar
Paul-R
Donor 2020
Posts: 4239
Joined: 07 May 2009, 16:24
x 464

Re: Unusual/Interesting Engines

Post by Paul-R »

Peter.N. wrote:
14 Oct 2018, 10:03
I have a mint brochure for the 'Iceberg' engine that I got from the Perkins stand at the motor show - some years ago.
I would dearly love to see that brochure. Failing that some scans?

User avatar
NewcastleFalcon
Posts: 13237
Joined: 25 Feb 2009, 11:40
x 1254

Re: Unusual/Interesting Engines

Post by NewcastleFalcon »

Paul-R wrote:
14 Oct 2018, 18:58
NewcastleFalcon wrote:
14 Oct 2018, 17:45
Anyone fancy going back to steam powered road vehicles?
I certainly do. I saw this chap (but not this clip) earlier this year on local TV.



Superb stuff Paul :!:

...and an example of what I like best about the FCF :) Start up a random thread, enjoy the contributions, and discover some gems along the way.

Regards Neil

Peter.N.
Donor 2020
Posts: 10178
Joined: 02 Apr 2005, 16:11
x 393

Re: Unusual/Interesting Engines

Post by Peter.N. »

There are another four pages if you want them.

Brochure nearly wasn't so mint, been in a bookcase in our 350 year old cottage and had got damp, doesn't look to bad though.
Attachments

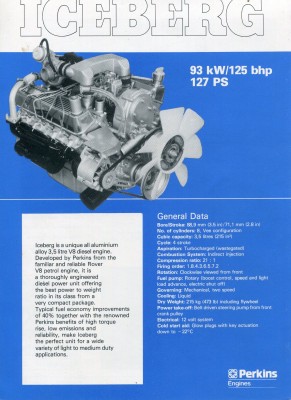

Perkins Iceberg spec 2.jpg
Perkins Iceberg spec.jpg
Perkins Iceberg.jpg

User avatar
CitroJim
A very naughty boy
Posts: 42645
Joined: 30 Apr 2005, 23:33
x 1361

Re: Unusual/Interesting Engines

Post by CitroJim »

That steam Land Rover is a gem... I noted he carries a large fire extinguisher with him....

I wonder if that's due to a painful previous experience?

User avatar
white exec
Moderating Team
Posts: 6301
Joined: 21 Dec 2015, 13:46
x 1062

Re: Unusual/Interesting Engines

Post by white exec »

IIRC, Rover abandoned work on the Iceberg V8 because of persistent problems with the cylinder heads, having to deal with almost 3x the compression ratio of the petrol version. Seems that a bit of work continued to be done on the QT, after it was officially discontinued, much the same as the Jet project.

User avatar
CitroJim
A very naughty boy
Posts: 42645
Joined: 30 Apr 2005, 23:33
x 1361

Re: Unusual/Interesting Engines

Post by CitroJim »

white exec wrote:
15 Oct 2018, 07:35
IIRC, Rover abandoned work on the Iceberg V8 because of persistent problems with the cylinder heads, having to deal with almost 3x the compression ratio of the petrol version.


In hindsight, trying to make a diesel version of a light, compact alloy V8 originally of Yank origin possibly wasn't the brightest of ideas...

Now, if only Perkins had designed one from scratch I'm sure it would have been a world-beater...

Is there any significance in the name 'Iceberg'? Seems an odd name for an engine...

lexi
Donor 2020
Posts: 2802
Joined: 17 Apr 2008, 17:51
x 119

Re: Unusual/Interesting Engines

Post by lexi »

Great to see you back Jim!

User avatar
white exec
Moderating Team
Posts: 6301
Joined: 21 Dec 2015, 13:46
x 1062

Re: Unusual/Interesting Engines

Post by white exec »

From Wikipedia Rover V8 engine :

Project Iceberg
In the late 1970s, British Leyland became aware of the increasing importance of diesel engined cars to the British, European and (especially) North American markets in the wake of the 1979 energy crisis. It was decided that a new series of diesel engines powerful, refined and economical enough for use in BL cars was needed. However, with development funding tight, it was necessary to use existing BL petrol engines as a base. This included a diesel version of the 3.5-litre V8, the development project for which was code-named 'Iceberg'.

BL collaborated with Perkins Engines of Peterborough to develop the engine. Both naturally aspirated and turbocharged versions were produced, both using a Stanadyne rotary mechanical fuel injection system. Power outputs of around 100 (naturally aspirated) and 150 (turbocharged) horsepower were achieved.

The Iceberg engine was slated for fitment in the Range Rover, Rover SD1 and the Jaguar XJ but the project encountered problems with failure of the alloy cylinder heads and internal cooling. They were limited by the need to use the same basic block casting as the petrol engine to allow the Iceberg engine to be produced on the same production line to reduce costs. Whilst these problems could have been overcome, the project ran into financial and logistical problems caused by the reorganisation of BL and specifically the splitting of Land Rover and Rover into separate divisions.

Land Rover took over production of the V8 engine in 1982, moving it from the main BL engine plant at Acock's Green into a new, much lower-capacity production line in the Solihull works, where it was built alongside the other Land Rover engines. This meant that there was no spare capacity to build diesel versions of the engine. Coupled to this, it was clear that the market for large diesel engined cars in North America had not developed as expected.

BL finally pulled out of the project in 1983. Perkins initially decided to pursue the project alone, and even produced advertising brochures for the engine as an industrial power unit, but BL withdrew all technical support and Project Iceberg was wrapped up in late 1983. BL's other collaboration with Perkins (producing a diesel version of the O-Series engine) produced the highly successful 'Prima' unit. BL (and its Rover Group successor) bought in 2.5-litre 4-cylinder turbodiesel units from VM Motori to use in the SD1 and Range Rover.


Iceberg?
Well, in the case of the V8, certainly not 8/9ths underwater, because the engine looks huge from the top, and quite tiny from below!
Perhaps, like all good diesels, it was inherently slow to warm up... Or, maybe a sly reference to BL/Rover management? :?

Peter.N.
Donor 2020
Posts: 10178
Joined: 02 Apr 2005, 16:11
x 393

Re: Unusual/Interesting Engines

Post by Peter.N. »

I have also found in the envelope some BX brochures if anyone is interested and a CX spec list. I only used to go to the show to see the CX 25 DTR turbo Safari once I got one I never went again. I have actually seen a prototype Iceberg engine in the flesh.

Peter
