ACTIVA lhm pipe diagram

Unread post by Stickyfinger »

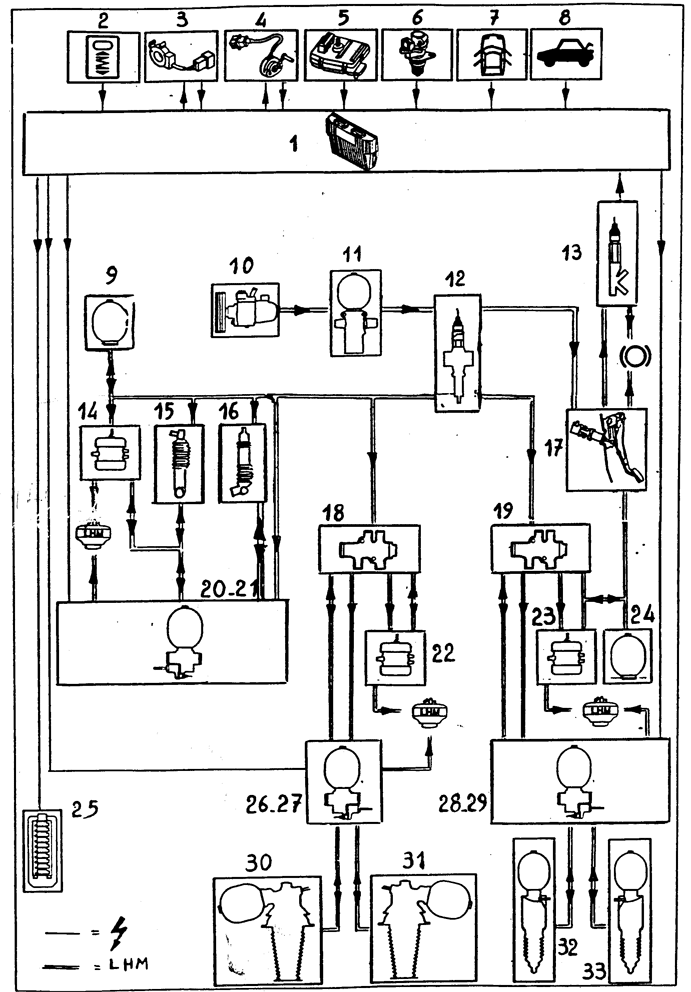

ACTIVA lhm pipe diagram...... Any comment Updates ? Anybody wish to use this to make a more detailed diagram ?
1: Suspension ECU
2: Suspension switch
3: Steering wheel sensor
4: Accelerator pedal sensor
5: Car body movement sensor
6: Speed sensor
7: Door switch
8: Boot switch
9: Accumulator SC / CAR
10: High pressure pump
11: Pressure regulator
12: Safety valve
13: Brake pressure switch
14: Regulator SC / CAR
15: Cylinder SC / CAR front
16: Cylinder SC / CAR rear
17: Brake valve
18: Valve SC / MAC front
19: Valve SC / MAC rear
20: Valve SC / CAR
21: SC / CAR - Valve solenoid valve
22: Front Height Controller
23: Rear Height Controller
24: Battery Charge SC / MAC
25: Diagnostic Outlet
26: Hydraulic Hardness Regulator Front
27: Hydraulic Hardness Regulator Solenoid Valve
28: Hydraulic Hardness Regulator Behind
29: Hydraulic Hardness Regulator Back Valve
30: Strut Leg Left Front
31: Strut Leg Right Front
32 : Left Strut Rear
Alasdair
Activa, the Moose Dodger
Top
User avatar
CitroJim
A very naughty boy
Posts: 54549
Joined: 30 Apr 2005, 23:33
x 8058

Re: ACTIVA lhm pipe diagram

Unread post by CitroJim »

That's a jolly useful diagram Alasdair :) Of great value to anyone needing to understand how it all fits together...

One showing physical locations and the physical pipe runs would be the icing on the cake...
Jim

A bit of a Citroen AX fan...
Top
User avatar
GiveMeABreak
(Donor 2016)
Posts: 42019
Joined: 15 Sep 2015, 19:38
x 6955

Re: ACTIVA lhm pipe diagram

Unread post by GiveMeABreak »

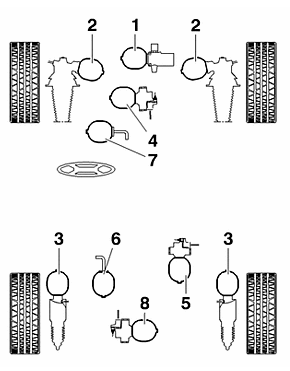

Not sure if this helps any further (but does add the wheels)!
(1) Main pressure accumulator.
(2) Suspension sphere (front).
(3) Suspension sphere (rear).
(4) Hydractive suspension regulator accumulator (front).
(5) Hydractive suspension regulator accumulator (rear).
(6) SC/MAC storage battery.
(7) SC.CAR accumulator.
(8) SC.CAR regulator accumulator.
Activa Diag1.PNG
Please note, I'm no longer active on the Forum, so won't respond to messages.

Marc
Top
User avatar
CitroJim
A very naughty boy
Posts: 54549
Joined: 30 Apr 2005, 23:33
x 8058

Re: ACTIVA lhm pipe diagram

Unread post by CitroJim »

Yes, it does Mark :D
Jim

A bit of a Citroen AX fan...
Top
User avatar
Stickyfinger
(Donor 2016)
Posts: 11782
Joined: 28 Mar 2013, 21:05
x 1968

Re: ACTIVA lhm pipe diagram

Unread post by Stickyfinger »

I feel a Photoshop session coming on ...............

like these we did for our Tiger book...(Initial Tiger - Normal and Submerged Air Flow) http://www.theresearchsquad.com/index.php/animations/
Alasdair
Activa, the Moose Dodger
Top
User avatar
CitroJim
A very naughty boy
Posts: 54549
Joined: 30 Apr 2005, 23:33
x 8058

Re: ACTIVA lhm pipe diagram

Unread post by CitroJim »

Stickyfinger wrote: 19 Sep 2017, 09:45 I feel a Photoshop session coming on ...............

like these we did for our Tiger book...(Initial Tiger - Normal and Submerged Air Flow) http://www.theresearchsquad.com/index.php/animations/



Oh yes, definitely :) That would be wonderful Alasdair ;)
