Xantia plumbing

Post by KennyW » 27 Apr 2014, 17:58

Hi All,

Can anyone tell me if pipe no 9 from front and rear braking supply (1st diagram) goes over or around diesel tank on my old gal as I will have to probably have to replace same when I trying to fix my problem with my feed pip into anti sink sphere.

see other thread below

viewtopic.php?f=3&t=48200

Kenny

0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

User avatar
VertVega
Posts: 1177
Joined: 01 Nov 2008, 20:39
Location: Province nordique de l'Union européenne
My Cars:

Re: Xantia plumbing

Post by VertVega » 27 Apr 2014, 19:13

IIRC rear hydraulic pipes and rear abs wires are together and goes under the fuel tank but rather close to the left side so that the tank can be removed/dropped without breaking the pipes :) The pipe/wire channel (plastic, rectangular profile) ends somewhere right after the fuel tank next to the rear left wheel and pipes are visible there. The horizontal line (front-->rear) makes a 90 degrees turn and goes up vertically to top of the rear cross member (correct term?) and another 90 deg turn over the cross member.
0x
C5 II 2.0i 16V - 2005 - Estate - 103KW - EW10A - Petrol - Manual

Online
Hell Razor5543
NOT Alistair or Simon
Posts: 7351
Joined: 01 Apr 2012, 09:47
Location: Reading
My Cars: C5 Mk1 VTR estate, Icelandic Grey (I think she is called "Bluebird")
x 310

Re: Xantia plumbing

Post by Hell Razor5543 » 27 Apr 2014, 19:27

That looks like the pipe that Northern_Mike had problems with on his V6. As VertVega says, It does run up and around the cross member, but not over the fuel tank.
0x
James
ex BX 1.9
ex Xantia 2.0HDi SX
ex Xantia 2.0HDi LX

C5 VTR HDi estate, 76518762
Out amongst the stars, looking for a world of my own!

User avatar
NewcastleFalcon
Posts: 4809
Joined: 25 Feb 2009, 11:40
Location:
My Cars:
x 158

Re: Xantia plumbing

Post by NewcastleFalcon » 27 Apr 2014, 22:22

Kenny

I replaced my pipe number 9 with the full story here-bit of a slow start but stick with it!

All you ever wanted to know about pipe no 9 but were afraid to ask

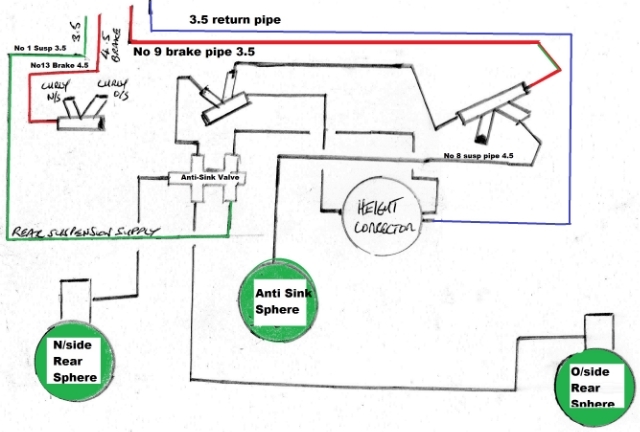

It includes this diagram of the rear end plumbing of my 1.9tdsx (1994). Brake pipe no 9 runs across the top of the rear subframe to a K connector at the offside. I joined mine at a straight bit at the nearside rear.


kind regards Neil
0x
Current favourite playlist Pickled Egg Jukebox-Monopoly Tracks

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 29 Apr 2014, 11:07

Thanks for the replies Guys,

Neil,
I remember reading your post with interest but couldn't recall the routing for pipe No 9.

Suggestion for our admin team: How easy would it be to put together some the threads re Xantia plumbing in a sticky

Kenny
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

User avatar
myglaren
Forum Admin Team
Posts: 13714
Joined: 02 Mar 2008, 14:30
Location: Washington
My Cars: 2003 C5 2.0 HDi 110 SX 220,400
x 209

Re: Xantia plumbing

Post by myglaren » 29 Apr 2014, 17:17

I'll sticky this and feel free to expand on it.
0x
________________________________
Steve

Jackie Evancho

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 01 May 2014, 12:01

Another useful link re HP pump seal rebuild

viewtopic.php?f=3&t=48274
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 01 May 2014, 12:03

More plumbing Non Hydractive supply pipe routing

viewtopic.php?f=3&t=47780&p=403844#p403844
Last edited by KennyW on 01 May 2014, 12:10, edited 1 time in total.
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 01 May 2014, 12:08

0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 03 May 2014, 10:38

Another plumbing link Front to rear pipe no

viewtopic.php?f=3&t=42435
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 03 May 2014, 10:43

Last edited by KennyW on 03 May 2014, 10:47, edited 1 time in total.
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 03 May 2014, 10:45

Another link RE brake pipes at rear and feed line from front

viewtopic.php?f=3&t=39936&p=320802#p320802
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 03 May 2014, 10:51

Hi All,

If anybody has any threads re the 'plumbing' please add them here hopefully it will be a quick reference for everyone.
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 08 May 2014, 20:47

Another link rear LHM leak

viewtopic.php?f=3&t=43884
0x
C5 x7 2.0 HDi 160 hp Estate exclusive, the newbie
Xantia 2.0 Hdi 90hp 1999 only 189,000 and rising!!!!!!! Moved on to a new home
C3 1.4 petrol (SWMBO)
Xantia TD 1.9 Mk 2 Estate LX 1998 model over 210,000 miles now and still rising!!!!!!!!!!!!! now deceased 17/12/2010.

Online
User avatar
KennyW
Donor 2016
Posts: 1568
Joined: 17 Jan 2006, 22:22
Location: NEWTONGRANGE,MIDLOTHIAN
My Cars:
x 11

Re: Xantia plumbing

Post by KennyW » 08 May 2014, 20:56

Another link Late MK 2 /C5 suspension

viewtopic.php?f=3&t=48367
