Toolbag Tales-Homemade and improvised tools
..or alternatively what could I make out of this....
Its a piece of Key Steel about a foot long 8mm x 8mm and by hook or by crook its going to turn into the perfect timing belt tensioner adjuster for a 2.0hdi 8 valve engine, as fitted to my Citroen Xsara Picasso.
Suggestions welcome...with the restricted space, and air conditioning pipes between the tensioner and the bodywork its going to as a whole have to adopt an "L-shape" although being key steel its going to be hard as nails and maybe not possible to achieve the sharp bend required.
I have used a number of improvised tools over the years some of which I have posted in the past but it may be nice to have a thread to fill up with "tales of the toolbag"
Regards Neil
Its a piece of Key Steel about a foot long 8mm x 8mm and by hook or by crook its going to turn into the perfect timing belt tensioner adjuster for a 2.0hdi 8 valve engine, as fitted to my Citroen Xsara Picasso.
Suggestions welcome...with the restricted space, and air conditioning pipes between the tensioner and the bodywork its going to as a whole have to adopt an "L-shape" although being key steel its going to be hard as nails and maybe not possible to achieve the sharp bend required.
I have used a number of improvised tools over the years some of which I have posted in the past but it may be nice to have a thread to fill up with "tales of the toolbag"
Regards Neil
Last edited by NewcastleFalcon on 28 Aug 2019, 09:15, edited 2 times in total.
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
Re: Toolbag Tales-Homemade and improvised tools
Would you believe the C5 BOL actually suggests using the square bar from door handles to do the same job?
hirsty
hirsty
98 Xantia Mk2 2.0 16v Auto Exclusive 160k + Now gone to Citroen Heaven
2004 C5 Mk 1 2.0 8V VTR Estate - current. Now with leather.
2004 C5 Mk 1 2.0 8V VTR Estate - current. Now with leather.
- Timmo
- (Donor 2022)
- Posts: 1346
- Joined: 11 Jul 2011, 15:41
- Location: Bottom Left!
- My Cars: 58 partner teepee outdoor hdi.
58 C2 Code in black! Fun! - x 168
- Contact:
Re: Toolbag Tales-Homemade and improvised tools
If you have a blow torch I'd be tempted to work out the length needed, pop it in a vice and heat it up then bend it to shape?? I'm guessing it would need to be allen key shape?
After All, I am the Cornish one!
'58 C2 Code
'58 partner teepee outdoor
'58 C2 Code
'58 partner teepee outdoor
- NewcastleFalcon
- Posts: 24570
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6869
Re: Toolbag Tales-Homemade and improvised tools
You wouldn't believe my lack of "Forging" equipment. I have a normal gas cooker with four gas rings, and a "shoemakers last", plenty hammers though! I may be wrong but I imagine my "key steel" may need more heat than my gas rings can supply! I did imagine making an Allen key shape when I got it, but may have to resort to a simple cut it to the right length approach in a short stumpy bit and clag the largest mole grips I can get into the space onto the square profile and use that to set the tension.Timmo wrote:If you have a blow torch I'd be tempted to work out the length needed, pop it in a vice and heat it up then bend it to shape?? I'm guessing it would need to be allen key shape?
I will probably give the forging a go though for pure entertainment value!
Yes the BOL does come up with the odd useful "tool-tip".hirsty wrote:Would you believe the C5 BOL actually suggests using the square bar from door handles to do the same job? hirsty
Regards Neil
Only One AA Box left
687 Trinity, Jersey
687 Trinity, Jersey
- Timmo
- (Donor 2022)
- Posts: 1346
- Joined: 11 Jul 2011, 15:41
- Location: Bottom Left!
- My Cars: 58 partner teepee outdoor hdi.
58 C2 Code in black! Fun! - x 168
- Contact:
Re: Toolbag Tales-Homemade and improvised tools
I picked up a blow torch from the local wholesalers as I really wanted to try a bit of brazing as an alternative to welding when mangineering in the shed!
After All, I am the Cornish one!
'58 C2 Code
'58 partner teepee outdoor
'58 C2 Code
'58 partner teepee outdoor
- NewcastleFalcon
- Posts: 24570
- Joined: 25 Feb 2009, 10:40
- Location:
- My Cars:
- x 6869
Re: Toolbag Tales-Homemade and improvised tools
Well I'm quite pleased with myself, stage 1 of the 2.0HDi Timing Belt Tensioner tool has been completed.

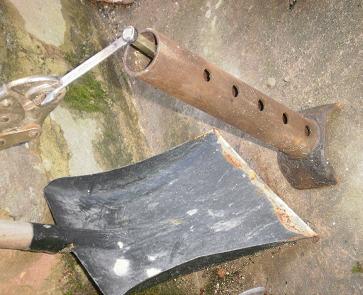

Here is the evidence....
