Citroen, DS Automobiles and Peugeot Official Part Number Requests

[Tom309]

I've also got a C1326 ABS fault (rear left wheel speed sensor fault) on a 2005 307SW. So would you please let me know the sensor part number.
VIN VF3**************[VIN obfuscated, can be read by forum staff]
Thanks, Tom

[GiveMeABreak]

I've also got a C1326 ABS fault (rear left wheel speed sensor fault) on a 2005 307SW. So would you please let me know the sensor part number.
VIN VF3**************[VIN obfuscated, can be read by forum staff]
Thanks, Tom

Here you are Tom:

Item (2) Wheel ABS Sensor Rear, part: 4545C4, £79.97, inc. VAT from Peugeot.

[Tom309]

Hi Marc,
Sorry just spotted this. Thanks for the information but I'm a little confused. The diagram above seems to show a pair of sensors for 4545C4, but if I look on Ebay 4545C4 only has one sensor per part. Also looking at Youtube for the replacement, they show a short cable from the sensor to a connector. I can't check the actual car as it is away until the weekend, when I hoped to do the repair.
I'm concerned as I have been told by a couple of suppliers that I need 4545.89 for this 307 based on the reg. So just before I change the order I wanted to double check that it is the correct diagram /part number for the car, as I think that a part number based on the VIN would be more accurate than on the reg.
Thanks again

[GiveMeABreak]

Your mechanic is wrong and that's why we go by VIN number not registration, and why we use live, official parts data direct from Peugeot and not third party / aftermarket suppliers' databases that are invariably wrong.

As for the diagram, this shows both sensors, but I only provided the part for the rear one as requested and to avoid confusion, which is 4545C4.

The rear sensor, item (2) is for either rear wheel. The sensor is at one end and the other end goes into the wiring loom.

Part (454589) is only for vehicles produced from build date 1076777. Your RPO is 10453 and therefore 4545C4 is the correct part number.

[Tom309]

Yes, I was worried when they only wanted the reg. Thanks

[eurofjr]

Hi Marc,

Doing as a separate request.

VIN VF7**************[VIN obfuscated, can be read by forum staff].
Part# request: Thermostat

Jim.

[Steve Walsh]

Hi
Could one of you kind folk give me the part number and Citroen price for the power steering oil cooler that sits in front of the radiator. Sort of an S shaped pipe, low pressure side of system.

C5X7 2013. VF7**************[VIN obfuscated, can be read by forum staff]

Thanx

[wheeler]

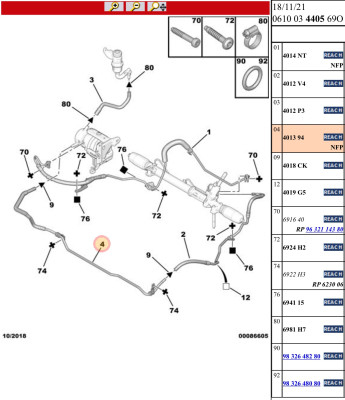

If its number 4 then its 401394 & it was £88.81 but unfortunately its no longer available from Citroen.

[Steve Walsh]

If its number 4 then its 401394 & it was £88.81 but unfortunately its no longer available from Citroen.

Looks like it is a repair then, It is only the tinyest damp patch at the moment. But will probably gush now I have disturbed it


Thanks for the info

Steve

[GiveMeABreak]

Hi Marc,

Doing as a separate request.

VIN VF7**************[VIN obfuscated, can be read by forum staff].
Part# request: Thermostat

Jim.

There's no thermostat listed, so it's probably integrated into the coolant outlet tank, but you'll need confirmation.

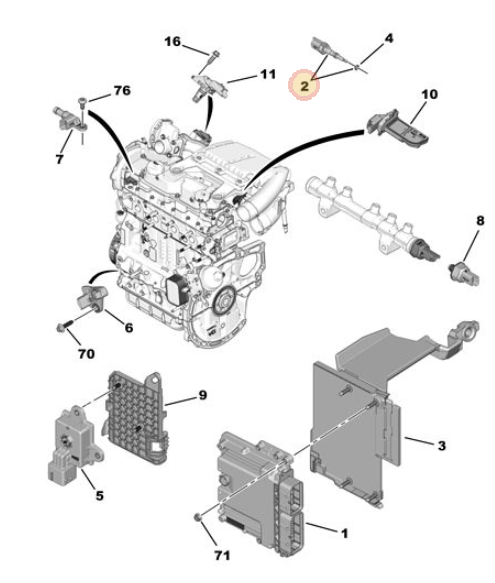

The engine Temperature sensor is shown below in case you mean this:

Item (2) Engine Temperature Sensor, Part: 9802935980, £59.86

Item (1), Coolant Outlet Tank, part: 9803549480, £162.80

[jamescarruthers]

Sorry, I don’t have the VIN to hand for my sister’s 2001 2.2 C5 but I think the sensor to detect the presence of the fuel cap has broken.

If possible, can one of you please tell me the part number and if it is still available?


Magnets still present in cap… I think! Warning on screen to unblock diesel filter.

[KennyW]

Marc,

Looking for the part number for front nearside headlight unit C5 x7 VF7**************[VIN obfuscated, can be read by forum staff]

Kenny

[wheeler]

Marc,

Looking for the part number for front nearside headlight unit C5 x7 VF7**************[VIN obfuscated, can be read by forum staff]

Kenny

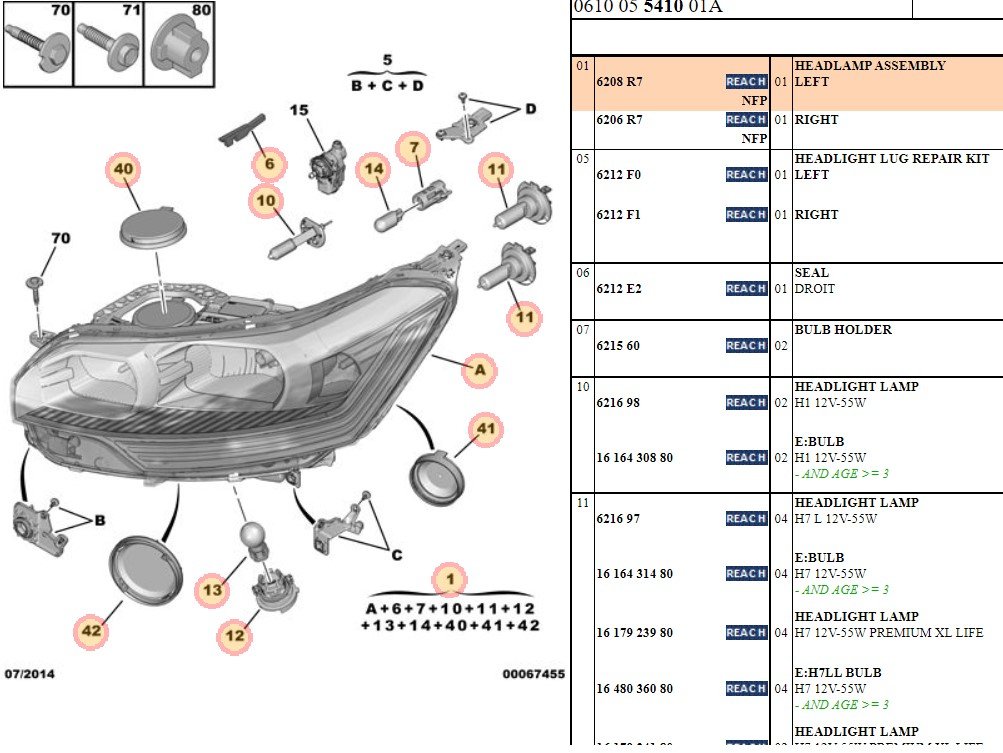

Part No 6208R7 but showing as no longer available. It was £506.20

[KennyW]

Thanks wheeler, is there an alternative part number . All searches I do return 6208H9 which has headlamp motor otherwise same spec as mine.

Some sellers have this without motor, will this fit ?

Kenny

[Huskyxantia]

Hi, needing part number for turbo complete unit also just the cartridge , then maybe i can decided which root to take.

Peugeot 206cc 2.6hdi 06 plate. Can add vin if needed

Many thanks.
