Citroen, DS Automobiles and Peugeot Official Part Number Requests

[GiveMeABreak]

Hi Dan

Item (9) is Part 503563, £27.46

As for the suspension part numbers you queried, these are the latest part numbers. PSA change specifications or revise parts according to problems encountered / other issues or for general improvements.

We therefore only provide the latest official parts data direct from PSA (Stellantis) which most aftermarket suppliers are probably unaware of and are still supplying their own versions that may or may not have the latest improvements or may not be equivalent to the latest parts.

[DanCD]

Hi Marc,

Can I please ask for the parts number for the radiator fan and associated fan control module for my car please? Let me know if you need my VIN

Cheers,
Dan

[GiveMeABreak]

Hi Dan

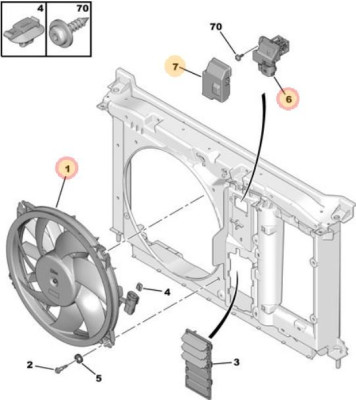

Item (1) Fan, Part: 9828719880, £178.56
Item (6) Fan Electric Control Assembly (note this is the replacement control module assembly, so also requires a different assembly cover (item (7)), which is essential as the old one will not fit.
Item (6) New Control Module Part: 9829220580, £84.30
Cover for revised assembly Item (7), Part: 1308CX, £4.76

[Steve007]

Hi Marc
If its possible for the,code/part number for new clutch.
VF3**************[VIN obfuscated, can be read by forum staff]
Thanks in advance

[GiveMeABreak]

@Steve007: PM Sent

[GiveMeABreak]

Hi Marc
If its possible for the,code/part number for new clutch.
VF3**************[VIN obfuscated, can be read by forum staff]
Thanks in advance

Hi Steve:

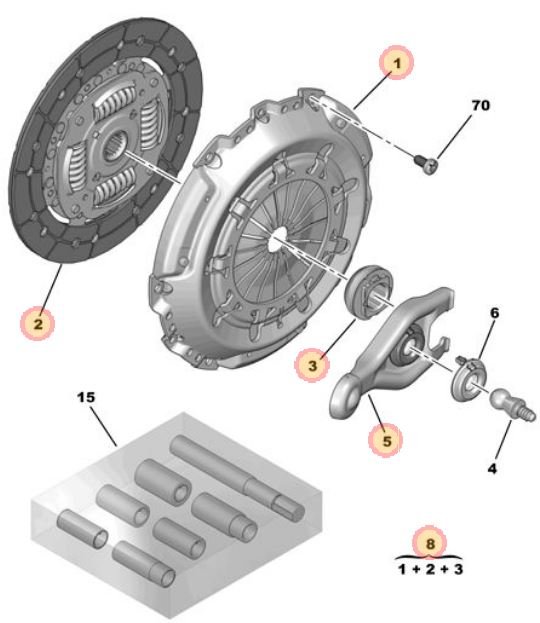

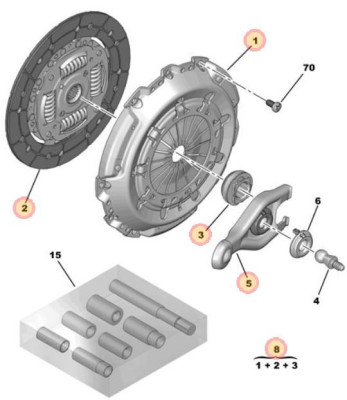

I've listed individual parts and also the complete clutch kit:

(1) Clutch, Part: 2004AV, £247.88
(2) Clutch Plate, Part: 2055HT, £225.41
(3) Clutch Release Bearing, Part: 1611266780, £39.17

(5) Clutch Fork, Part: 211766, £52.63

Clutch Kit
Item (8) (which includes Items 1, 2 & 3) above:

OEM Original New, Part: 1611269280, £387.00
Cheaper Kit, Part (Eurorepar): 1636264380, £163.50

Standard Exchange Kit, Part: 2051W4, £201.00

[Steve007]

Ok thanks Marc

[DanCD]

Hi Dan



Item (1) Fan, Part: 9828719880, £178.56
Item (6) Fan Electric Control Assembly (note this is the replacement control module assembly, so also requires a different assembly cover (item (7)), which is essential as the old one will not fit.
Item (6) New Control Module Part: 9829220580, £84.30
Cover for revised assembly Item (7), Part: 1308CX, £4.76

Cheers Marc!

[aerodynamica]

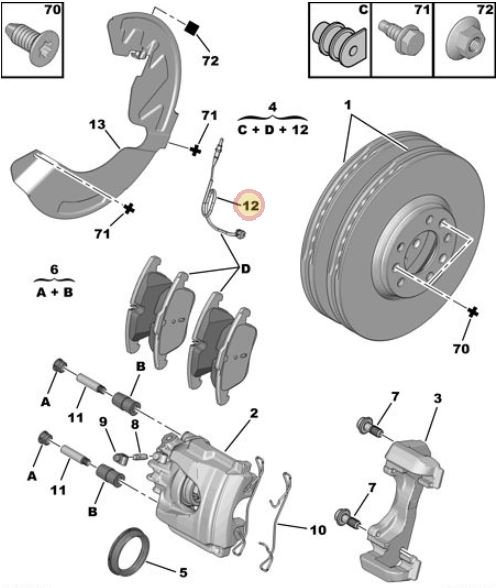

I need one thing right away and that's the wiring harness+plug for the LH brake pad wear warning. The plug frayed and broke off in the past. I'm just wondering if someone (Marc?) Could find the diagram / part number/ is it still available from the database.

[GiveMeABreak]

Here you go Graeme:

Item (12) Part: 443303, £34.68

This is for a single harness and is the same for both sides.

[aerodynamica]

Here you go Graeme:



Item (12) Part: 443303, £34.68

This is for a single harness and is the same for both sides.

Hiya Marc, thanks for that although I don't see the harness I'm referring to. Item 12 in the drawing is the little pair of wires you get new with new pads. The part I'm looking for is the plug that these two plug into. It's an elongated plastic plug with two circular sockets for each of these plugs (item 12) and it has an earth wire that emerges right out the back of the plug with a ring connector about 70mm away (fixes on to the hub upright) the harness then runs alongside the likes of the ABS cable up to the inside of the wheelarch. I don't know where it goes on the C5 but on a Xantia it has a plug.

[GiveMeABreak]

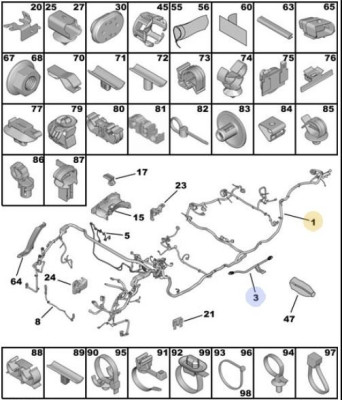

Bad news then Graeme, as if it's missing, whoever has cut it off has cut the main wiring harness! As far as I can see the connectors that the brake pad wear lead plug into is part of the main harness (1):

[cs101]

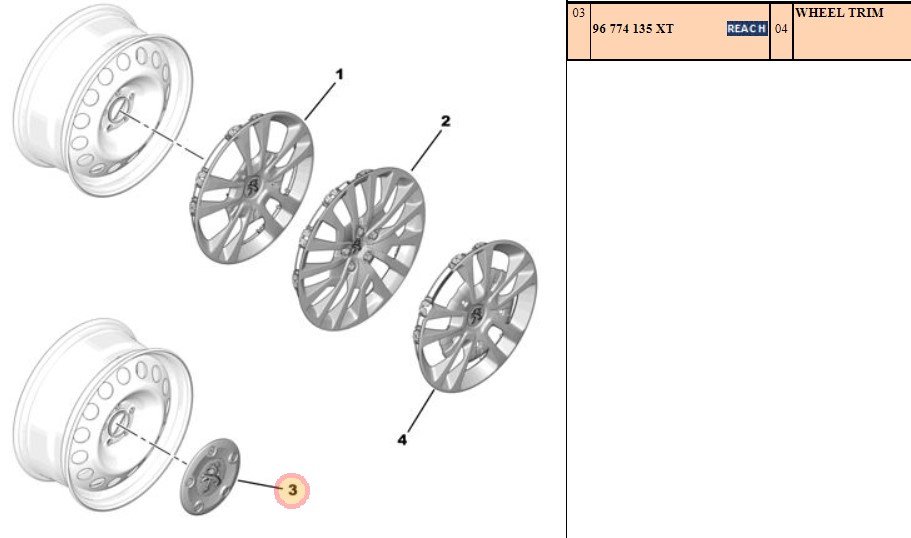

Hi, Marc! Please can you give me the part number for the Hub cap centre wheel cover trim. Vin is VF3**************[VIN obfuscated, can be read by forum staff]. This is plastic black trim with Peugeot emblem. Thanks

[wheeler]

96774135XT £17.11 inc VAT

[cs101]

Thanks
