Citroen, DS Automobiles and Peugeot Official Part Number Requests

[Rhothgar]

No, that's not right. 13510 is the unique build date for your vehicle - I can't advise of the exact change over of facelifted models but I believe the MK 1 3008 had a facelift in 2014 sometime. The MK II was released at some point in 2016 and the MK III sometime in 2024.

0952 isn't a valid fault code, but if you do find it, post it up on the technical Forum please, not in the parts section. When I see that, I'll see if I have a diagram or not and post it there.

It’s on the audio CAN so not sure if there should be a prefix to the 0952.

This is a facelift model as far as I am aware not the very early model which did surprise me seeing as it was built in 2013. It has the little dinks up on the headlights at the side.

[mliapis2003]

Hi, I recently had my engine replaced, but I am not sure if it was really replaced!. The mechanic said so, but I don't feel any difference. Since I don't have access to the original engine S/N can you provide me the info? My VIN number is: VF7**************[VIN obfuscated, can be read by forum staff]. Thanks. (Sorry for my poor English, I live in Greece).

[GiveMeABreak]

Sure, give me a second and I'll get your build sheet for you.

Vehicle Characteristics
Vehicle family	XSARA PICASSO
AS/RP N°	11060 FV 2 1029
Warranty Start Date	29/11/2007
Engine Serial Number	10 FX6P 3185873
OPB	P00A
BER	e2*98/14*0153*15
General Information
PRODUCT TYPE	PASSENGER CAR
COMMERCIAL MARQUE/COMPONENT TYPE	CITROEN
VEHICLE FAMILY	XSARA PICASSO
SILHOUETTE	FAMILY SALOON
TRIM LEVEL	LOW / HIGH
ENGINE	TU5JP4 INJECTION
TRANSMISSION	BVM5
PAINT TYPE	METALLIC PAINTWORK
BODY COLOUR	EZR - PAINT ALUMINIUM GREY
INTERIOR TRIM TYPE	REPS + SPOTTED "SV"
UPHOLSTERY COLOUR	"FZ"
GEARBOX (CHARACTERISTICS)	BE4-5V MANUAL GEARBOX
DEFINITION TO FOLLOW	RANGE ACTIVITY
ENGINE (TYPE)	TU
BADGE	WITHOUT BADGE
Vehicle Characteristics
TRIM LEVEL	LOW / HIGH
PAINT TYPE	METALLIC PAINTWORK
BODY COLOUR	EZR - PAINT ALUMINIUM GREY
INTERIOR TRIM TYPE	REPS + SPOTTED "SV"
UPHOLSTERY COLOUR	"FZ"
GEARBOX (CHARACTERISTICS)	BE4-5V MANUAL GEARBOX
STEERING	POWER STEERING
Fuel Supply-Engine
ENGINE	TU5JP4 INJECTION
DIESEL FILTER WATER DETECTOR	WITHOUT DIESEL FILTER WATER DETECTOR
CYLINDER BLOCK (MATERIAL)	CRANKCASE CAST IRON
FUEL	UNLEADED PETROL 95 QUALITY A/B/E/E+
EMISSIONS STANDARD (ENGINE)	EURO 4 ENGINE EMISSION CONTROL
ENGINE (TYPE)	TU
OIL COOLER	WITHOUT OIL-WATER DISTR CHAMB
COOLING MOTOR	RADIATOR 27MBA - 21 DM2 - PAS 1.1
CRANKCASE GAS CIRCUIT HEATING	W/O HEATER CASING GAS CIRCUIT
POWER VARIATION (ENGINE)	STANDARD POWER
EOBD SELF-DIAGNOSIS SYSTEM	"EOBD" AUTO-DIAGNOSTIC WITHOUT ACCELEROMETER
DEVICE (ANTIPOLLUTION)	WITHOUT ANTI-POLLUTION DEVICE
VEHICLE TECHNICAL DEPOLLUTION	L5 VEHICLE TECHNICAL DEPOLLUTION
PARTICLE FILTER	WITHOUT PARTICLE FILTER
FAN	140W AERO 2 SPEED FAN
INJECTION ASSOCIATED VARIANT	MOUNTING MAGNETI MARELLI
THROTTLE HOUSING (ENGINE INLET AIR CIRCUIT)	MOTORISED THROTTLE BODY (ENG AIR INTAKE)
Gearbox Transmission
TRANSMISSION	BVM5
GEARBOX (CHARACTERISTICS)	BE4-5V MANUAL GEARBOX
FINAL DRIVE RATIO	REAR AXLE HYPOID GEARSET 17 X 71
WHEEL STYLE	15 INCH STEEL WHEEL
CLUTCH	HYDRAULIC CLUTCH
SEAL, WHEEL END	WHEEL-SIDE JOINT DIAM 17 5
SEAL, DIFFERENTIAL END	AXLE-SIDE JOINT JB2A
DIFFERENTIAL (GEARBOX)	DIFFERENTIAL 77
TYRE (SIZE, TYPE)	185/65 R15 88H NON REINFORCED TYRE
WHEEL (TYPE)	STEEL WHEELS
GEARBOX TYPE	GEARBOX BE4R
Suspension-Steering-Brakes
ABS	WITH ABS BRAKES
REAR ANTI-ROLL BAR	REAR ANTI-ROLL BAR DIAM 21
STEERING	POWER STEERING
FRONT ANTI-ROLL BAR	FRONT ANTI-ROLL BAR DIAM 21
BRAKE TYPE	VENTILATED FRONT DISCS/REAR DRUMS
SUSPENSION	NORMAL SUSPENSION
DYNAMIC STABILITY CONTROL SYSTEM	WITHOUT ELECTRONIC STABILITY PROGRAM
BRAKE ASSOCIATED VARIANT	BOSCH ABS 8 0
Body Fittings
TOWBAR	WITHOUT TOWBAR
WHEEL EMBELLISHER (STYLE)	15 INCH 16-SPOKE BAYONNE STYLE
ADDITIONAL SHIELD (UNDER ENGINE)	W/O ENGINE UNDERSHELDING
EXT. REARVIEW MIRROR COMP. FUNCTION	EXT MIRROR MANUAL-FOLD BACK
WINDSCREEN WIPER	FRONT WIPER BLADE W/O RAIN SENSOR
FRONT PANEL BLANK	WITHOUT FRONT BUMPER PLUG
LUGGAGE RACK	WITHOUT ROOF BARS
FRONT FOGLAMP	NO FRONT FOG LIGHTS
EXTERIOR ACCESSORIES	NEUTRAL EXT HANDLES+SIDE MOULDINGS+EXT MIRRORS
SUN ROOF	FIXED ROOF
BUMPER TRIM	DYED BUMPER STRIP
GLASS (APPEARANCE)	TINTED
Interior Fittings
INTERIOR TRIM TYPE	REPS + SPOTTED "SV"
REAR SEAT	3 SEPARATED REAR SEATS (1 SLIDING)
REAR SEATBELT	REAR 3-POINT 3 INERTIA REEL SEAT BELT
FRONT SEATBELT	PYROTECHNIC SEAT BELT WITHOUT ALARM
CLIMATE (AMBIENT TEMP)	TEMPERATE COUNTRIES
SPEED GRADUATIONS	SPEED GRADUATION IN KM/H
CONSOLE	WITHOUT CONSOLE
DRIVING POSITION	LEFT-HAND DRIVE
ADDITIONAL HEATING	WITHOUT ADDITIONNAL HEATING
DASHBOARD EQUIPMENT	CAPPING V098 + SOLID COLOUR FRONT PANEL
LOUDSPEAKER	MOUNTING 4 LOUDSPEAKERS + 2 TWEETERS
RADIO CONTROLS	REMOTE RADIO CONTROL
SCREENING (BLIND, SIDE SUNBLIND, SUNROOF)	WITHOUT REAR BLIND
DRIVER SEAT ADJUSTMENT	DRIVER’S LUMBAR SUPPORT
FRONT SEAT ARMREST	FITTED WITH ARMREST
COMPACT DISC	WITHOUT COMPACT DISC
SATELLITE NAVIGATION SYSTEM	WITHOUT NAVIGATION SYSTEM
REAR WINDOW LIFT	MAN CTRL REAR WINDOW LIFTER
HEATING ELEMENT	NON HEATED SEAT
FRONT LATERAL AIRBAG	DOUBLE FRONT LATERAL AIRBAG
REAR PASSENGER PROTECTION	W/O RR PASSENGER PROTECTION
ADDITIONAL AIR CONDITIONING	WITHOUT ADDITIONAL AIR CONDITIONING
EXTERIOR REAR VIEW MIRROR (HEATED)	HEATED DOOR MIRROR
AIRBAG DEACTIVATION	MANUAL AIRBAG DEACTIVATION
RADIO RECEIVER	"RD3" RDS COMPACT DISC AUDIO SYSTEM
REFRIGERATION	SINGLE AIR CONDITIONING
CRUISE CONTROL	WITHOUT SPEED CONTROL
LOAD SPACE STORAGE	WITHOUT LOADING RUNNER
OBSTACLE DETECTION SYSTEM	WITHOUT OBSTACLE DETECTOR
TRIM ADAPTATION	WITHOUT MOULDING ADAPTATION
STEERING WHEEL	LEATHER STEERINGWHEEL
FAN	140W AERO 2 SPEED FAN
Electrical
ALTERNATOR	ALTERNATEUR CLASSE 8+
BATTERY	BATTERY L2 400
STARTER MOTOR	STARTER MOTOR CL 3
SPECIAL LIGHTING	WITHOUT PARTICULAR LIGHT
EXT. REARVIEW MIRROR COMP. FUNCTION	EXT MIRROR MANUAL-FOLD BACK
MULTIPLEXING	MULTIPLEXING ASSEMBLY CAN VAN
FRONT FOGLAMP	NO FRONT FOG LIGHTS
Component Manufacturers
BRAKE ASSOCIATED VARIANT	BOSCH ABS 8 0
INJECTION ASSOCIATED VARIANT	MOUNTING MAGNETI MARELLI
Miscellaneous
SPECIAL SPECIFICATION	STANDARD
ATMOSPHERIC CONDITIONS	NORMAL ATMOSPHERE
DRIVING POSITION	LEFT-HAND DRIVE
REFRIGERANT	REFRIGERANT LIQUID R134
EXTERIOR ACCESSORIES	NEUTRAL EXT HANDLES+SIDE MOULDINGS+EXT MIRRORS
SLAVE CONTROL UNIT	BSI COMM 2000

[LedZep]

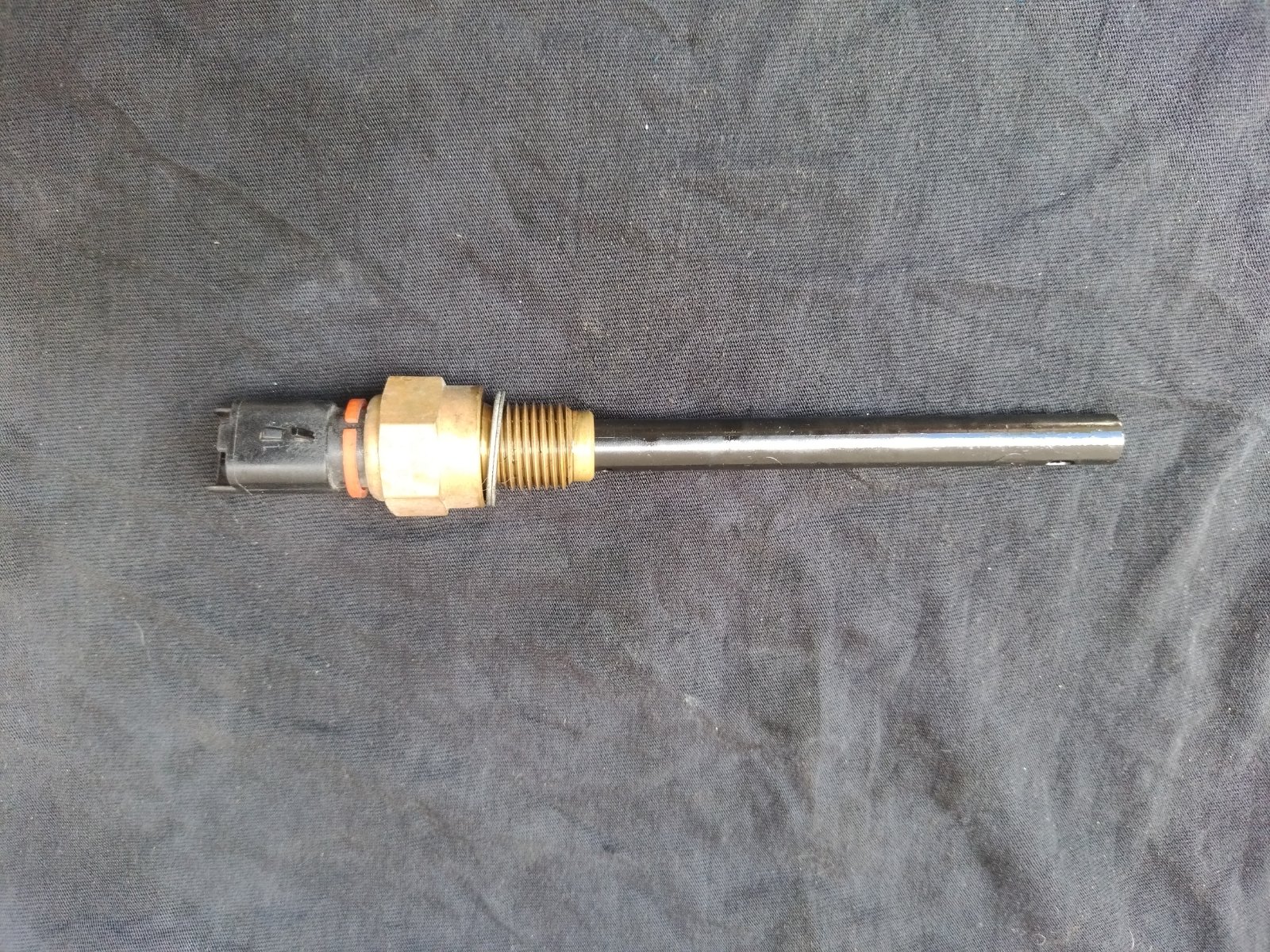

Hi Marc.I'm looking for this part of the photo.I guess it is some kind of oil level-temperature sensor. It is placed and fit above oil sub and close to oil regulator solenoid , oil pressure switch and filter.No s/n on it.VIN VF3**************[VIN obfuscated, can be read by forum staff] . Thanks in advance.

[GiveMeABreak]

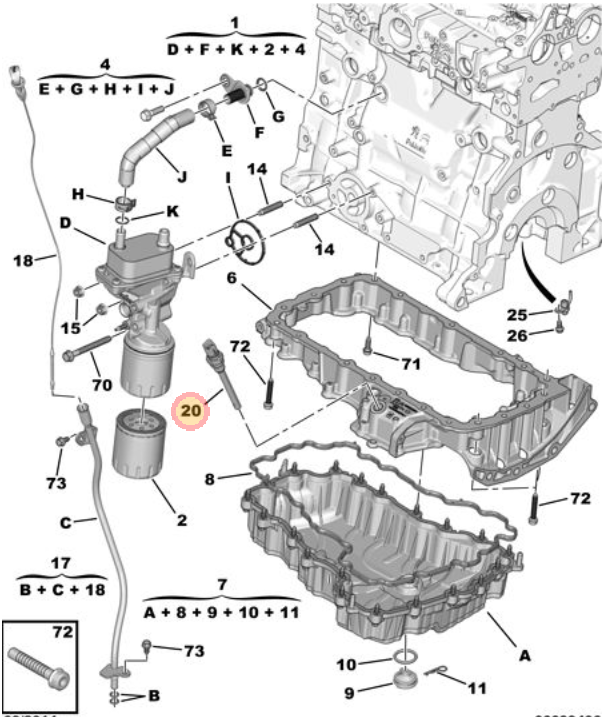

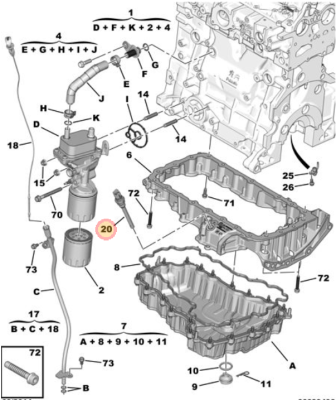

Hi, no problem, this is your oil gauge:

(20) Oil Gauge, part: 9804663580, £25.01 VAT Inc.

[Mathemagic-1970]

Hi,

I'm looking to replace the rear under tray on my Grand C4 Picasso 65 plate 1.6 HDi 120

VIN: VF7**************[VIN obfuscated, can be read by forum staff]

My car has the optional space saver spare wheel.

I'm looking for the plastic cover that goes under the wheel from the rear bumper forward - apologies, I'm not sure of he correct name. In the past my vague memory seems to think I used to unhook the sheet just behind the bumper and lower it down to be able to access the spare wheel and case holding the jack.

Any help on what it is called and a part number very much appreciated.

Thank you in advance for any help.

Tony

[GiveMeABreak]

Hi

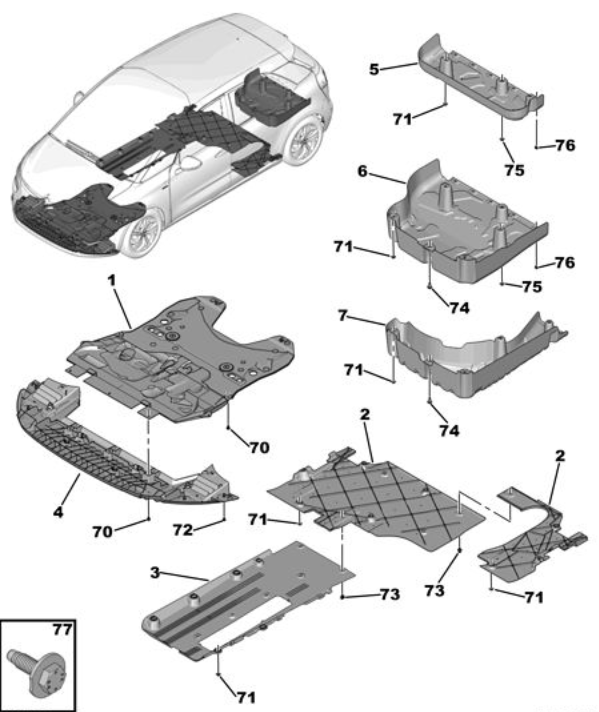

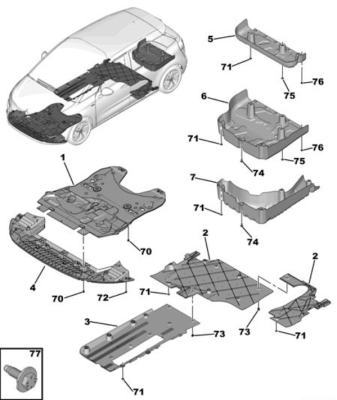

Let me know which item from the following you need a part number and price for, but see my note below first...

Note: You don't have 3, 5, 6 or 7 for this vehicle, in case you thought they were 'missing'. They were never fitted for this specific vehicle.

[Mathemagic-1970]

Thank you for the reply Marc,
I'm now doubting myself. I was convinced that there was an undercover similar to part 70 but for the part of the car from the rear wheels back, but am now not so sure.
I'll have another look when the car is (hopefully) fixed at the end of the week.
Tony

[GiveMeABreak]

Part (70) is just a fixing that secures (1) to (4), Tony, but you should have Items (1), (2) & (4)

[Mathemagic-1970]

Ah, sorry, me reading the diagram incorrectly.
I've previously had to replace the big part - number 1 and thought there was something similar at the rear of the car.

[GiveMeABreak]

No, never fitted when it was built at the factory - may be because of the exhaust / engine / emissions system or other equipment fitted on this vehicle.

[Mathemagic-1970]

Thank you for your help Marc.
Best wishes

[JustADriver]

Hi Marc,
first of all - thank you for your effort. If the technical terms dont make sense please let me know, a translater has been used for it. Now to my issues , a checkup has revealed the following:

• Headlight, left fog light not working

• Suspension, shock absorber of the 2nd (rear) axle on the right is leaking

• Axle / Suspension, front axle wishbone on the left lower side worn out

• Axle / Suspension, front axle wishbone on the right lower side worn out

• Engine / Drive, dust boot (driveshaft) front right torn

• Engine / Drive, dust boot (driveshaft) front left torn

Except maybe the foglight (if its the bulb, or fast to just replace the whole part), I would like to replace all the mentioned parts. I´ve been told, that the wishbone should be just replaced, not fixed, because it will be cheaper than fixing the current ones. I would like to do that.

Its a C5 Exclusive HDi 200 from 2011, VIN: VF7**************[VIN obfuscated, can be read by forum staff]

DAM: 12541

One more thing, if its not too much trouble to ask. Are there aftermarket brands you can recommend? Or in general parts you can recommend in this case?

Appreciate your help!! If there is anything else, please let me know. Thanks!

[GiveMeABreak]

No problem, leave it with me for a few minutes

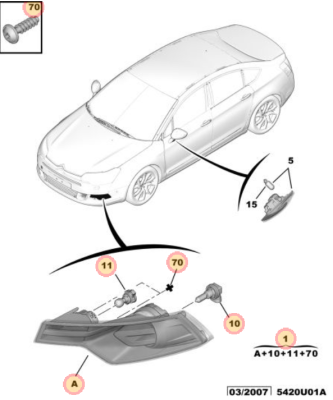

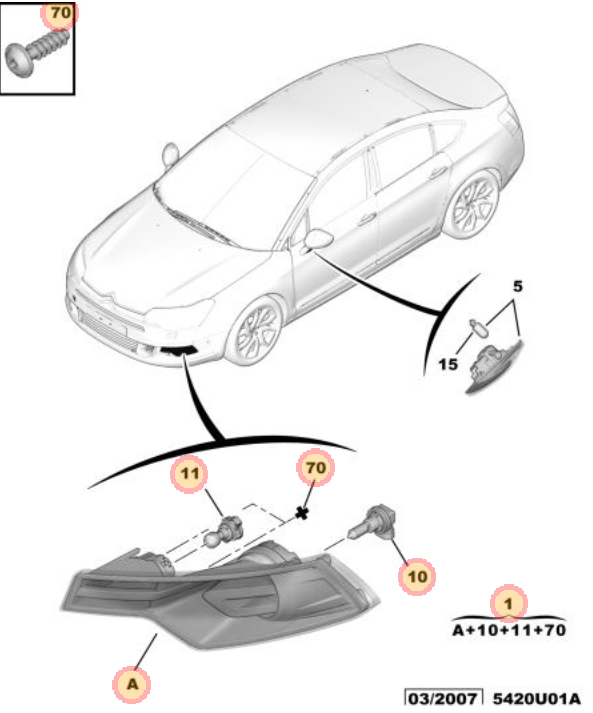

The fog lamp bulb is shown so assume you need a bulb if it's not working?

Fog

(10) Font Fob Light Bulb, H8 12V 35W, Part 6216E8, £46.73
Cheaper bulb, part: 1637237980, £18.85

However, if water has gotten into the light unit and it's misting up and you require the compete unit (which includes the bulbs for the indicator and the fog lamp), then:

(1) Complete Fog Lamp, (Left), part: 6208J4, £197.56

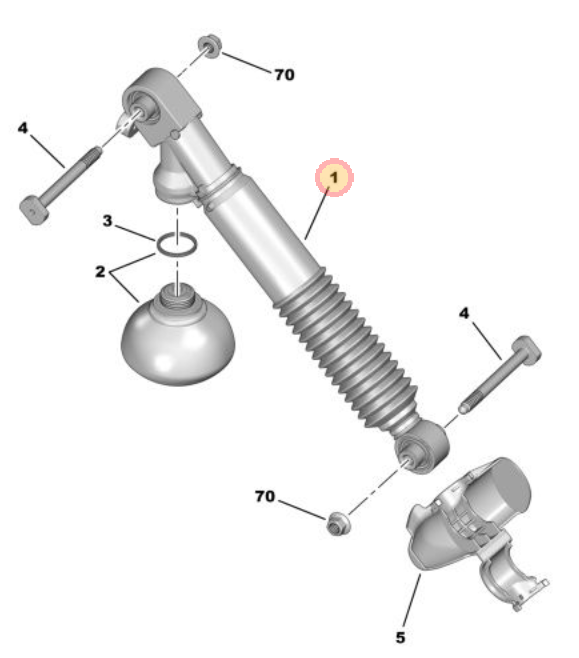

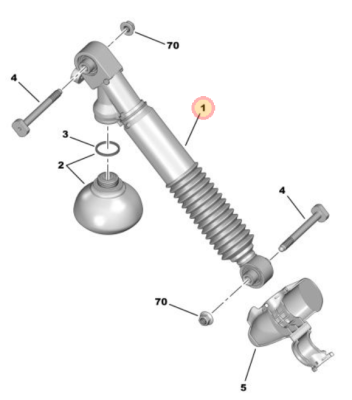

Suspension

(1) Rear Suspension Strut, part: 527299, £236.58

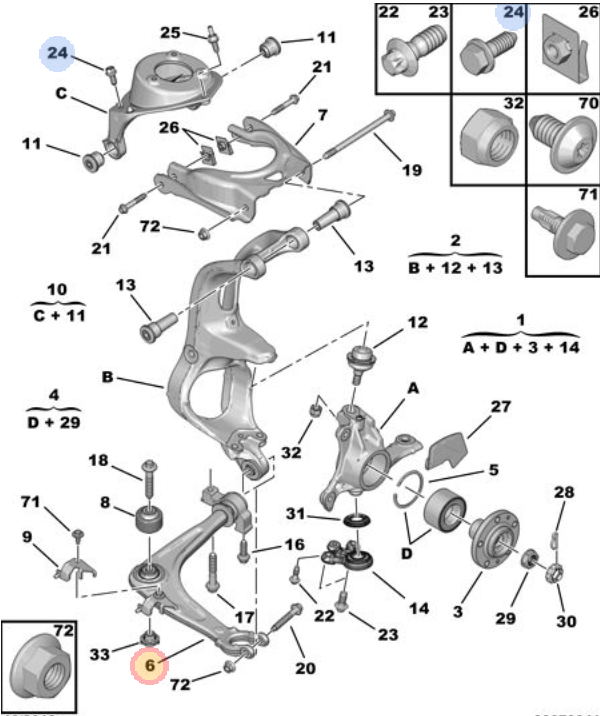

Front Axle

(6) OEM Citroen Original Wishbone (Left), part: 9663980880, £614.28
Citroen Cheaper Alternative, part: 1682733380, £380.03

OEM Citroen Original Wishbone (Right), part: 9663980980, £579.56
Citroen Cheaper Part: 1682733080, £339.68

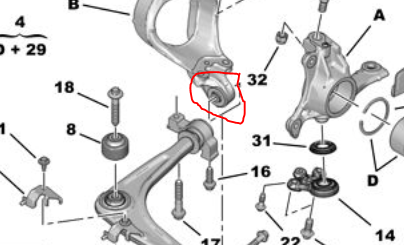

Note: Be aware that if you get a clunking when driving off or braking, this can be the bush that I have highlighted in red that is in the Hub Bearing Assembly, which is not sold separately. You can buy these and replace them independently from elsewhere.

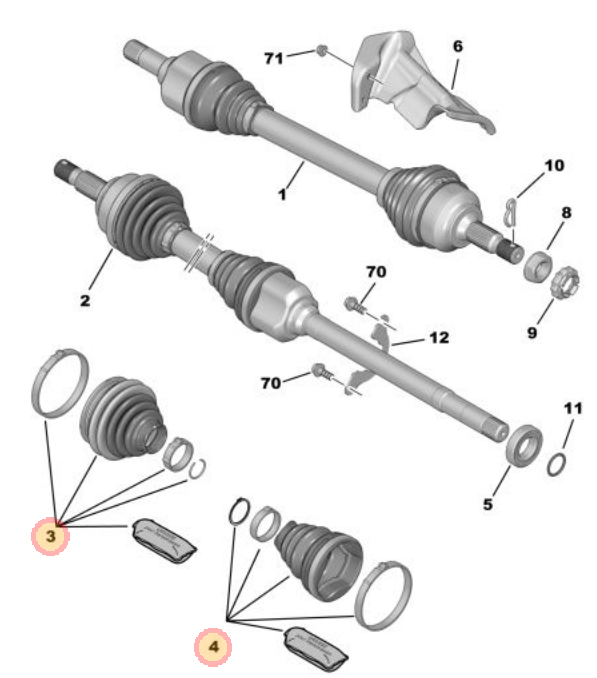

Driveshaft Boots

(3) Driveshaft Gaiter Kit, (Wheel Side), part: 3293C8, £79.61
Driveshaft Gaiter Kit (Axle Side), part: 3287C9, £50.33

These are for official Citroen parts, but now that you have the correct part numbers, you can search on these to find alternative suppliers.

[JustADriver]

Good evening and thanks a lot for the effort Marc!

I do have an additional question regarding the two wishbones. During some research I came accross the part description 3520.W2 & 3521.S5 being mentioned as made of aluminum and then also 3520.X6 & 3521.T7 for being made of steel. Can I use both for my mentioned car? Is there a preferred one?

Thanks
Rob
