Citroen, DS Automobiles and Peugeot Official Part Number Requests

[GiveMeABreak]

I would be, but there's been so many posts, I can't even remember what part it was now! Underbody Protection?

[Huskyxantia]

Hi Marc , please could i have part numbers for a Clutch kit for c3 picasso VF7**************[VIN obfuscated, can be read by forum staff] with solid flywheel if possible. Thank you.

[GiveMeABreak]

Flywheel

(10) New OEM Flywheel, part: 0532T2, £665.74

Clutch

(1) (Includes A, B & 3)Pro OEM Clutch Kit, part: 1611273080, £462.26
(1) Standard Exchange Clutch Kit, part: 2051Z1, £251.16
(4) Declutch Fork Ball Joint, part: 212050, £6.76
(5) Declutch Fork, part: 211766, £62.86
(6) Fork Ball Joint Shell, part: 9676898980, £49.81

Edit: Now updated with Prices.

[Huskyxantia]

Thanks Marc , i will check back later .

[dylan26__]

I would be, but there's been so many posts, I can't even remember what part it was now! Underbody Protection?

Was the air conditioning lines from the compressor to the condenser

[MixerFistit]

Hope this is the right place to ask.

Is it possible to find out what my paint code is from my VIN?
The sticker is too badly damaged unfortunately.
VF7**************[VIN obfuscated, can be read by forum staff]

[cncjeff1]

Once again into the breach.
2016 Berlingo, VIN VF7**************[VIN obfuscated, can be read by forum staff]
Please provide part numbers for AC coil (in front of the radiator) and canister dryer

[GiveMeABreak]

Hope this is the right place to ask.

Is it possible to find out what my paint code is from my VIN?
The sticker is too badly damaged unfortunately.
VF7**************[VIN obfuscated, can be read by forum staff]

No problem:

KMP - PAINT RHODES BLUE

[GiveMeABreak]

Once again into the breach.
2016 Berlingo, VIN VF7**************[VIN obfuscated, can be read by forum staff]
Please provide part numbers for AC coil (in front of the radiator) and canister dryer

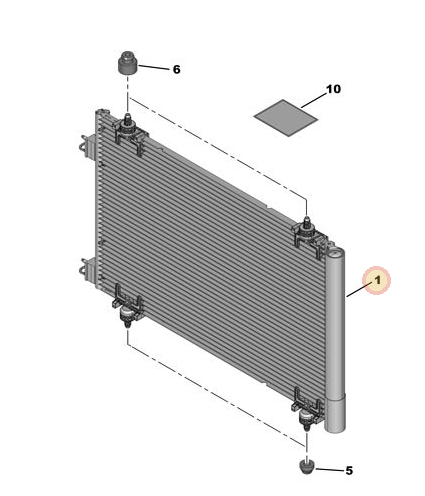

I think you are referring to the Condenser. The drier is incorporated into the condenser on the right side.

(1) OEM Condenser, part: 6455GH, £530.64
Cheaper Citroen Alternative Condenser, part: 1610161980, £157.20

[Rhothgar]

Hi Marc.

Trust you’re well.

Please could I have size for the auxiliary belt for X435 JGJ? I am seeing two different sizes when doing a general internet search.

My car has air conditioning.

Also, is there only one belt tensioner for the auxiliary belt or are there other serviceable wheels other than than crankshaft pulley?

Could I have those part numbers please?

[GiveMeABreak]

Hi roger, fine thanks. So the type of belt you need will depend on the type of compressor fitted to the vehicle. Because there were 2 possible types of A/C compressor fitted (Sanden or Delphi) and these used different sized belts. I will list both the types with the OEM quality belt alongside their cheaper alternatives, so you have the choice of OEM or alternatives, within the Sanden or Delphi option.

So basically the length of belt depends on the type of compressor fitted.

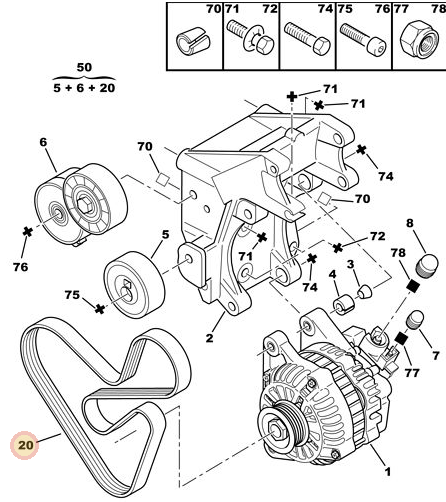

(20) Alternator Belts:

Sanden OEM belt, (K6 - LE 1736), part: 5750YF, £54.85
PSA Cheaper Alternative for Sanden Comp. (Poly V), part: 1606353780, £19.39

Delphi OEM Belt (K6 - LE 1750), part: 5750YG, £54.85
PSA Cheaper Alternative for Delphi (Poly V), part: 1606353980, £25.94

[Rhothgar]

Good to hear you’re keeping well.

14mm difference! That’s nothing especially given the serpentine route. That’s the heads-up on the fact there are two different condensers too.

The price of the alternative is very reasonable considering its length. I’ll see if I can get a nice Hutchinson one from my bearing suppliers. If I had the time and inclination I’d probably see if I could change the tensioner bearings too. I guess someone must have tried it. It wouldn’t be easy that’s for sure.

The length I was seeing as 1660 as the alternative. 90mm difference would be huge and I had problems finding a suitable belt for the S1 some time back hence not wanting to go through that rigamarole again.

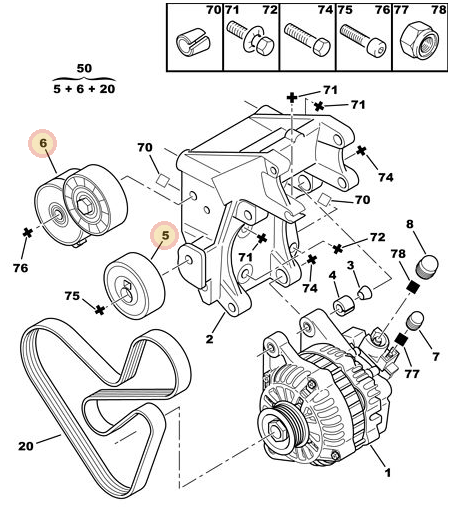

Thanks too for posting the diagram as I can see also that there is a roller no. 5 which I couldn’t remember either. If you have those part numbers too it would be greatly appreciated when you have a moment.

[GiveMeABreak]

(5) Alternator Tensioner Roller, part: 1613837480, £190.87
(6) Alternator Tensioner Roller, part: 1613839980, £180.44

[Huskyxantia]

Hi Marc, my vin 308cc VF3**************[VIN obfuscated, can be read by forum staff] Getting very odd results trying to find the lower wish bones what im finding dont look like whats on the car , any chance of the part numbers for both sides, many thanks.

[GiveMeABreak]

(2) Front Wishbones

OEM Left, part: 1643188780, £226.40
OEM Right, part: 1643189180, £222.38

PSA Cheaper Left, part: 1610938080, £114.08
PSA Cheaper Right, part: 1610938180, £114.08
